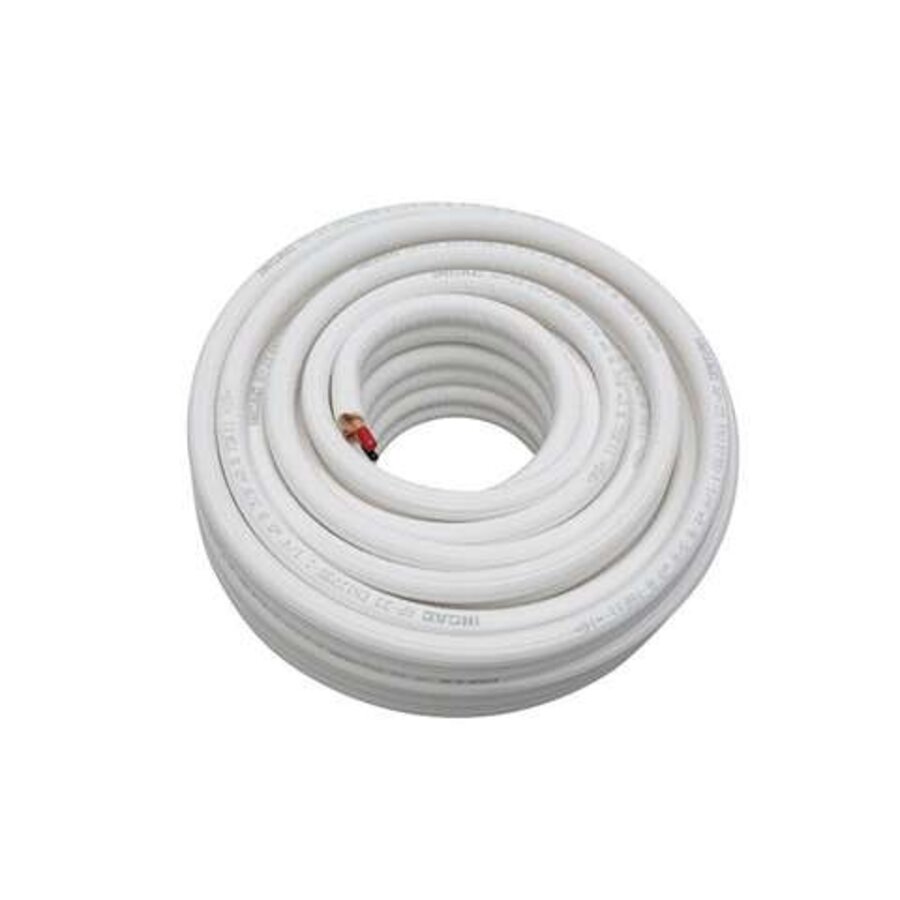

Insulated copper pipe 6 + 16 mm – 20 meter roll
This high-quality insulated copper piping is a practical solution for professional applications in refrigeration, air conditioning, and climate control. The set consists of two copper pipes with an outer diameter of 6 mm and 16 mm and is supplied on a 20-meter roll. This makes the piping suitable for a wide range of installation, maintenance, and assembly work.
The pipes are manufactured from high-quality, flexible copper and have a constant wall thickness of 1 mm. This ensures a robust and reliable pipe construction, while the copper remains easy to work with during installation. The combination of 6 mm and 16 mm makes this set suitable for various professional refrigeration systems, depending on the specifications of the installation.
Both pipes are equipped with 10 mm insulation. The insulation features a heat-resistant inner layer that can withstand temperatures up to 110 °C. The insulated design helps limit heat transfer and contributes to reducing condensation. This makes the pipe suitable for applications where reliable thermal insulation is desired.
The insulation is not UV-resistant. When installing in locations where the pipe is exposed to direct sunlight or other UV radiation, the insulation must therefore be additionally protected. Suitable adhesive tape or an appropriate mounting channel can be used for this purpose. This helps protect the insulation and contributes to a longer service life.
The copper piping complies with EN 13501-1 and has fire class BL-s1-d0. Additionally, the piping is suitable for all types of refrigerants, depending on the operating pressure for which the relevant installation and piping are applied. As a result, the copper piping can be used within various professional refrigeration and air conditioning systems.
Each roll has a length of 20 meters and is individually packed in a high-quality box. This makes the piping easy to store and protects the product during transport. Thanks to the combination of flexible copper, a constant wall thickness of 1 mm, and 10 mm insulation, this copper piping is a practical choice for professional installers in the hospitality, refrigeration, and climate control industries.
Specifications:
- Type: insulated copper pipe
- Pipe sizes: 6 mm + 16 mm
- Length: 20 meters per roll
- Outer diameter pipe 1: 6.00 mm
- Outer diameter pipe 2: 16.00 mm
- Pipe wall thickness 1: 1.0 mm
- Pipe wall thickness 2: 1.0 mm
- Wall thickness: constant 1 mm
- Pipe insulation thickness 1: 10 mm
- Pipe insulation thickness 2: 10 mm
- Pipe material: high-quality, flexible copper
- Heat-resistant inner layer: up to 110 °C
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- UV resistance of insulation: not UV-resistant
- UV protection: use adhesive tape or mounting channels when exposed to UV
- Suitable for: all types of refrigerants, depending on the operating pressure
- Packaging: 20 meters per roll
- Packaging unit: each roll individually packed in a box
- Application: refrigeration technology, air conditioning and climate control
- Features: flexible copper and constant wall thickness
- Insulation: 10 mm with heat-resistant inner layer
- Condensation limitation: through insulated design
