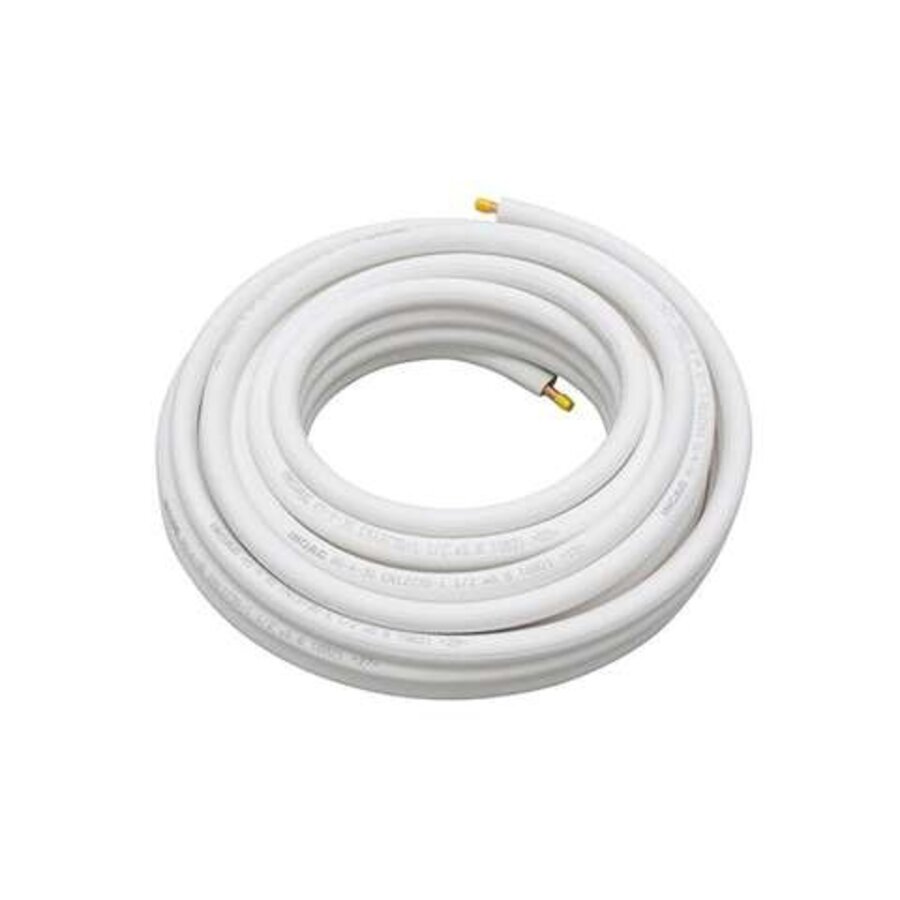

Insulated copper pipe 5/8" – 30 meter roll
This high-quality insulated copper pipe 5/8" is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 15.88 mm and is supplied on a 30-meter roll. Thanks to this generous length, the pipe is suitable for various installation, maintenance, and assembly tasks within professional refrigeration systems.
The pipe is manufactured from high-quality, flexible copper and features a constant wall thickness of 1.0 mm. The flexible copper makes the pipe easy to work with during installation and ensures that various piping routes can be laid efficiently. The combination of a sturdy copper pipe and high-quality insulation makes this version suitable for various professional applications within refrigeration and air conditioning.
The copper pipe is fitted with 10 mm thick PE insulation all around. The insulation consists of two layers of resilient, high-quality PE sheath and features a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during transport, storage, and installation. Despite this sturdy exterior, the pipe remains highly flexible. The insulation is designed to bend without easily forming creases. As a result, the insulating effect is maintained during and after the installation of the pipe.
The inner layer of the insulation is heat-resistant up to 110 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material offers a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of professional air conditioning and refrigeration systems.
The copper cable complies with EN 13501-1 and has fire class BL-s1-d0. The yellow protective cap ensures easy identification of this cable during storage and installation. Each roll is supplied in an individual box, allowing for practical storage and ensuring the product remains protected during transport.
This 30-meter insulated 5/8" copper pipe is a suitable choice for professional installers, technical services, and companies active in air conditioning, refrigeration, and climate control. The combination of flexible copper, a constant wall thickness of 1.0 mm, 10 mm PE insulation, and a heat-resistant inner layer makes this pipe a practical solution for a wide range of professional installation projects.
Specifications:
- Type: insulated copper pipe
- Pipe size: 5/8"
- Length: 30 meters per roll
- Outer diameter: 15.88 mm
- Wall thickness: 1.0 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 110 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- Protective cap: yellow
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-1133 (AS-5-30)
