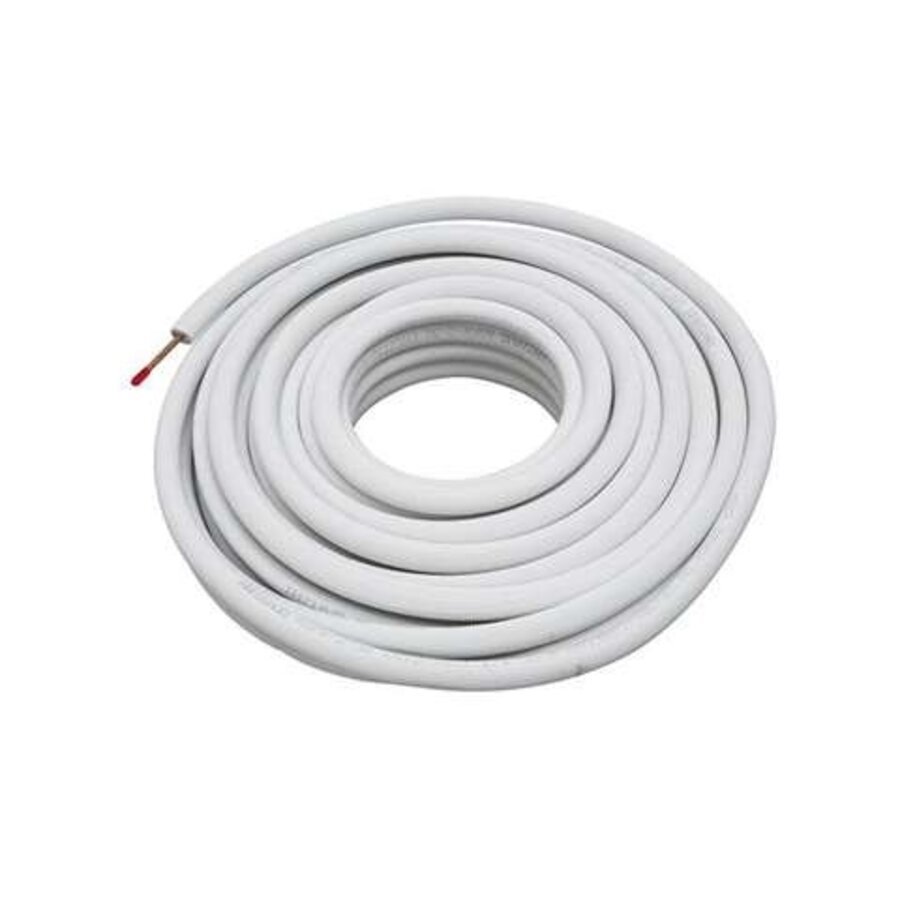

Insulated copper pipe 1/2" – 50 meter roll
This high-quality insulated copper pipe 1/2" is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 12.70 mm and is supplied on a 50-meter roll. The generous length makes this pipe suitable for longer piping runs and various professional installation, maintenance, and assembly tasks.
The pipe is manufactured from high-quality, flexible copper and features a constant wall thickness of 0.8 mm. Thanks to the flexible copper, the pipe is easy to work with during installation and can be efficiently installed along the desired piping route. The combination of high-quality copper and a robust insulation layer makes this version suitable for various professional refrigeration installations.
Surrounding the copper pipe is 10 mm thick PE insulation. This insulation consists of two layers of resilient, high-quality PE sheath and has a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during storage, transport, and installation. Despite the sturdy exterior, the copper pipe remains highly flexible. The insulation is designed to bend without easily forming creases, ensuring that the insulating effect is maintained during installation.
The inner layer of the insulation is heat-resistant up to 120 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material offers a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of professional air conditioning and refrigeration systems.
The copper cable complies with EN 12735 and has fire class BL-s1-d0. The blue protective cap makes the cable easily recognizable during storage and installation. Each roll is individually packed in a box, ensuring practical storage and protection during transport.
With a length of 50 meters, this insulated 1/2" copper pipe is suitable for installers and companies requiring longer piping runs. The combination of flexible copper, a constant wall thickness of 0.8 mm, 10 mm PE insulation, and a heat-resistant inner layer makes this pipe a practical choice for professional applications in the hospitality, refrigeration, and air conditioning industries.
Specifications:
- Type: insulated copper pipe
- Pipe size: 1/2"
- Length: 50 meters per roll
- Outer diameter: 12.70 mm
- Wall thickness: 0.8 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 120 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 12735
- Protective cap: blue
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-2125
