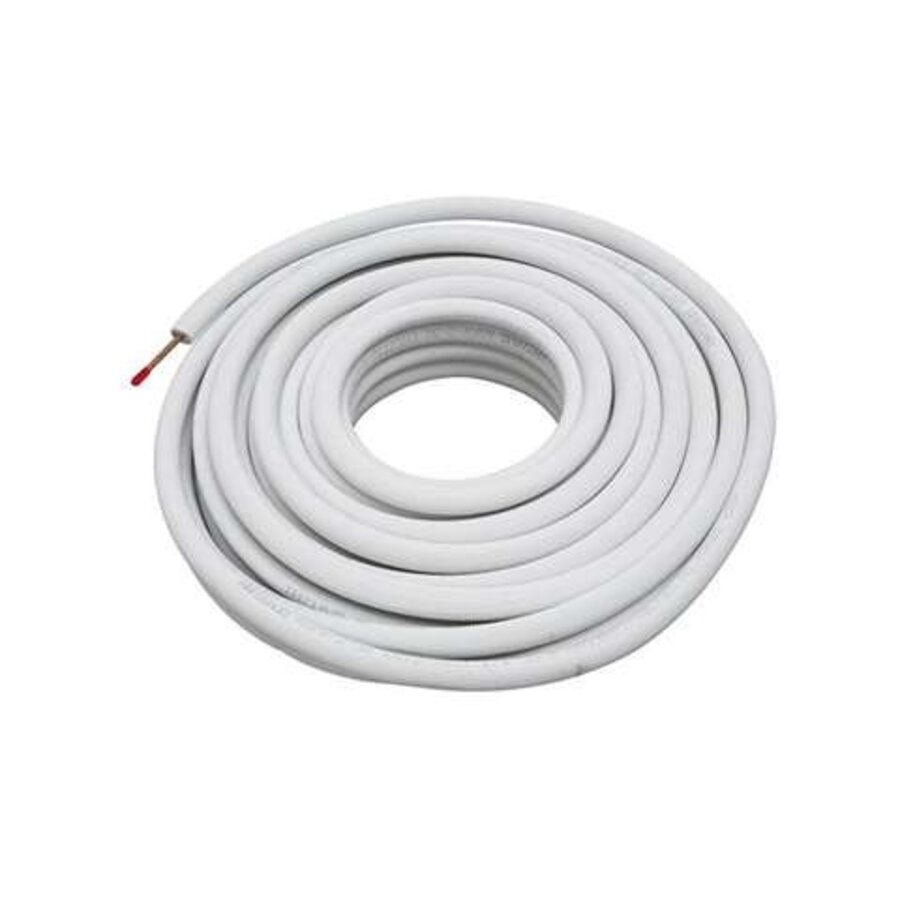

Insulated copper pipe 3/8" – 50 meter roll
This high-quality 3/8" insulated copper pipe is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 9.52 mm and is supplied on a 50-meter roll. The extra-long roll is ideal for longer piping runs and various professional installation, maintenance, and assembly tasks.
The pipe is manufactured from high-quality, flexible copper and features a constant wall thickness of 0.8 mm. Thanks to the flexible copper, the pipe is easy to work with during installation and can be efficiently installed along the desired piping route. The combination of a sturdy copper pipe and high-quality insulation makes this version suitable for various professional refrigeration installations.
The copper pipe is fitted with 9 mm thick PE insulation. The insulation consists of two layers of resilient, high-quality PE sheath and features a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during storage, transport, and installation. Despite the sturdy exterior, the pipe remains highly flexible. The insulation is designed to bend without easily forming creases, ensuring that the insulating effect is maintained during installation.
The inner layer of the insulation is heat-resistant up to 120 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material possesses a high insulation value. This limits unwanted heat transfer and contributes to the efficient operation of professional air conditioning and refrigeration systems.
The copper cable complies with EN 12735 and has fire class BL-s1-d0. The cable is fitted with a red protective cap, making the version easily recognizable during storage and installation. Each roll is individually packed in a box, ensuring the product can be stored and transported practically and protected.
With a length of 50 meters, this insulated 3/8" copper pipe offers ample piping material for professional installation projects. The combination of high-quality flexible copper, consistent wall thickness, 9 mm PE insulation, and a heat-resistant inner layer makes this pipe a practical choice for installers and companies in the hospitality, refrigeration, and air conditioning industries.
Specifications:
- Type: insulated copper pipe
- Pipe size: 3/8"
- Length: 50 meters per roll
- Outer diameter: 9.52 mm
- Wall thickness: 0.8 mm
- Insulation thickness: 9 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 120 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 12735
- Protective cap: red
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-1115
