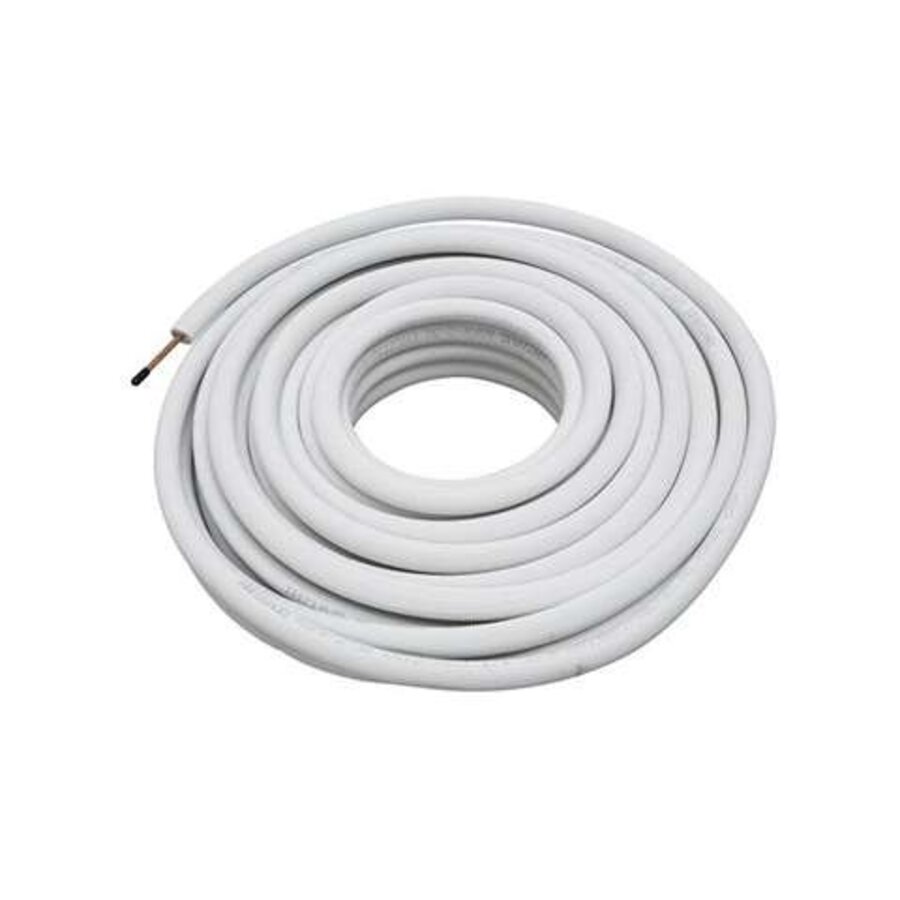

Insulated copper pipe 1/4" – 50 meter roll
This high-quality insulated 1/4" copper pipe is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 6.35 mm and is supplied on a roll of no less than 50 meters. This makes the pipe suitable for longer piping runs and various professional installation and assembly tasks.
The piping is made of high-quality, flexible copper and features a constant wall thickness of 0.8 mm. The flexible copper makes the piping easy to work with during installation and allows for neat routing. The combination of sturdy copper piping and high-quality insulation makes this version suitable for a wide range of professional refrigeration installations.
Surrounding the copper pipe is 9 mm thick PE insulation. This insulation consists of two layers of resilient, high-quality PE sheath and has a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps prevent condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during storage, transport, and installation. Despite this sturdy exterior, the pipe remains highly flexible. The insulation is designed to bend without easily forming creases, ensuring that the insulating effect is maintained during and after installation.
The heat-resistant inner layer can withstand temperatures up to 120 °C. Additionally, the insulation material has a maximum thermal conductivity of 0.043 W/mK. As a result, the insulation offers a high thermal insulation value and helps limit unwanted heat transfer.
The copper cable complies with EN 12735 and has fire class BL-s1-d0. The cable is supplied with a black protective cap and is packed as one roll per box. The packaging ensures practical storage and protection of the cable during transport and processing.
With a length of 50 meters, this insulated 1/4" copper pipe is particularly suitable for installers and companies requiring longer piping runs. The pipe can be used within professional air conditioning and refrigeration systems, provided that the correct technical specifications of the installation are always observed.
Specifications:
- Type: insulated copper pipe
- Pipe size: 1/4"
- Length: 50 meters per roll
- Outer diameter: 6.35 mm
- Wall thickness: 0.8 mm
- Insulation thickness: 9 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 120 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 12735
- Protective cap: black
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-1105
