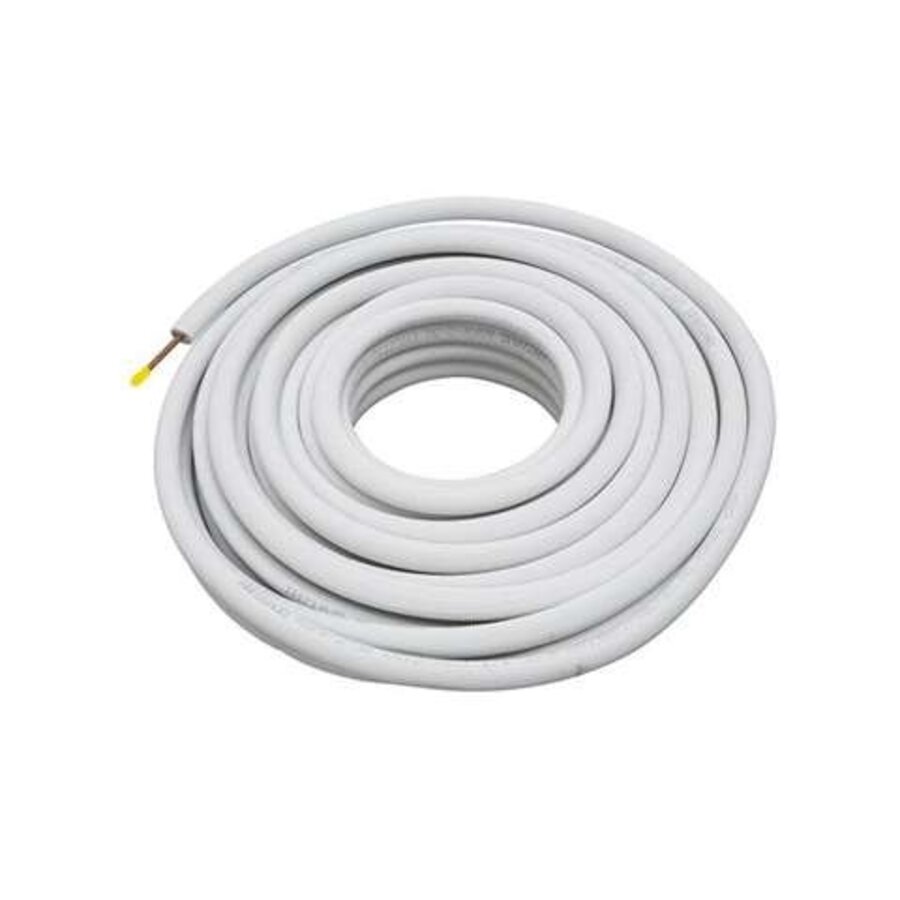

Insulated copper pipe 5/8" – 50 meter roll
This high-quality insulated copper pipe 5/8" is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 15.88 mm and is supplied on a 50-meter roll. The generous length makes this pipe particularly suitable for longer piping runs and various professional installation, maintenance, and assembly tasks.
The pipe is manufactured from high-quality, flexible copper and has a constant wall thickness of 1.0 mm. Thanks to its flexible properties, the copper pipe is easy to work with during installation and can be efficiently installed along the desired piping route. This makes the pipe suitable for professional installations where a reliable and practical refrigeration pipe is desired.
Surrounding the copper pipe is 10 mm thick PE insulation. This insulation consists of two layers of resilient, high-quality PE sheath and features a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during storage, transport, and installation. Despite this sturdy outer layer, the pipe remains highly flexible. The insulation is designed to bend without easily forming creases. As a result, the insulating effect is maintained as effectively as possible during installation.
The heat-resistant inner layer is suitable for temperatures up to 110 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material offers a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of air conditioning and refrigeration systems.
The copper cable complies with EN 13501-1 and has fire class BL-s1-d0. The yellow protective cap makes the cable easily recognizable during storage and installation. Each roll is supplied in an individual box, allowing for practical storage and ensuring the product remains protected during transport.
With a length of 50 meters, this insulated 5/8" copper pipe offers ample piping material for professional projects. The combination of high-quality flexible copper, a wall thickness of 1.0 mm, 10 mm PE insulation, and a heat-resistant inner layer makes this pipe a practical choice for installers and companies in the hospitality, air conditioning, and refrigeration industries.
Specifications:
- Type: insulated copper pipe
- Pipe size: 5/8"
- Length: 50 meters per roll
- Outer diameter: 15.88 mm
- Wall thickness: 1.0 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 110 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- Protective cap: yellow
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-1135
