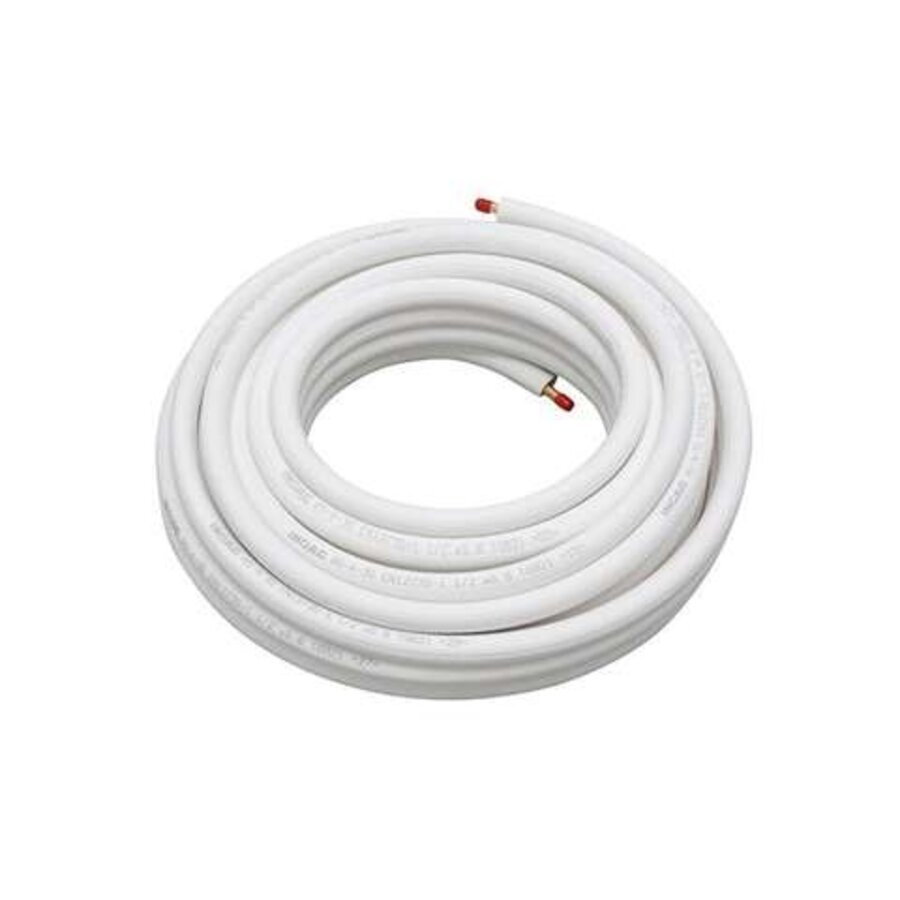

Insulated copper pipe 3/8" – 30 meter roll
This high-quality 3/8" insulated copper pipe is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 9.52 mm and is supplied on a 30-meter roll. Thanks to its generous length, this pipe is suitable for various installation, maintenance, and assembly tasks within professional refrigeration systems.
The pipe is manufactured from high-quality, flexible copper and features a constant wall thickness of 0.8 mm. The flexible copper makes the pipe easy to work with during installation and ensures that various piping routes can be laid efficiently. The combination of a reliable copper pipe and high-quality insulation makes this version suitable for various applications within refrigeration and air conditioning.
The copper pipe is fitted all around with 9 mm thick PE insulation. This insulation consists of two layers of resilient, high-quality PE sheath and features a closed cell structure on both the inside and outside. This results in a high insulation value and prevents condensation from forming around the pipe.
On the outside, the insulation features a hard, white outer wall. This outer layer offers extra protection during transport, storage, and installation. Despite the sturdy outer wall, the pipe remains highly flexible. The insulation has been developed to bend without easily forming creases, ensuring that the insulating effect is maintained during installation.
The inner layer of the insulation is heat-resistant up to 110 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material offers a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of cooling and air conditioning systems.
The copper cable complies with EN 13501-1 and has fire class BL-s1-d0. The cable is fitted with a red protective cap, making the product easily recognizable during storage and installation. Each roll is supplied in an individual box, ensuring practical and protected packaging during transport.
This insulated 3/8" copper pipe is therefore a suitable choice for professional installers, hospitality businesses, and technical service providers working with air conditioning, refrigeration, and climate control systems. The combination of flexible copper, 9 mm high-quality PE insulation, and a length of 30 meters offers a practical solution for a wide range of professional installation projects.
Specifications:
- Type: insulated copper pipe
- Pipe size: 3/8"
- Length: 30 meters per roll
- Outer diameter: 9.52 mm
- Wall thickness: 0.8 mm
- Insulation thickness: 9 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 110 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- Protective cap: red
- Packaging: 1 roll per box
- Flexibility: supple and easy to bend
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
