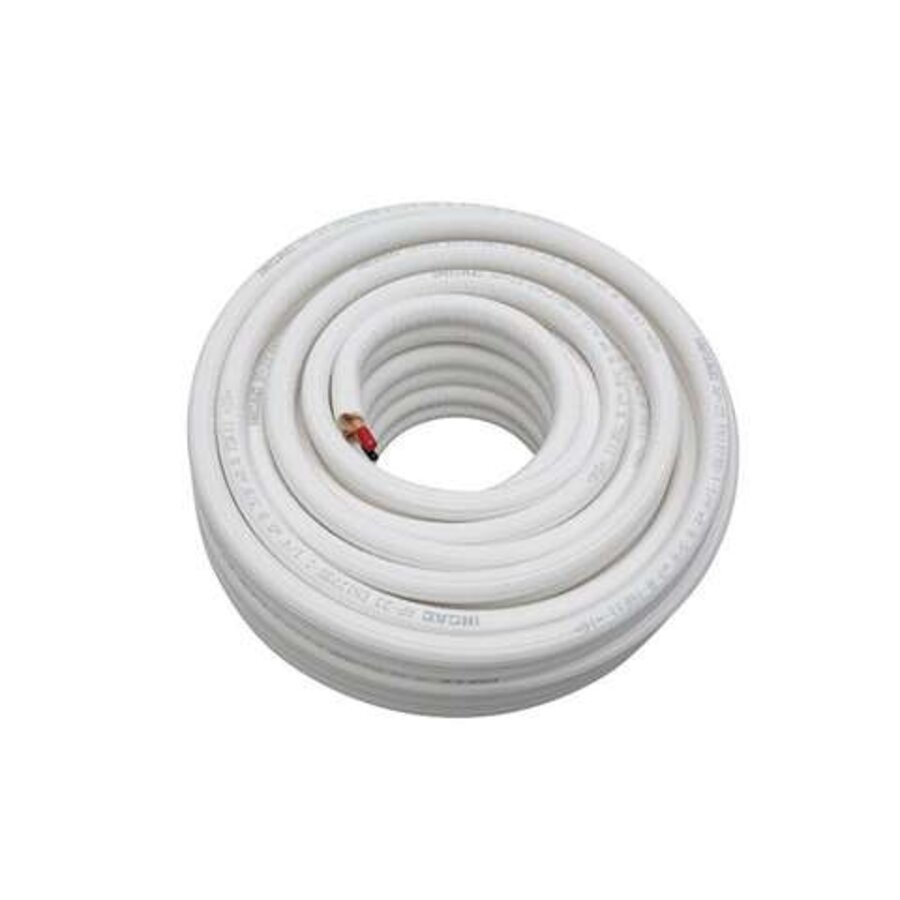

Insulated copper pipe 1/4" + 3/8" – 20 meter roll

This high-quality insulated copper piping is a practical solution for professional installations of air conditioning and refrigeration equipment. The set consists of 1/4" and 3/8" copper piping with a length of 20 meters, making it suitable for a wide range of installation and assembly work in the hospitality industry, commercial buildings, and professional climate control.

The copper pipes are manufactured from flexible copper with a constant wall thickness of 0.8 mm. This makes the pipe easy to handle and bend during installation. The high-quality insulation, with a thickness of 9 mm per pipe, helps limit heat transfer and condensation. Thanks to the closed cell structure of the inner and outer walls, the insulation value is maintained for a long time.

The pipe is equipped with a sturdy, resilient PE jacket consisting of two layers. The inner layer is heat-resistant up to 110 °C, while the hard outer wall provides extra protection during transport, installation, and use. The insulation is designed so that the pipe can be bent without easily developing creases or damage to the insulation material.

With a maximum thermal conductivity of 0.043 W/mK, the insulation offers good thermal protection. This contributes to the efficient operation of connected cooling and air conditioning systems and helps prevent unwanted condensation. Additionally, the piping complies with EN 13501-1 and has fire class BL-s1-d0.

The combination of flexible copper, durable insulation, and a protective outer wall makes this insulated copper cable a reliable choice for professional installers. The black and red protective caps make the different cables easily recognizable during installation.

Specifications:

• Type: insulated copper pipe
• Pipe sizes: 1/4" + 3/8"
• Length: 20 meters per roll
• Pipe outer diameter 1: 6.35 mm
• Pipe outer diameter 2: 9.52 mm
• Pipe wall thickness 1: 0.8 mm
• Pipe wall thickness 2: 0.8 mm
• Insulation thickness: 9 mm per pipe
• Pipe material: high-quality, flexible copper
• Insulation material: high-quality PE sheath
• Insulation structure: 2 layers
• Inner wall: closed cell structure
• Outer wall: closed cell structure with hard protective layer
• Heat-resistant inner layer: up to 110 °C
• Thermal conductivity: maximum 0.043 W/mK
• Fire class: BL-s1-d0
• Standard: EN 13501-1
• Protective caps: black + red
• Packaging: 1 roll per box
• Properties: flexible, easily bendable and resistant to creasing in the insulation
• Application: air conditioning, refrigeration technology and professional climate control systems
• Condensation: insulation designed for condensation-free application
