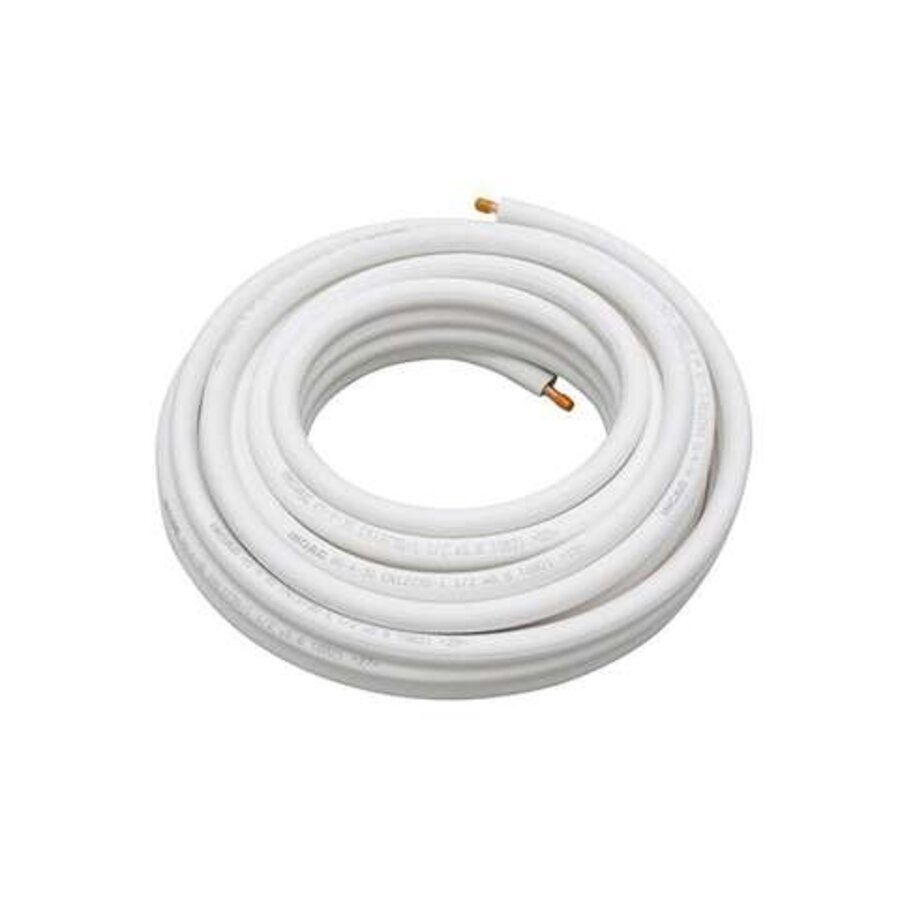

Insulated copper pipe 7/8" – 20 meter roll
This high-quality insulated copper pipe 7/8" is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 22.22 mm and is supplied on a 20-meter roll. Thanks to this length, the pipe is suitable for a wide range of installation, maintenance, and assembly work within professional refrigeration and air conditioning systems.
The pipe is manufactured from high-quality, flexible copper and has a constant wall thickness of 1.0 mm. Thanks to its flexible properties, the pipe is easy to work with during installation and can be efficiently installed along the desired piping route. This makes the copper pipe suitable for professional installations where a reliable and practical piping solution is desired.
10 mm thick PE insulation surrounds the copper pipe. The insulation consists of two layers of resilient, high-quality PE sheath and features a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during transport, storage, and installation. Despite the sturdy exterior, the copper piping remains easy to work with. The insulation is designed to bend without easily forming creases, ensuring that the insulating properties are maintained during installation.
The inner layer of the insulation is heat-resistant up to 110 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation material has a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of professional air conditioning and refrigeration systems.
The copper cable complies with EN 13501-1 and has fire class BL-s1-d0. The orange protective cap makes the cable easily recognizable during storage and installation. Each roll is supplied in an individual box, allowing for practical storage and ensuring the product remains protected during transport.
This 20-meter insulated 7/8" copper pipe is a suitable choice for professional installers, technical services, and companies in the hospitality, air conditioning, and refrigeration industries. The combination of high-quality flexible copper, a constant wall thickness of 1.0 mm, and 10 mm PE insulation makes this pipe a practical solution for various professional installation projects.
Specifications:
- Type: insulated copper pipe
- Pipe size: 7/8"
- Length: 20 meters per roll
- Outer diameter: 22.22 mm
- Wall thickness: 1.0 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 110 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- Protective cap: orange
- Packaging: 1 roll per box
- Flexibility: flexible and easy to work with
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
- Replaces: CIN-1152
