Specifications

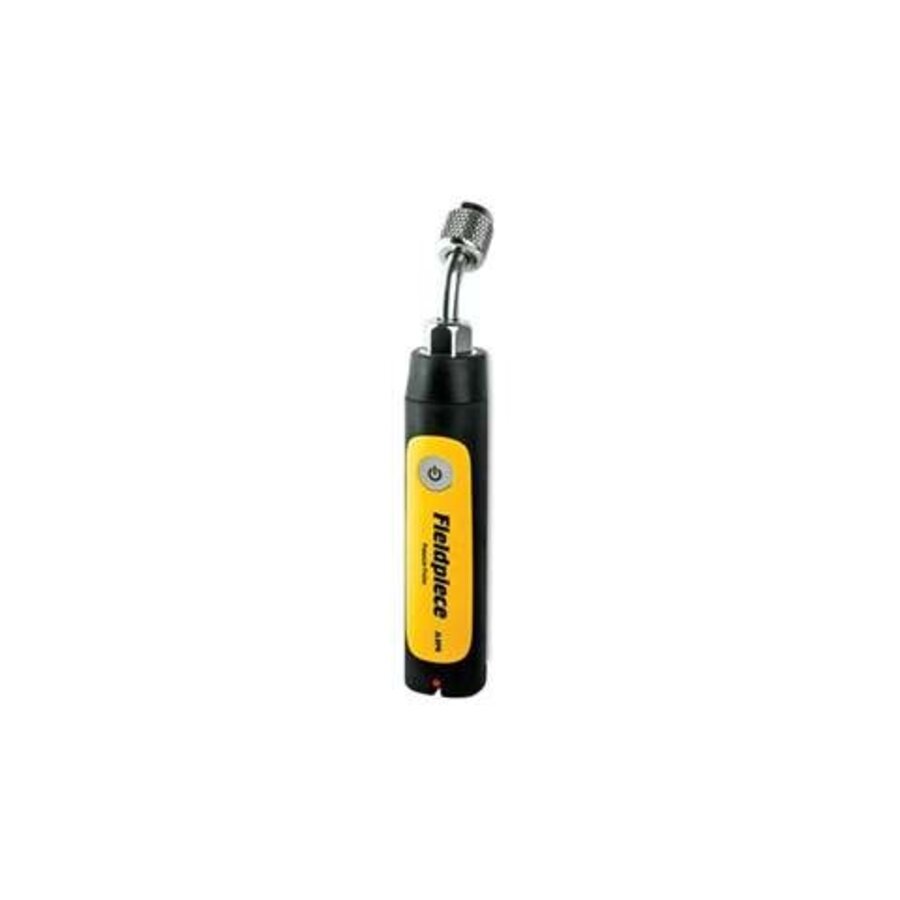

• Product type: Wireless pressure sensor

• Type number: FPI-9806-000

• OEM model: JL3PR

• Brand: Fieldpiece Instruments

• Sensor type: Relative pressure

• Measurement range: 29 inHgV vacuum to 580 psi (0–4000 kPa overpressure)

• Measuring range in bar: Approximately -0.98 to 40 bar

• Accuracy under vacuum: ±0.2 inHgV or ±1 cmHgV

• Accuracy from 0 to 1378 kPa: ±7 kPa

• Accuracy from 1378 to 4000 kPa: ±14 kPa

• Maximum overload pressure: 5500 kPa (800 psi)

• Connection: Angled connection with 1/4-inch NPT female thread

• Wireless connection: BLE-compatible, 2.4 GHz

• Wireless range: Up to 305 meters in line of sight

• Compatibility: Devices with BLE 4.0, iOS 7.0 or higher , or Android 5.0 or higher

• Battery type: 2 × AAA (NEDA 24A, IEC LR03)

• Battery life: Approximately 150 hours with alkaline batteries

• Battery indicator: LED flashes red when replacement is needed

• Automatic shutdown: Can be switched off after 2 hours

• Operating temperature: 0 °C to +50 °C

• Humidity during operation: Less than 75% RH

• Storage temperature: -20 °C to +60 °C

• Storage humidity : 0–80% RH, with batteries removed

• Temperature coefficient: 0.1 × the specified accuracy per °C outside the reference range

• Protection class: IP55

• Sensor weight : 177 g

• Shipping weight according to supplier: 0.3 kg

• Dimensions: Not specified

• EAN: 5414618969591

• SKU: 10368430000
