The product information has been verified against the Linum Europe product page and the Fieldpiece Europe specifications .​

Specifications

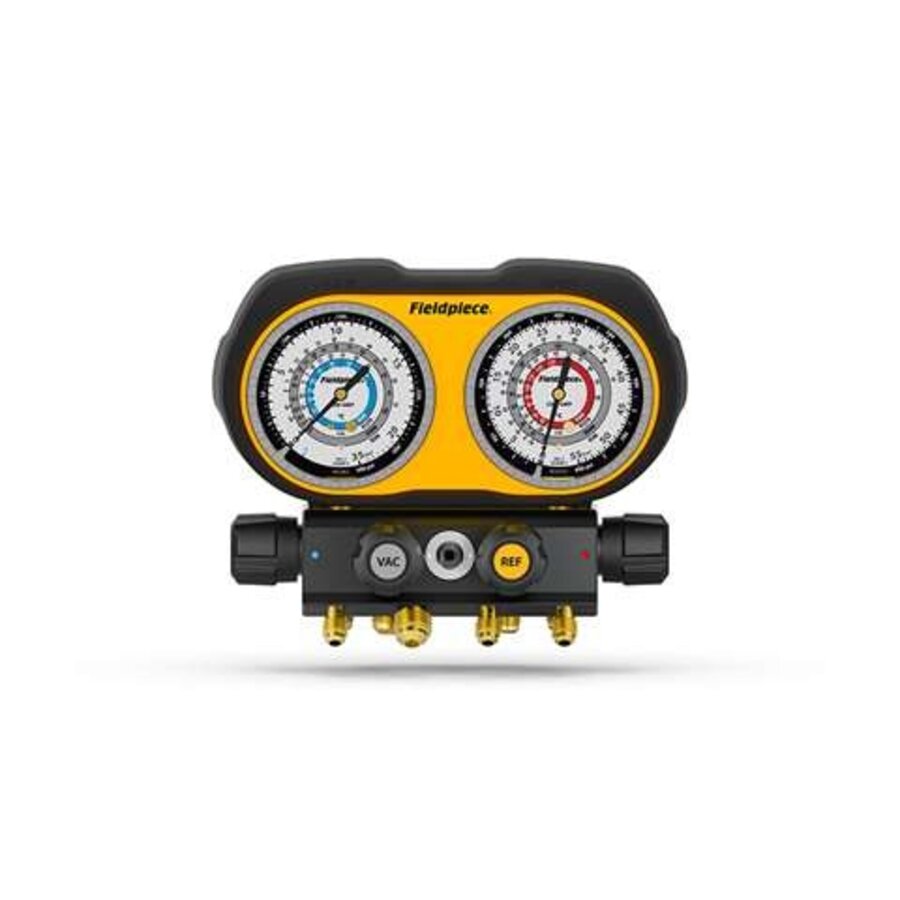

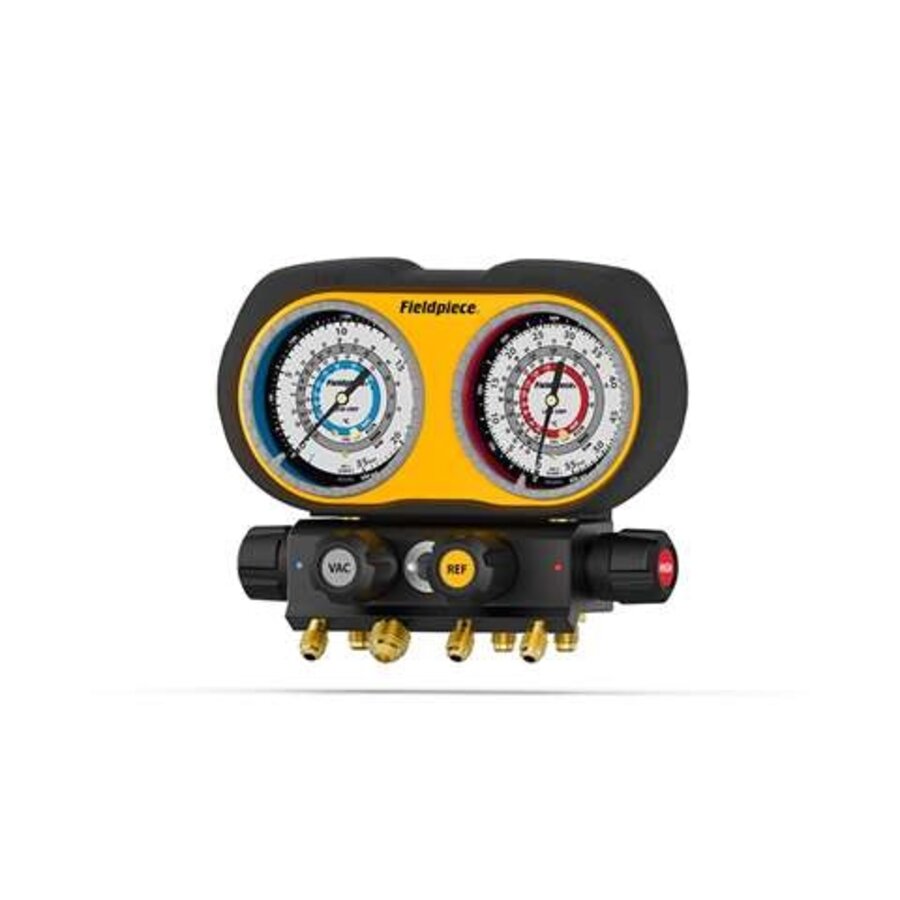

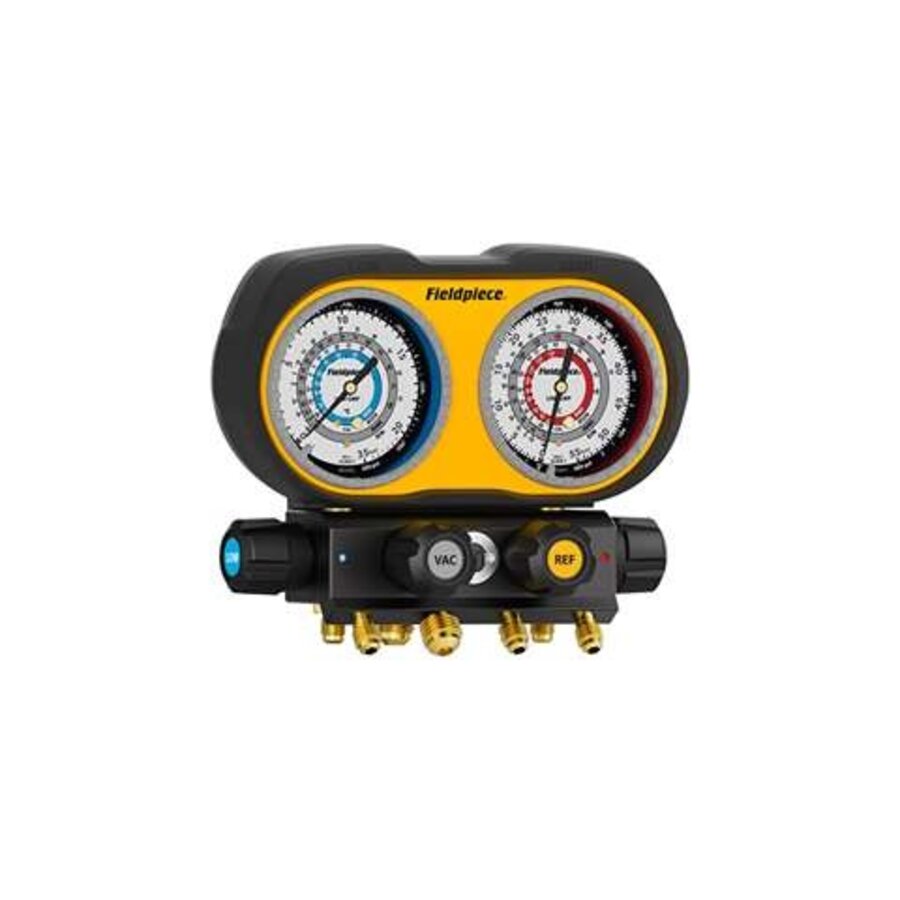

• Product type: Analog manifold

• Model: GS429C

• Type number: FPI-0121-000

• Brand: Fieldpiece Instruments

• Version: 4-way

• Measurement principle: Analog

• Suitable refrigerants: R290, R600, R1270 and R600a

• Refrigerant compatibility: A3/A2L according to manufacturer

• Maximum overpressure manifold block: 206 bar (3000 psi)

• Pressure range high-pressure side: 0 to 55 bar (0–800 psi)

• Low-pressure side pressure range: -1 to 34 bar (30 inHg to 500 psi)

• Low-pressure side overpressure protection : 20 bar (300 psi)

• Measurement accuracy: ±1% of full scale

• Accuracy class: 1A

• Number of connection ports: 4

• Refrigerant connections: 3 × 1/4 inch SAE male flare

• Evacuation connection: 3/8 inch SAE male flare

• Manifold bore diameter : 6.35 mm

• Evacuation port diameter : 9.53 mm

• Hose connections: Interchangeable 1/4 and 5/16 inch couplings

• Sight glass: Integrated

• Housing: Robust design with rubber protective bumpers

• Operating temperature: -20 °C to +50 °C

• Humidity during operation: Less than 75% RH

• Weight: 1.6 kg

• Dimensions: Not listed in the consulted product information

• Included: Hard carrying case

• CE marking: Yes

• EAN: 5414618093487

• SKU: 10438780000

• OEM model: GS429C
