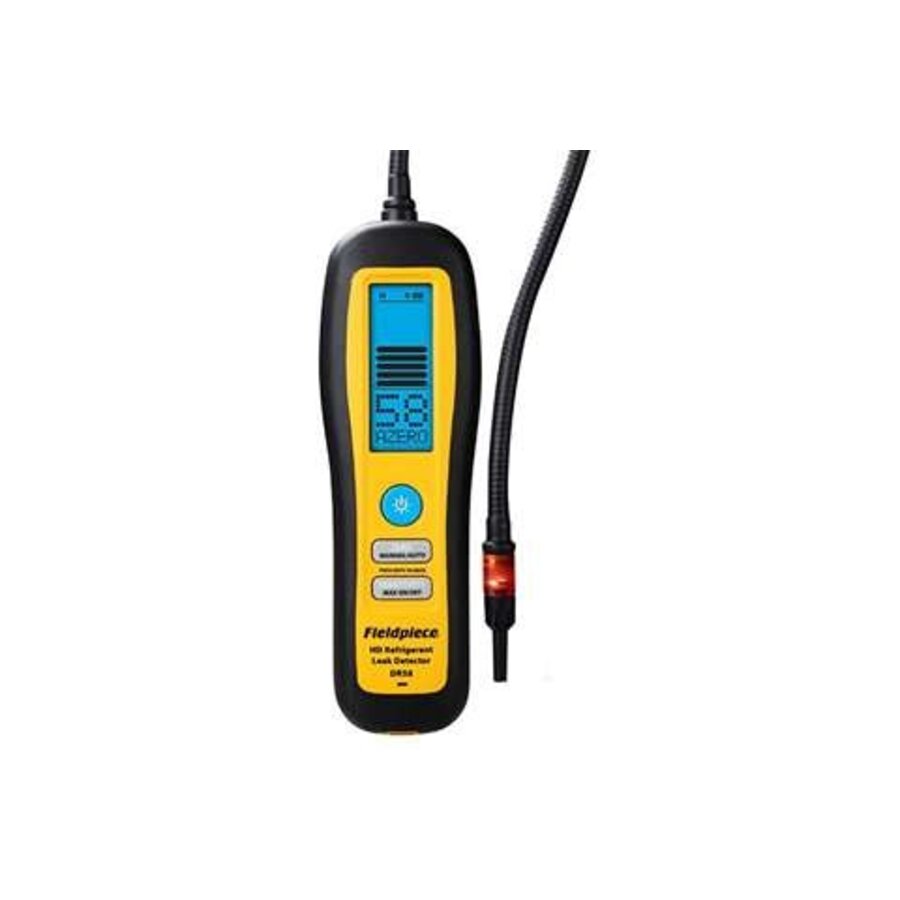

The Fieldpiece Instruments FPI-8101-000 , also known as type DR58, is a refrigerant leak detector with a heated diode sensor. The device was developed for detecting refrigerant leaks in refrigeration and air conditioning systems.

Adjustable sensitivity

The detector features three sensitivity levels: high, medium, and low. The maximum detection sensitivity is 1 g/year at standstill and 3 g/year when the detector is in motion. The typical response time is less than one second, and the recovery time is less than ten seconds.

Detection of various refrigerants

The FPI-8101-000 is suitable for detecting HFC, HCFC, CFC, and HFO refrigerants, mixtures, and tracer gas. Upon detection, the user is warned via a red-tipped LED indicator, an LCD bar graph, a numerical LCD display, and an audible signal.

Rechargeable battery

The coolant leak detector has an integrated, non-replaceable 3.7 V DC, 2600 mAh battery. Under normal use, the operating time is approximately 18 hours when the backlight is switched off. The typical charging time is six hours with the included charger.

For added convenience, the device automatically switches off after ten minutes without detection or operation.

Protection and professional use

The detector is designed according to protection class IP54. The device has a specified weight of 400 grams and is intended for refrigeration technicians and installers who want to efficiently detect refrigerant leaks.

With its heated diode sensor, adjustable sensitivity, and support for various refrigerant types, the Fieldpiece Instruments FPI-8101-000 is a practical solution for maintenance and leak detection on refrigeration and air conditioning systems.

• Product type: Refrigerant leak detector

• Type number: FPI-8101-000

• Model type: DR58

• Brand: Fieldpiece Instruments

• Sensor type: Heated diode

• Sensor lifespan: 300 hours under normal use

• Sensitivity levels: High, medium , and low

• Detection sensitivity at standstill: 1 g/year

• Detection sensitivity in motion: 3 g/year

• Response time: Typically less than 1 second

• Recovery time: Typically less than 10 seconds

• Detectable refrigerants: HFC, HCFC, CFC, HFO, mixtures and tracer gas

• Detection signaling: LED indicator, LCD bar graph, numerical LCD display and audible signal

• Battery voltage: 3.7 V DC

• Battery capacity: 2600 mAh

• Battery type: Rechargeable, non-replaceable

• Usage time: Approximately 18 hours with backlight switched off

• Charging time: Typically 6 hours

• Automatic shutdown: After 10 minutes without detection or operation

• Protection class: IP54

• Operating temperature: -10 °C to +40 °C

• Operating humidity : Less than 75% RH, non-condensing

• Storage temperature: -20 °C to +60 °C

• Storage humidity : Less than 80% RH

• Device weight : 400 g

• Weight according to order details: 1.5 kg

• Dimensions: Not specified

• EAN: 5414618968969

• SKU: 10368140001
