The product description is based on the product information from Linum Europe and the additional specifications from the manufacturer.

Specifications

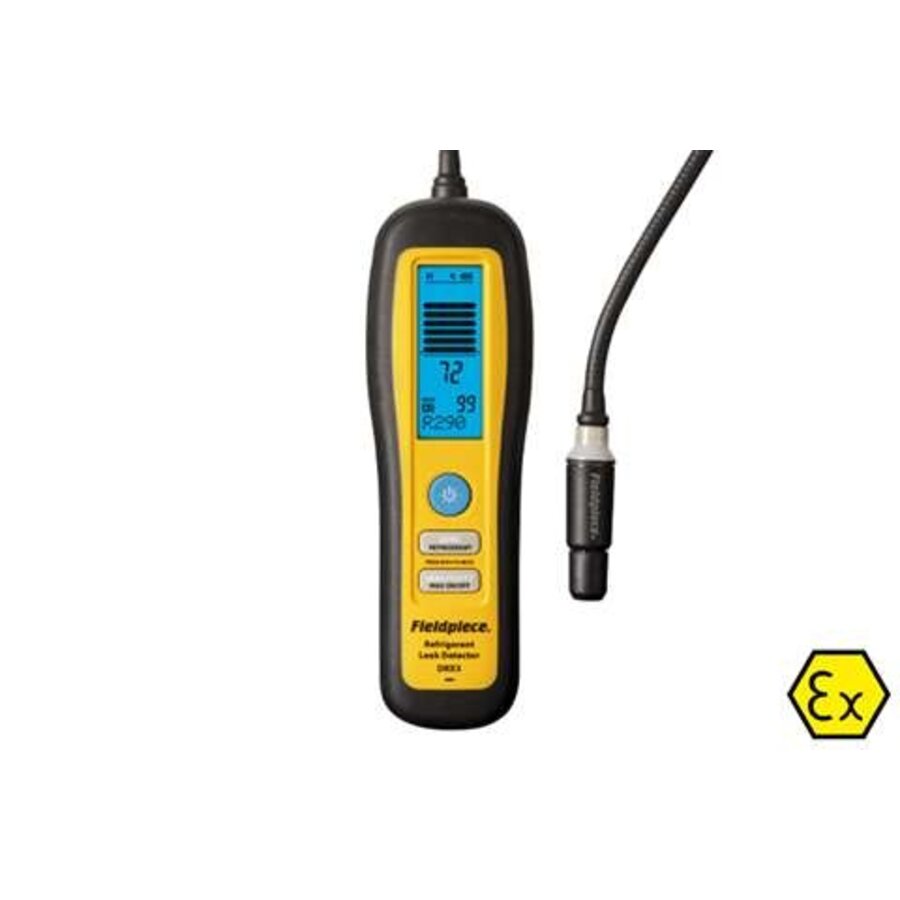

• Product type: Refrigerant leak detector

• Type number: FPI-8111-000

• Model type: DRX3

• Brand: Fieldpiece Instruments

• Sensor type: Heated diode

• Sensor lifespan: 300 hours under normal use

• Sensitivity levels: High, medium , and low

• Detection sensitivity: 1 g/year at rest; 3 g/year in motion

• Detectable refrigerants: HC, HFC, HCFC, CFC, HFO, mixtures and H₂/N₂ tracer gas

• Suitable refrigerant classes: A1, A2L and A3

• Not suitable for: R-702, R-717 and R-744

• ATEX classification: II 3 G Ex ic IIA T2 Gc

• Connectivity: Wireless Job Link connection

• Radio frequency: 2.4 GHz

• Wireless range: Up to 305 meters in line of sight

• Detection signaling: Flashing LED, LCD bar graph, numerical LCD display, audible signal and Job Link app

• Recalibration: Automatic or manual

• Battery type: 4 replaceable AA lithium iron disulfide batteries

• Recommended batteries for ATEX compliance: 4 × Energizer L91 AA

• Battery voltage: 1.5 V DC nominal

• Battery capacity: 3500 mAh

• Battery life : Approximately 60 hours with normal use

• Automatic shutdown: After 10 minutes without detection or operation

• Operating temperature: -20 °C to +50 °C

• Operating humidity : Less than 95% RH, non-condensing

• Storage temperature: -20 °C to +60 °C

• Storage humidity : Less than 95% RH, non-condensing

• Protection class: IP54

• Dimensions (L × W × H): 98 × 279 × 320 mm, external dimensions according to Linum

• Device weight : 442 g including batteries according to the manufacturer

• Weight according to order details: 1.45 kg

• Package contents : DRX3 leak detector , RXA3 heated diode sensor , 4 ATEX-compliant AA batteries and carrying case

• EAN: 5414618109812

• SKU: 10420990001
