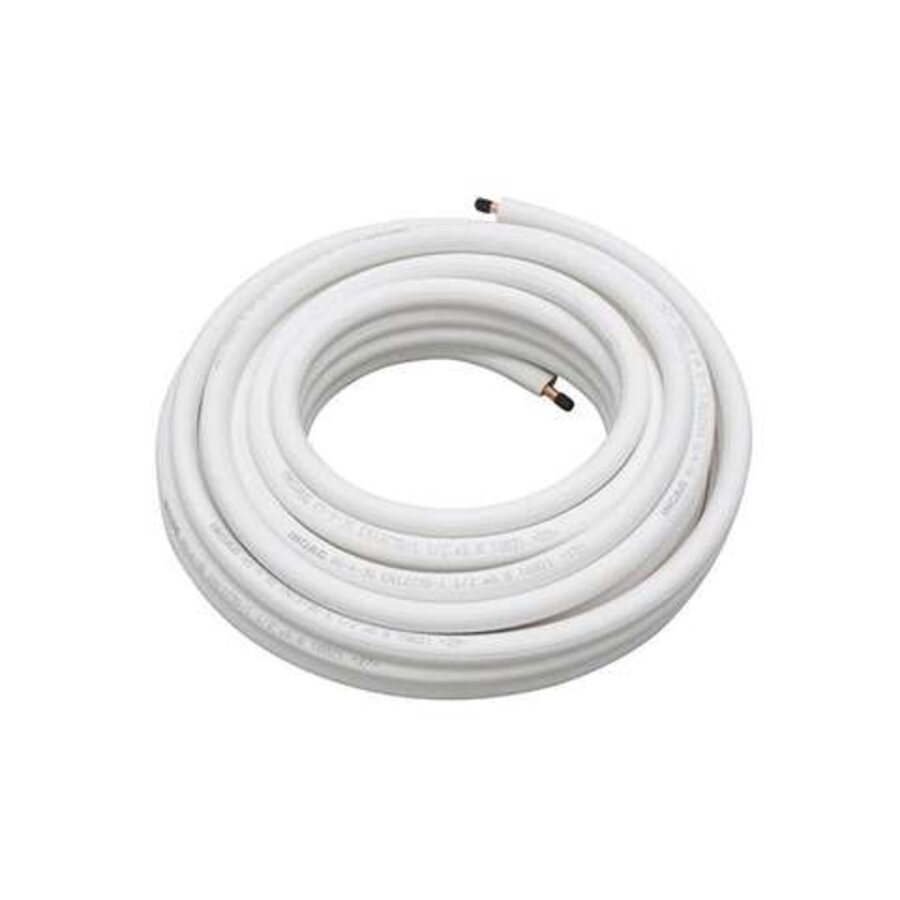

Insulated copper pipe 6 mm – 40 meter roll
This high-quality 6 mm insulated copper pipe is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 6.00 mm and is supplied on a 40-meter roll. Thanks to the generous roll length, this version is suitable for various professional installation, maintenance, and assembly tasks.
The pipe is manufactured from high-quality, flexible copper and features a constant wall thickness of 1.0 mm. The flexible copper makes the pipe easy to work with during installation and helps to efficiently lay the desired piping route. As a result, this copper pipe is suitable for installers and technical services working with professional cooling and air conditioning systems.
10 mm thick PE insulation surrounds the copper pipe. The insulation features a heat-resistant inner layer suitable for temperatures up to 110 °C. As a result, the pipe offers a practical combination of protection and insulation for professional refrigeration applications.
The insulation is not UV-resistant. For applications where the pipe is exposed to direct sunlight or UV radiation, it is recommended to protect the pipe with suitable adhesive tape or mounting channels. This helps protect the insulation for a longer period when the pipe is used outdoors or in another UV-exposed location.
The copper piping is suitable for all types of refrigerants, depending on the applicable operating pressure and the requirements of the installation in question. This allows the piping to be used within various refrigeration systems. The combination of flexible copper and a constant wall thickness makes the piping practical to work with during professional installation activities.
The cable complies with EN 13501-1 and has fire class BL-s1-d0. Each roll is packed to a high standard in a separate box. This ensures that the copper cable remains well protected during transport and storage, and that the roll is easy to handle on site.
With a length of 40 meters, this insulated copper pipe offers ample material for professional projects. The combination of a 6.00 mm outer diameter, 1.0 mm wall thickness, 10 mm insulation, and heat-resistant inner layer makes this pipe a practical choice for applications in air conditioning, refrigeration, and climate control systems.
Specifications:
- Type: insulated copper pipe
- Pipe size: 6 mm
- Length: 40 meters per roll
- Outer diameter: 6.00 mm
- Wall thickness: 1.0 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant 1 mm
- Insulation material: PE insulation
- Heat-resistant inner layer: up to 110 °C
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- UV resistance: not UV resistant
- UV protection: use adhesive tape or mounting channels
- Suitable for: all types of refrigerants, depending on the operating pressure
- Packaging: 1 roll per box
- Flexibility: flexible and easy to work with
- Application: air conditioning, refrigeration technology and climate control
- Condensation: suitable for insulated refrigeration applications
