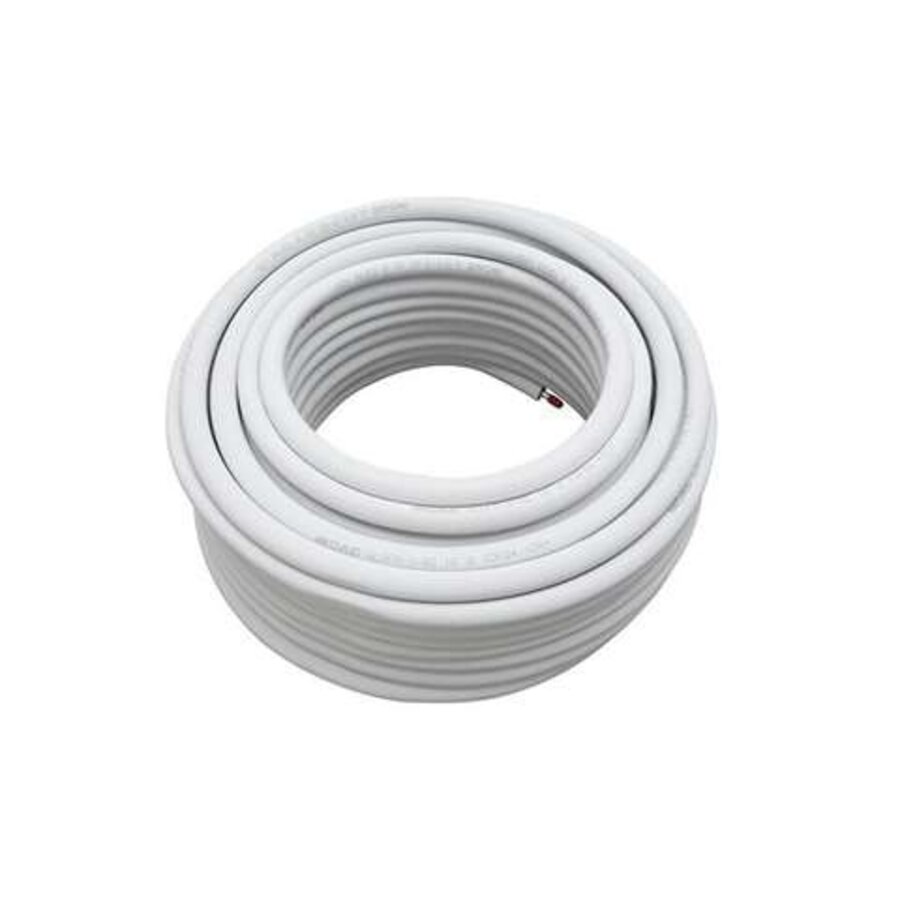

This insulated 3/8-inch aluminium duct is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The duct is supplied on a 50-meter roll and is manufactured from high-quality, flexible aluminium. The combination of a sturdy aluminium duct and high-quality PE insulation makes this version suitable for various professional installation tasks.

The pipe has an outer diameter of 9.52 mm and a wall thickness of 1.0 mm. The constant wall thickness ensures a uniform finish along the entire length. Thanks to the flexible aluminium, the pipe is easy to work with during installation and can be practically applied in various piping routes.

The aluminium pipe is surrounded by a high-quality PE jacket with an insulation thickness of 9 mm. The insulation consists of two resilient layers and has a hard, white outer wall. The inner layer is heat-resistant up to 120 °C and offers additional protection during installation and use.

The inner and outer walls of the insulation feature a closed cell structure. As a result, the insulation possesses good thermal properties. With a thermal conductivity of up to 0.043 W/mK, the insulation helps to limit heat transfer. Additionally, the design is engineered for condensation-free application, which is important for air conditioning and refrigeration systems.

The pipe is flexible and designed to be easily bent during installation without the insulation creasing quickly. This allows the installer to route the pipe neatly along the desired path. The red protective cap ensures that the pipe is easily recognizable during storage, transport, and installation.

With a length of 50 meters per roll, this version offers sufficient material for various installation projects. The roll is delivered in a separate box, ensuring that transport and storage remain practical and organized.

The aluminium pipe complies with EN 13501-1 and has fire class BL-s1-d0. Due to the combination of flexible aluminium, 9 mm PE insulation, a heat-resistant inner layer, and a length of 50 meters, this pipe is suitable for various professional applications in air conditioning, refrigeration, and climate control.

Specifications:

• Type: insulated aluminium pipe
• Size: 3/8 inch
• Length: 50 meters per roll
• Outer diameter: 9.52 mm
• Wall thickness: 1.0 mm
• Insulation thickness: 9 mm
• Pipe material: high-quality, flexible aluminum
• Insulation material: PE
• Insulation: 2 layers of resilient, high-quality PE jacket
• Inner layer: heat-resistant up to 120 °C
• Exterior wall insulation: rigid and white
• Fire class: BL-s1-d0
• Standard: EN 13501-1
• Thermal conductivity: maximum 0.043 W/mK
• Insulation structure: closed cell structure
• Flexibility: flexible and easy to work with
• Condensation: condensation-free
• Protective cap: red
• Packaging: 1 roll per box
• Application: air conditioning, refrigeration technology and climate control
