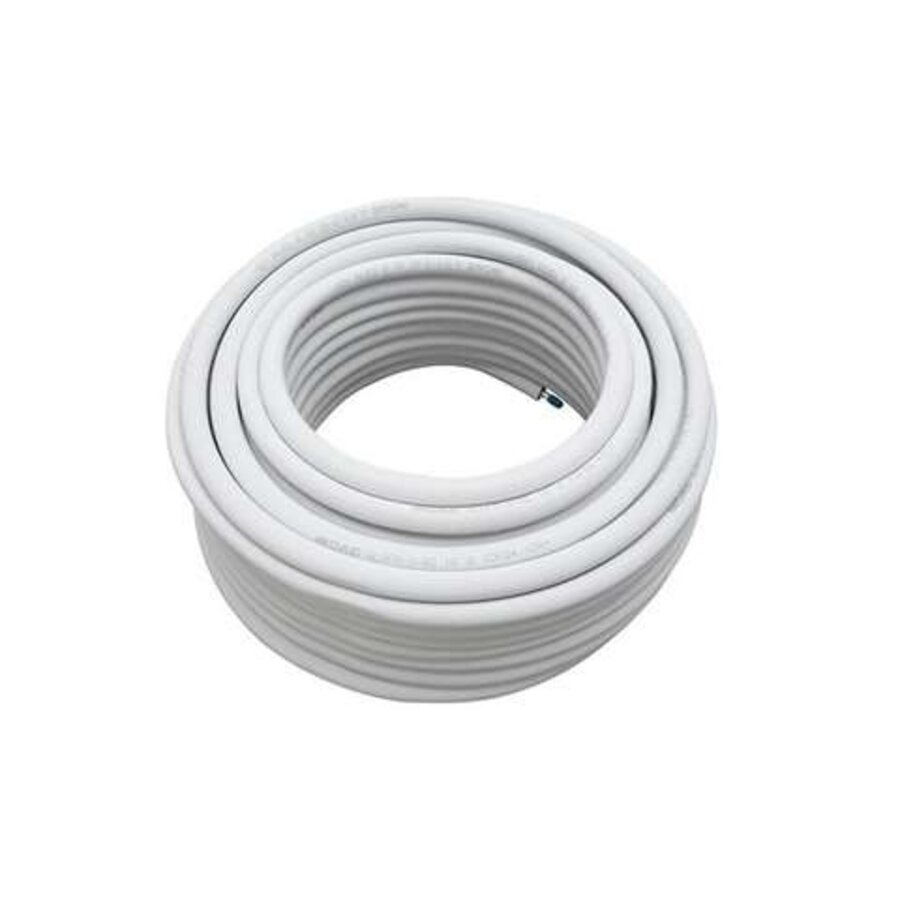

This insulated 5/8-inch aluminium duct is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The duct is supplied on a 50-meter roll and is manufactured from high-quality, flexible aluminium. Thanks to the combination of a sturdy duct and high-quality insulation, this version is suitable for various installation tasks.

With an outer diameter of 15.88 mm and a wall thickness of 1.0 mm, the aluminium pipe offers a consistent and uniform finish along its entire length. The flexible material makes the pipe easy to work with during installation and helps in creating a suitable piping route. The pipe is designed to be easily bent, ensuring the insulation does not wrinkle easily.

The aluminium pipe is surrounded by a high-quality PE jacket with an insulation thickness of 9 mm. The insulation consists of two resilient layers and has a hard, white outer wall. The inner layer is heat-resistant up to 120 °C and provides extra protection for the insulation during use and installation.

The inner and outer walls feature a closed cell structure. As a result, the insulation has good thermal properties. With a thermal conductivity of a maximum of 0.043 W/mK, the insulation helps to limit heat transfer. Additionally, the construction contributes to a condensation-free performance, which is important in applications where temperature differences play a role.

The protective cap is red, making it easy to identify the pipe during storage and installation. The roll has a length of 50 meters and is delivered in a separate box. This makes the pipe practical to transport and easy to store until it is used for an installation.

The piping complies with EN 13501-1 and has fire class BL-s1-d0. This makes this version attractive to professional installers and companies working with air conditioning, refrigeration, and climate control systems. The combination of flexible aluminium, 9 mm PE insulation, a heat-resistant inner layer, and a length of 50 meters makes this piping suitable for a wide range of professional applications.

Specifications:

• Type: insulated aluminium pipe
• Size: 5/8 inch
• Length: 50 meters per roll
• Outer diameter: 15.88 mm
• Wall thickness: 1.0 mm
• Insulation thickness: 9 mm
• Pipe material: high-quality, flexible aluminum
• Insulation material: PE
• Insulation: 2 layers of resilient, high-quality PE jacket
• Inner layer: heat-resistant up to 120 °C
• Exterior wall insulation: rigid and white
• Fire class: BL-s1-d0
• Standard: EN 13501-1
• Thermal conductivity: maximum 0.043 W/mK
• Insulation structure: closed cell structure
• Flexibility: flexible and easy to work with
• Condensation: condensation-free
• Protective cap: red
• Packaging: 1 roll per box
• Application: air conditioning, refrigeration technology and climate control
