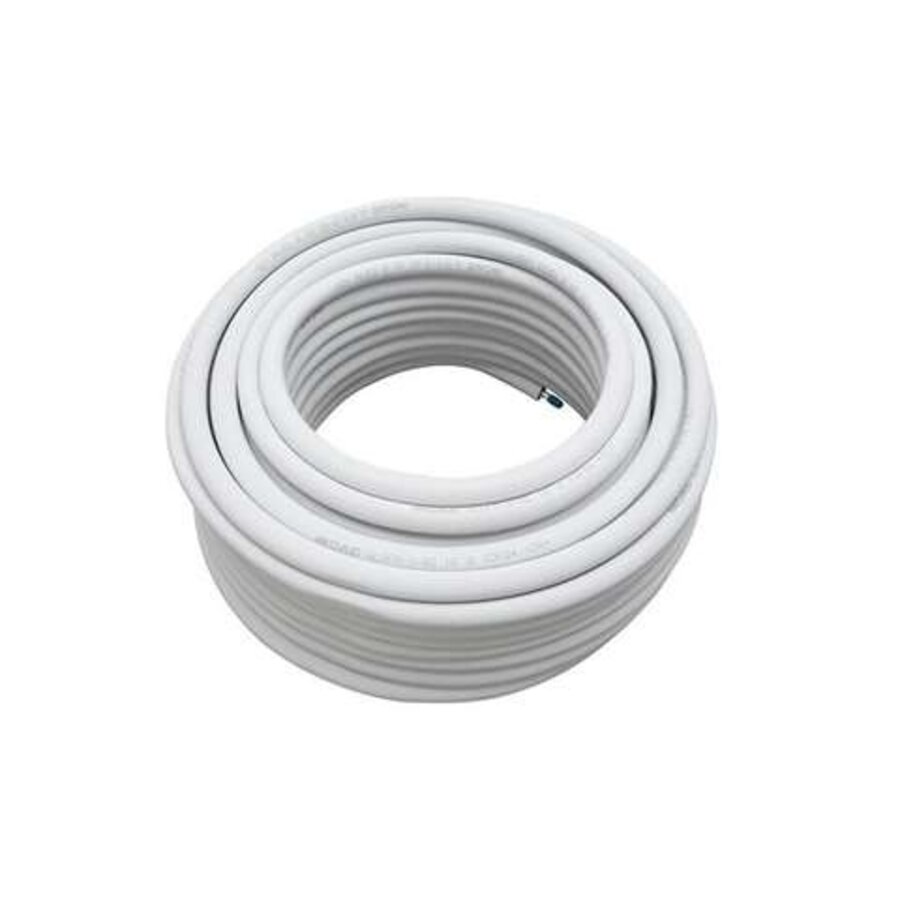

This insulated 1/2-inch aluminium duct is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The duct is supplied on a 50-meter roll and is manufactured from high-quality, flexible aluminium. The combination of a sturdy aluminium duct and high-quality PE insulation makes this version suitable for various professional installation tasks.

The pipe has an outer diameter of 12.70 mm and a wall thickness of 1.3 mm. The constant wall thickness ensures a uniform finish along the entire length. Thanks to the flexible aluminium, the pipe is easy to work with during installation and can be practically applied in various piping routes.

The aluminium pipe is surrounded by a high-quality PE jacket with an insulation thickness of 10 mm. The insulation consists of two resilient layers and has a hard, white outer wall. The inner layer is heat-resistant up to 120 °C and offers additional protection during installation and use.

The inner and outer walls of the insulation feature a closed cell structure. This construction contributes to the insulating properties of the pipe. With a thermal conductivity of up to 0.043 W/mK, the insulation helps to limit heat transfer. Additionally, the pipe is designed for condensation-free operation, which is important for air conditioning and refrigeration systems.

The flexible aluminium conduit is designed for easy handling during installation. When bent, the insulation is designed not to wrinkle easily, allowing the conduit to be placed neatly along the desired routing. The blue protective cap ensures that the conduit is easily recognizable during storage, transport, and assembly.

With a length of 50 meters per roll, this version offers sufficient material for various installation projects. The roll is delivered in a separate box, ensuring that transport and storage remain practical and organized.

The aluminium pipe complies with EN 13501-1 and has fire class BL-s1-d0. The combination of a 1/2 inch aluminium pipe, 10 mm PE insulation, a heat-resistant inner layer, and a length of 50 meters makes this version suitable for various professional applications in air conditioning, refrigeration, and climate control.

Specifications:

• Type: insulated aluminium pipe
• Size: 1/2 inch
• Length: 50 meters per roll
• Outer diameter: 12.70 mm
• Wall thickness: 1.3 mm
• Insulation thickness: 10 mm
• Pipe material: high-quality, flexible aluminum
• Insulation material: PE
• Insulation: 2 layers of resilient, high-quality PE jacket
• Inner layer: heat-resistant up to 120 °C
• Exterior wall insulation: rigid and white
• Fire class: BL-s1-d0
• Standard: EN 13501-1
• Thermal conductivity: maximum 0.043 W/mK
• Insulation structure: closed cell structure
• Flexibility: flexible and easy to work with
• Condensation: condensation-free
• Protective cap: blue
• Packaging: 1 roll per box
• Application: air conditioning, refrigeration technology and climate control
