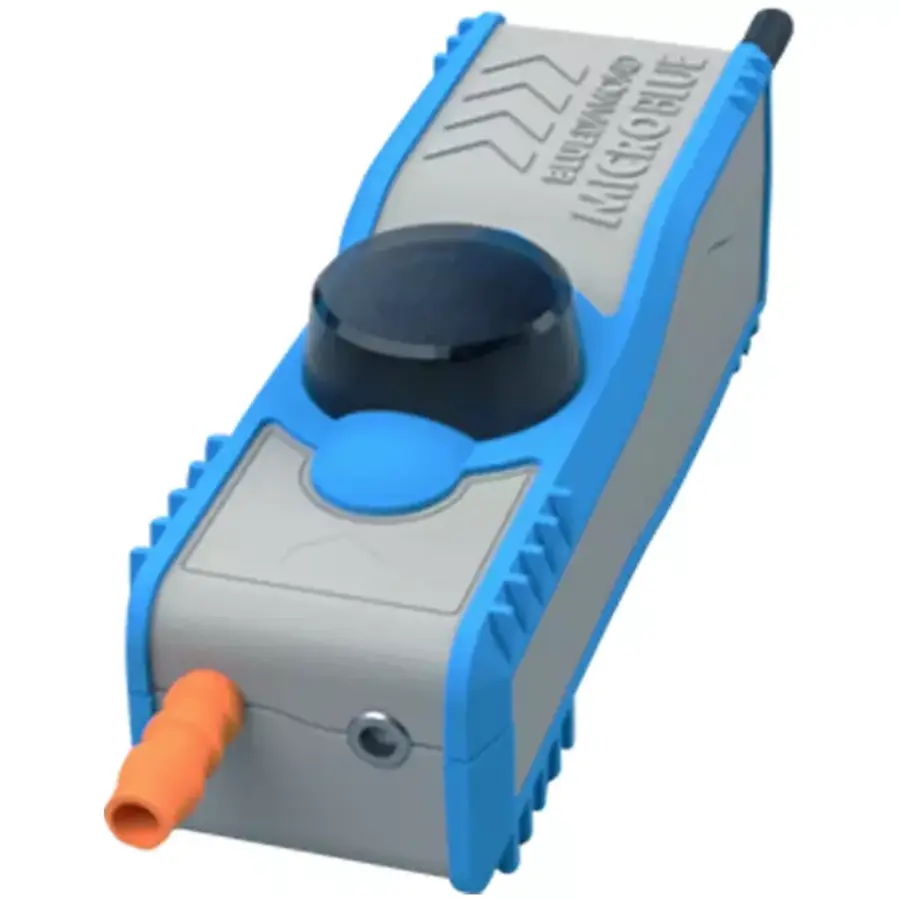

This complete installation kit offers a ready-to-use solution for condensate drainage, focusing on both technology and aesthetics. The set includes a compact condensate pump utilizing patented rotary diaphragm technology, ensuring the pump operates completely silently and vibration-free. To provide a professional and neat finish to the installation, a matching white mounting channel is included, allowing the pump and pipes to be discreetly concealed alongside the air conditioning unit. The system is equipped with a reservoir featuring a High Level Alarm that immediately shuts off the cooling system in the event of a blockage to prevent water damage. Because the pump has no moving valves or pistons, it is impervious to dust and dirt in the condensate, resulting in an extremely long service life. This solution is ideally suited for spaces where a visible installation is undesirable and quiet operation is required, such as in offices, hotels, or living rooms.

Specifications

• Maximum pump capacity: 5 liters per hour

• Maximum delivery head: 5 meters (vertical)

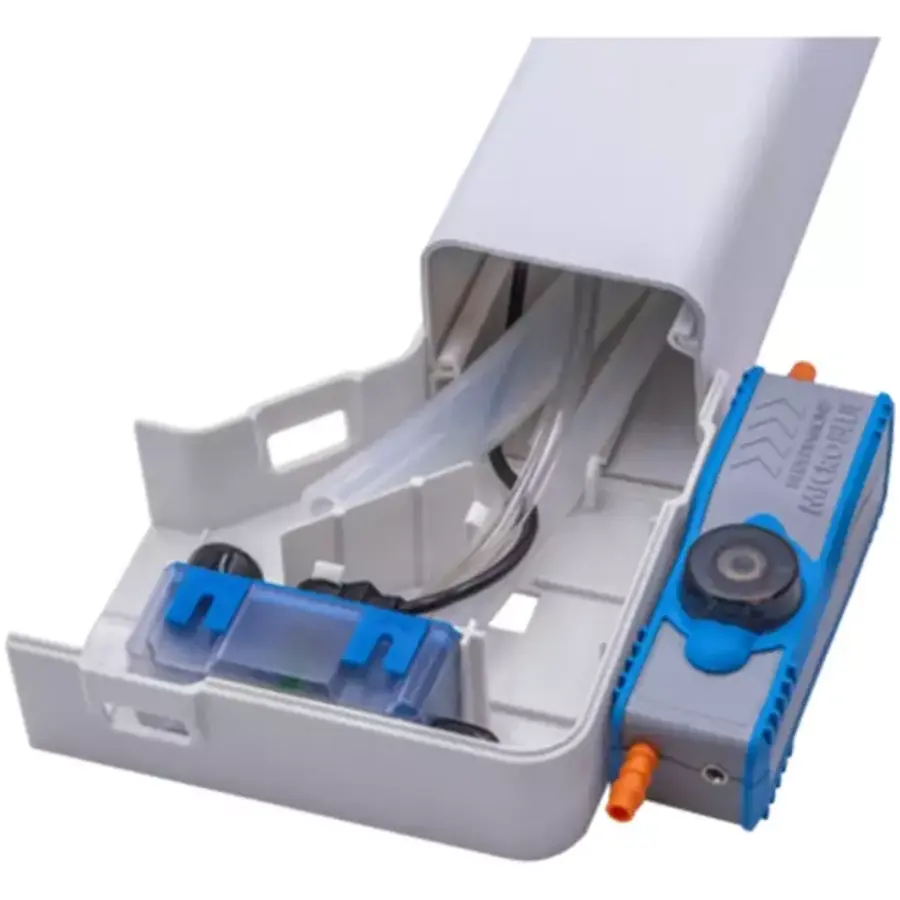

• Finish: Includes white mounting channel (800mm) for wall mounting

• Technology: Patented rotating membrane (low maintenance)

• Safety: Equipped with High Level Alarm (HLA) security

• Noise level: Whisper-quiet operation, suitable for any room

• Application: Air conditioning and cooling systems up to 3.5 kW

• Set contents: Pump unit, reservoir with alarm, mounting channel and connection material
