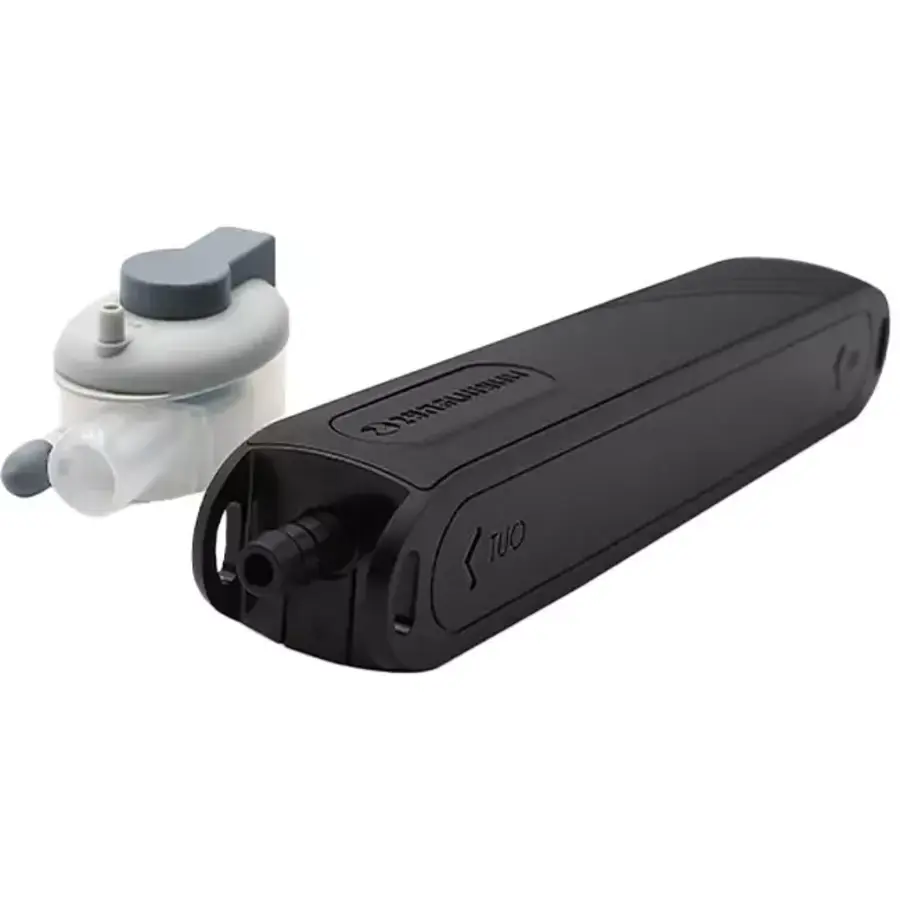

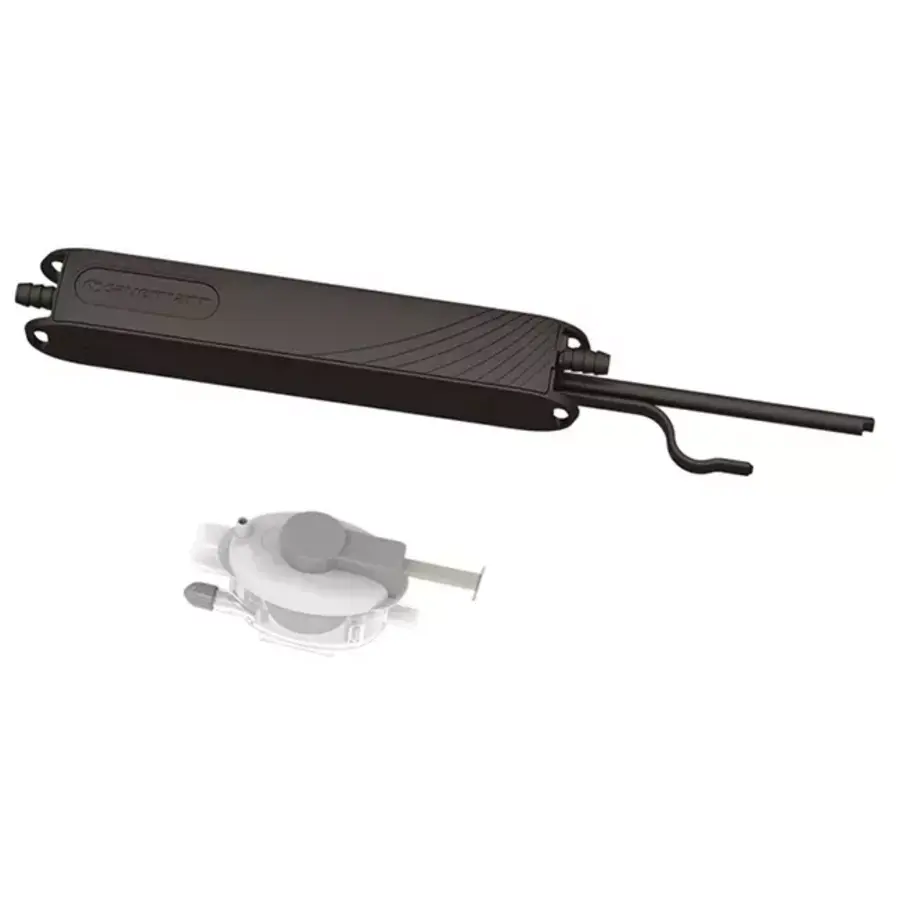

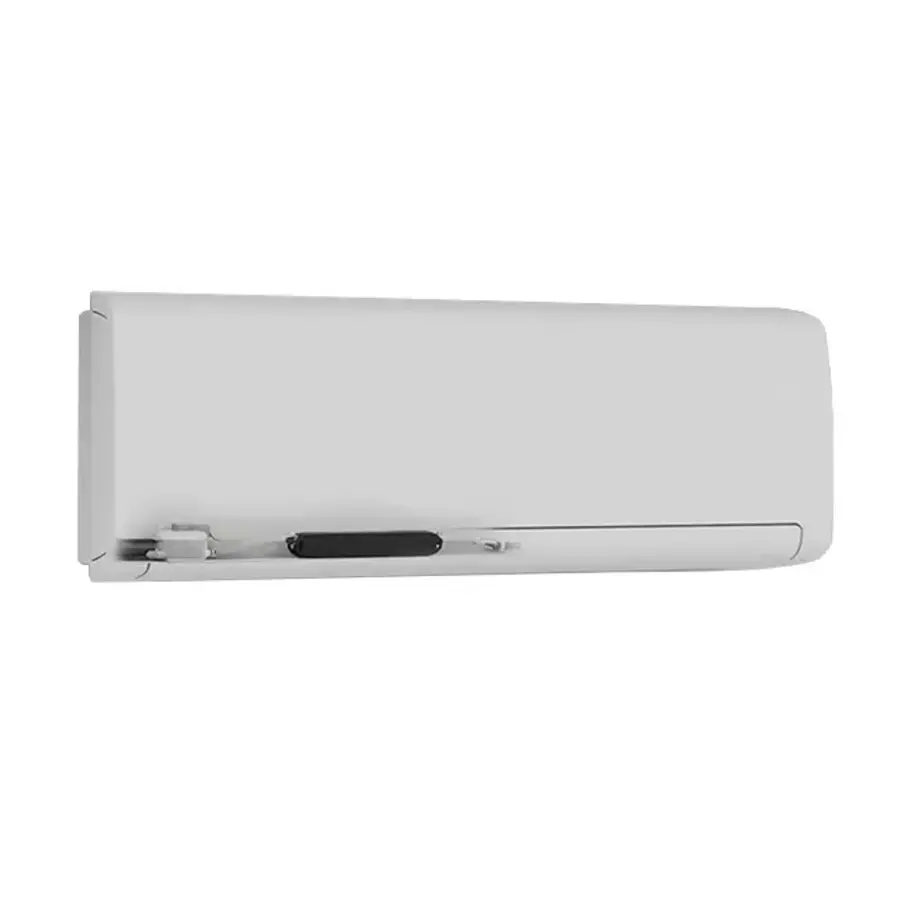

This mini built-in condensate pump is the ideal solution for installations where space is limited but powerful performance is required. Thanks to its slim and compact design, the pump unit can be effortlessly concealed within an air conditioning indoor unit, in a cable duct, or above a suspended ceiling. The pump utilizes patented piston pump technology, specifically developed to efficiently drain condensate with a minimal noise level of just 22 dB(A). The unit is vibration-free and offers an impressive head of up to 10 meters, making it suitable for air conditioning systems of up to 20 kW. For maximum safety, the pump is equipped with a built-in alarm contact that immediately shuts off the cooling system in the event of a blockage. The robust construction is resistant to contamination and dust particles in the condensate, ensuring a long service life and minimal maintenance costs. A reliable and discreet choice for any professional installer striving for invisible yet powerful water drainage.

Specifications

• Maximum pump capacity: 20 liters per hour

• Maximum delivery head: 10 meters (vertical)

• Noise level: Whisper-quiet, only 22 dB(A) at 1 meter

• Technology: Patented vibration-free piston pump

• Safety: Equipped with high water alarm contact (NC 8A)

• Application: Suitable for wall-mounted units, ceiling-mounted models, and ducted units up to 20 kW

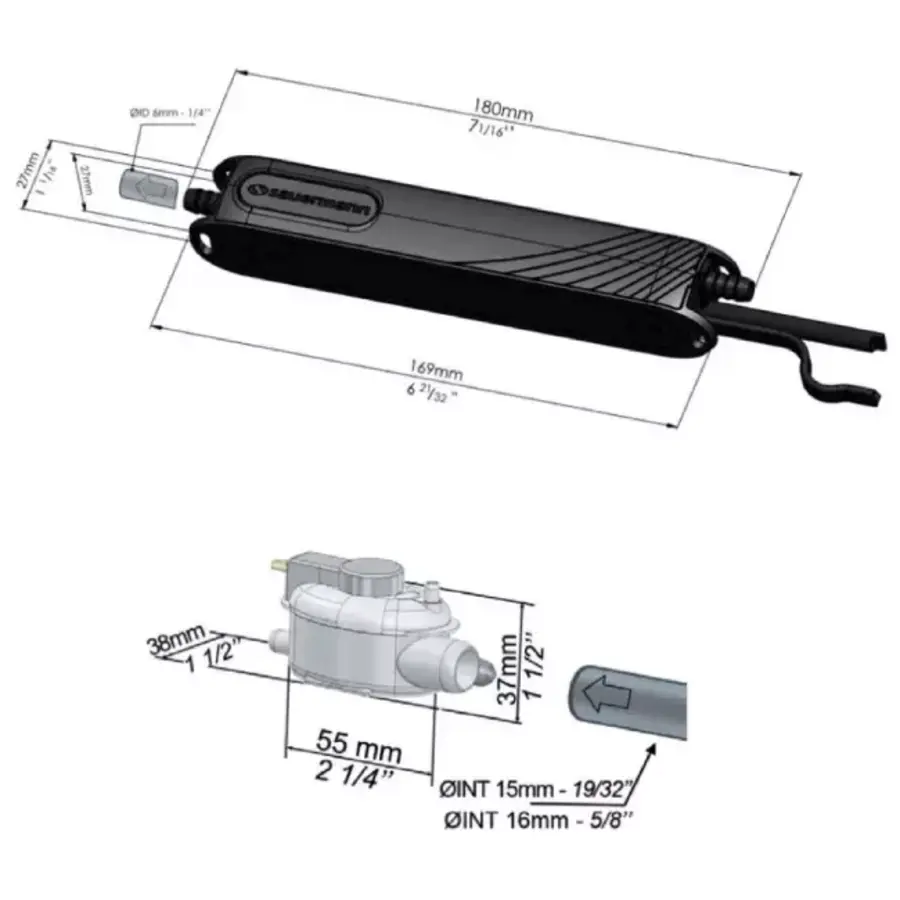

• Features: Compact installation dimensions for discreet mounting

• Set contents: Pump unit, float housing with float and mounting material
