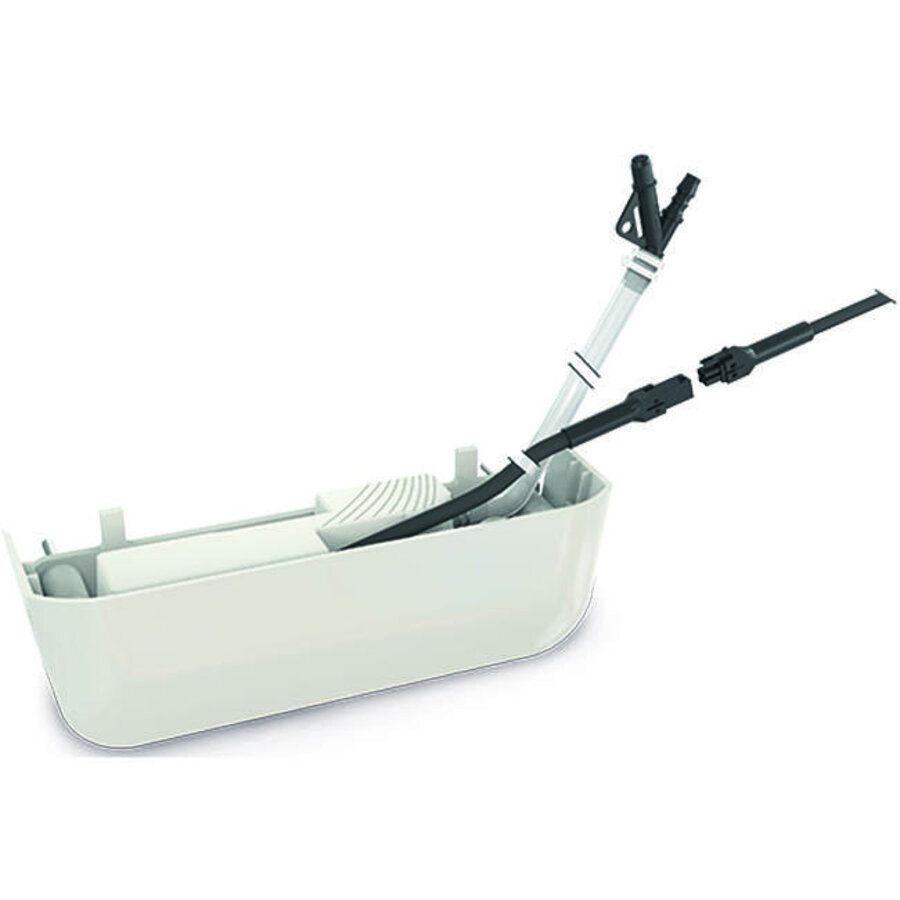

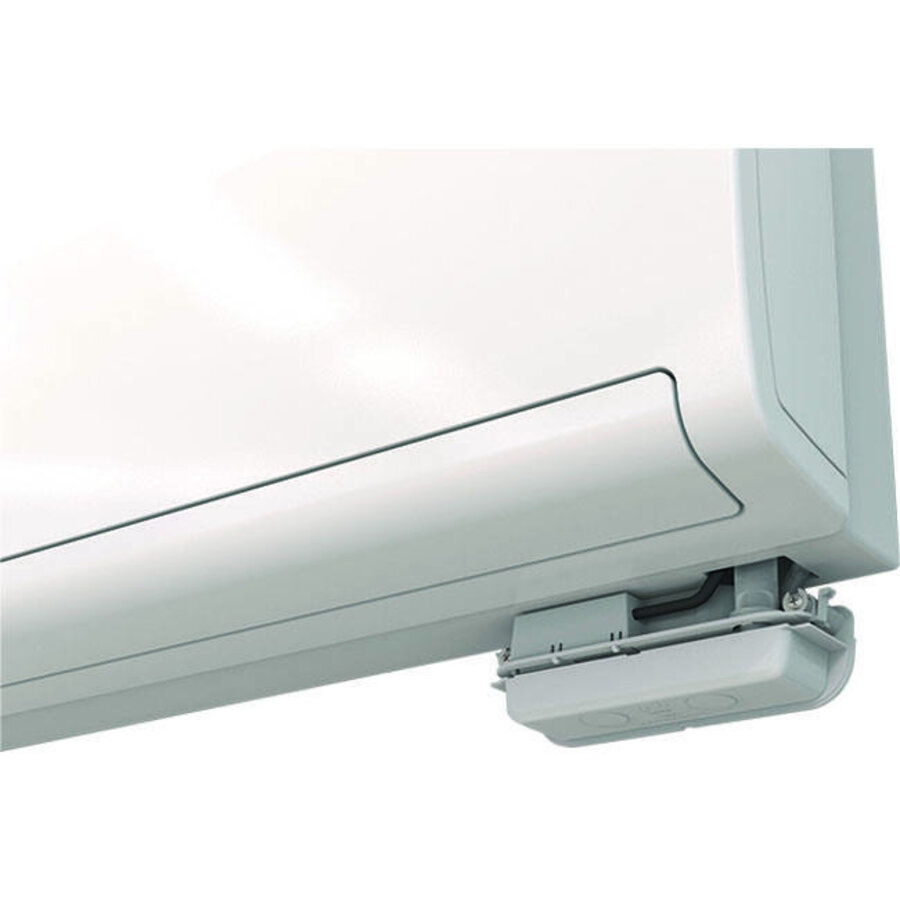

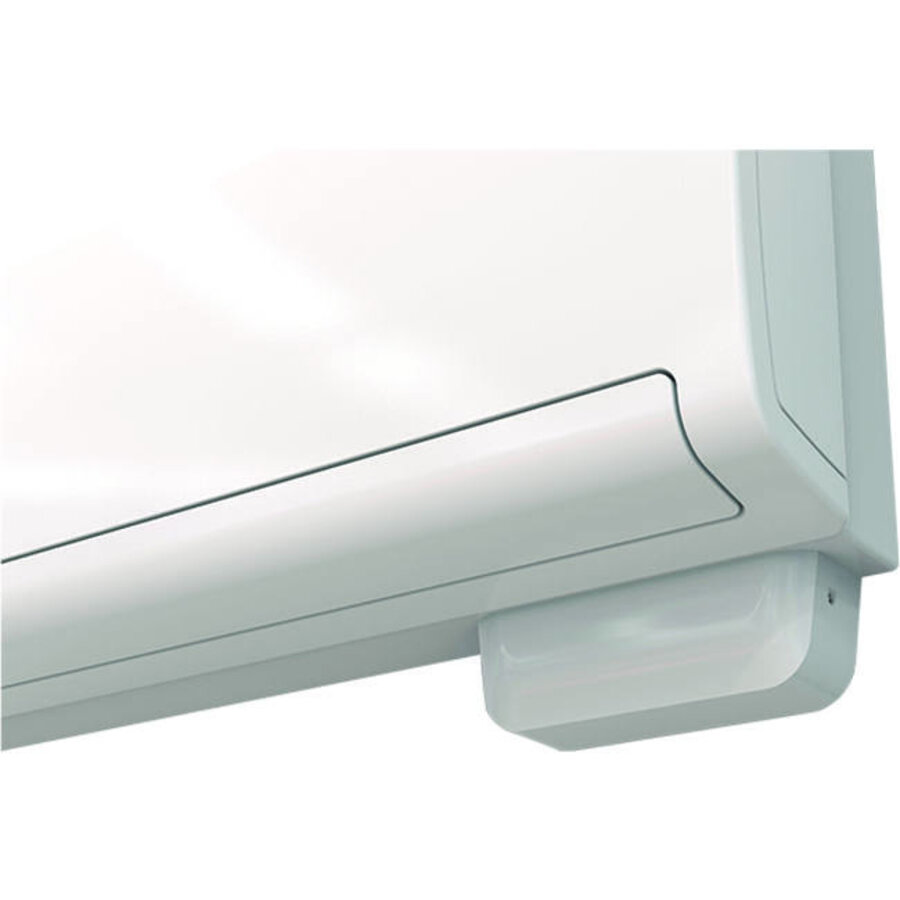

This condensate pump is the ideal solution for situations where a standard mounting duct is not desired and the pump needs to be installed directly under a wall unit or ceiling. With an impressive capacity of 20 liters per hour, this unit effortlessly processes condensate from air conditioning systems of up to 20 kW. The pump is equipped with patented piston pump technology, which not only ensures powerful discharge up to a head of 10 meters but also provides an extremely low noise level of just 22 dB(A). The housing features an aerodynamic design with a sleek white finish that blends seamlessly into modern interiors. To prevent water damage, the pump is equipped with a built-in alarm contact that immediately shuts off the cooling system in the event of a blockage or malfunction. The robust construction is designed to function trouble-free for years, even with intensive use in offices, hotels, or retail stores. Thanks to the simple mounting bracket and included accessories, quick and professional installation on any surface is guaranteed.

Specifications

• Maximum pump capacity: 20 liters per hour

• Maximum delivery head: 10 meters (vertical)

• Sound level: Extremely quiet, only 22 dB(A) at 1 meter

• Technology: Patented vibration-free piston pump

• Safety: Equipped with flood alarm contact (NC 8A)

• Application: Suitable for wall-mounted and ceiling units up to 20 kW

• Features: Compact white housing for discreet mounting

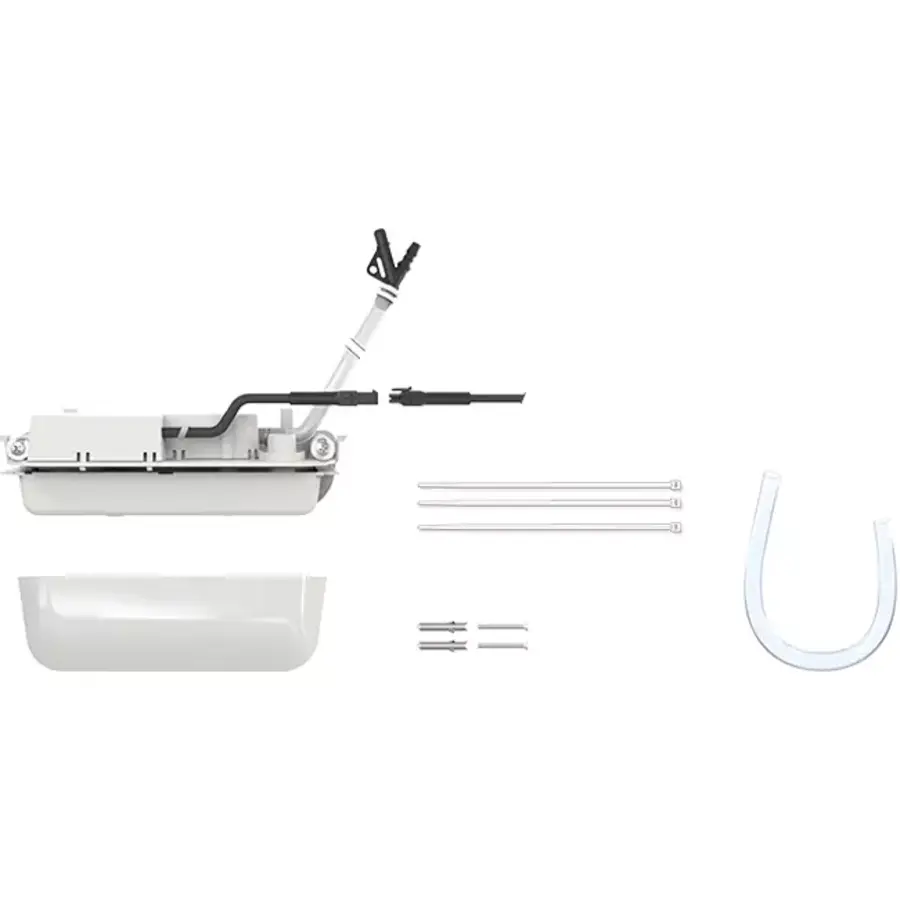

• Set contents: Pump unit, float housing, mounting bracket and connection material
