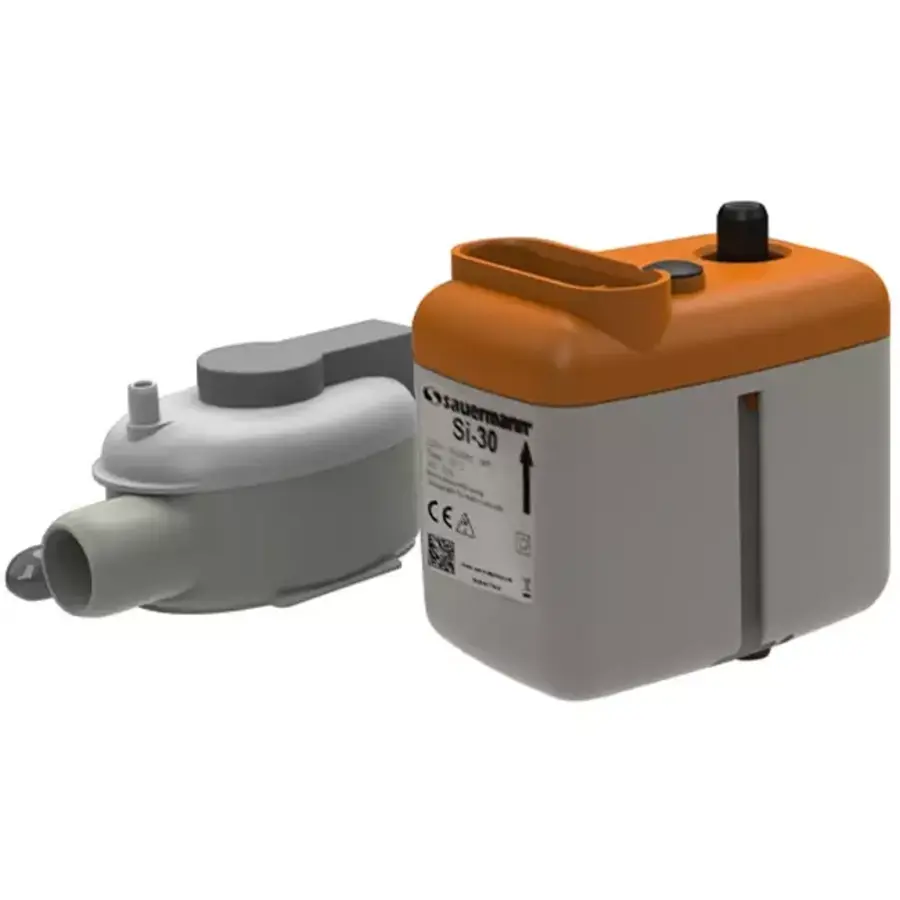

This mini built-in condensate pump is the ideal solution for heavier air conditioning systems where available mounting space is limited. Despite its compact size, the pump delivers an impressive flow rate of 20 liters per hour, making it suitable for units up to 20 kW. The pump utilizes patented piston pump technology specifically developed to efficiently drain condensate with a minimal noise level of just 20 dB(A). The unit is completely vibration-free and offers a maximum head of 10 meters, making it a perfect fit for cable trays or above suspended ceilings. For maximum safety, the pump is equipped with a built-in alarm contact that immediately shuts down the system in the event of a blockage. The robust construction offers excellent resistance to small dust particles and contamination in the condensate, ensuring a long service life. A reliable and discreet choice for any professional installer seeking powerful water drainage in larger offices or commercial spaces.

Information

• Maximum pump capacity: 20 liters per hour

• Maximum delivery head: 10 meters (vertical)

• Noise level: Whisper-quiet, only 20 dB(A) at 1 meter

• Technology: Patented vibration-free piston pump

• Safety: Equipped with high water alarm contact (NC 8A)

• Application: Suitable for wall-mounted units, ceiling-mounted models, and ducted units up to 20 kW

• Features: High dirt tolerance and energy-efficient operation

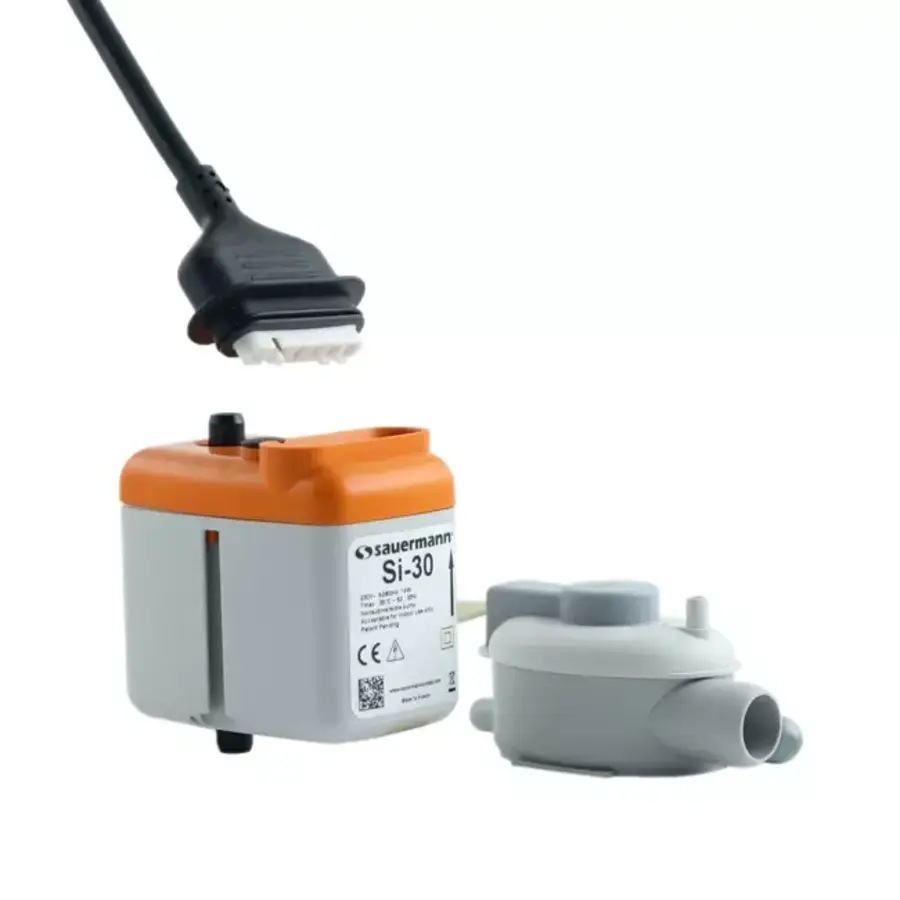

• Set contents: Pump unit, float housing with float, and mounting material

Specifications

• Model
  With sensor
• Pump housing material
  Plastic
• Electrical connection
  Cable
• Number of phases
  1
• Max. head
  10 m
• Max. flow rate
  20 l/h
• Max. suction height
  3 m
• Incl. drain hose
  Yes
• Width
  135 mm
• Height
  90 mm
• Depth
  135 mm
• Noise emission
  20 dB(A)
