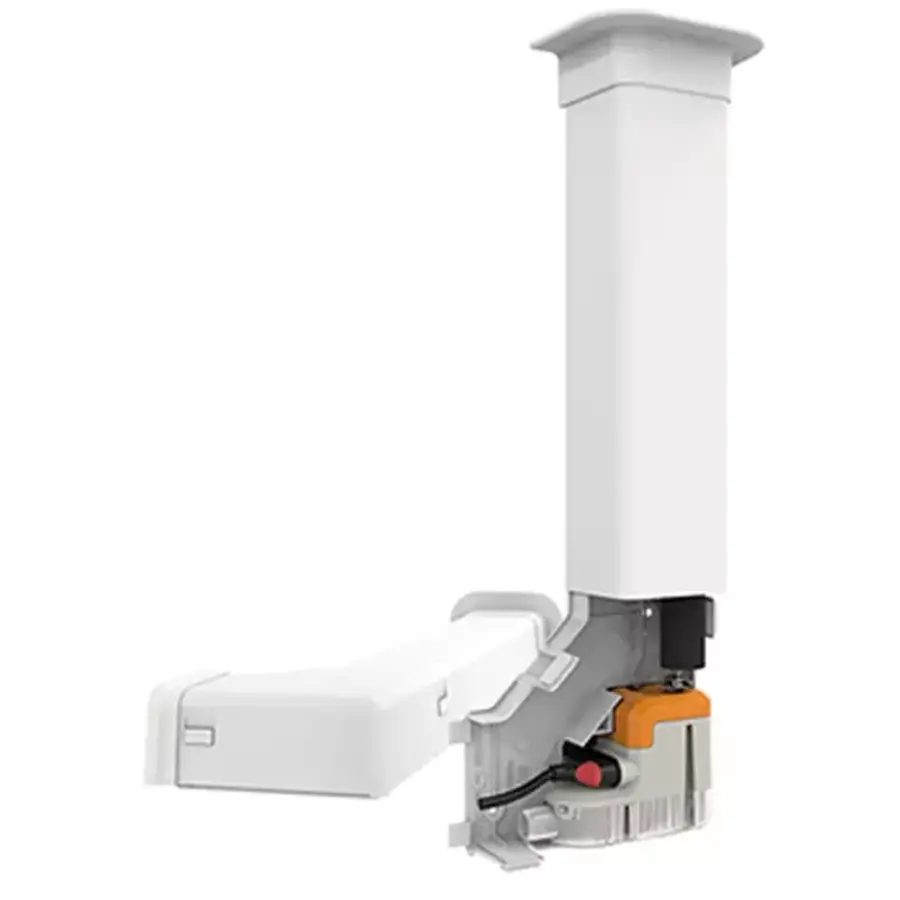

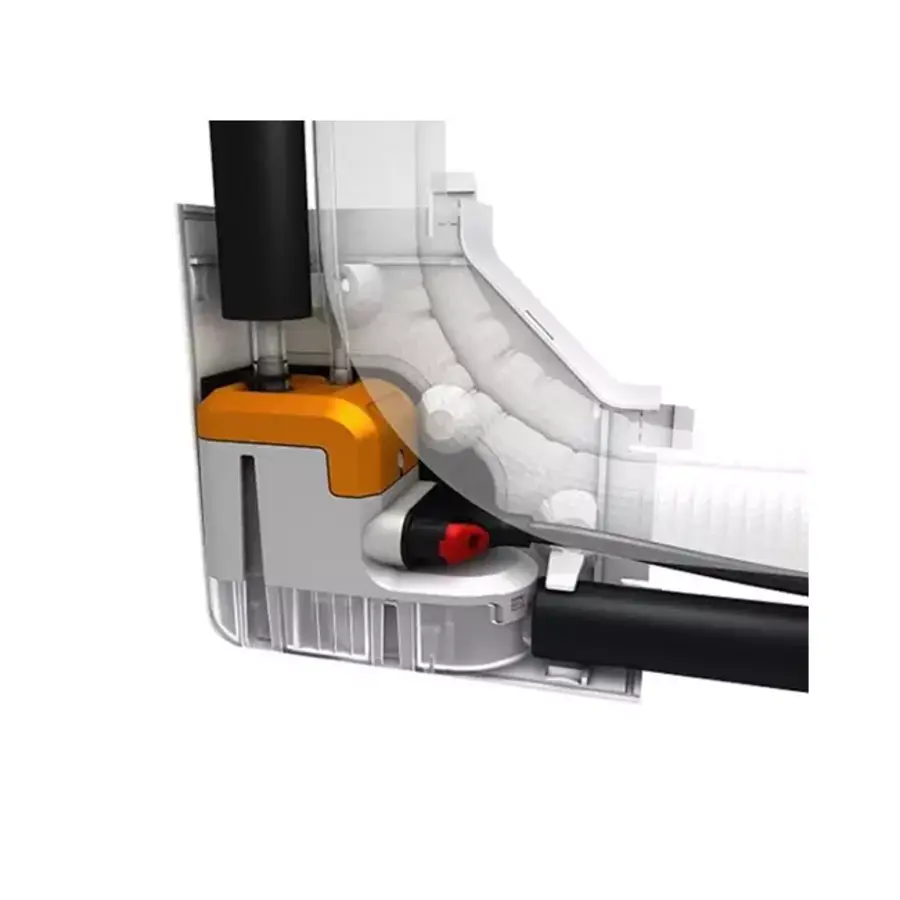

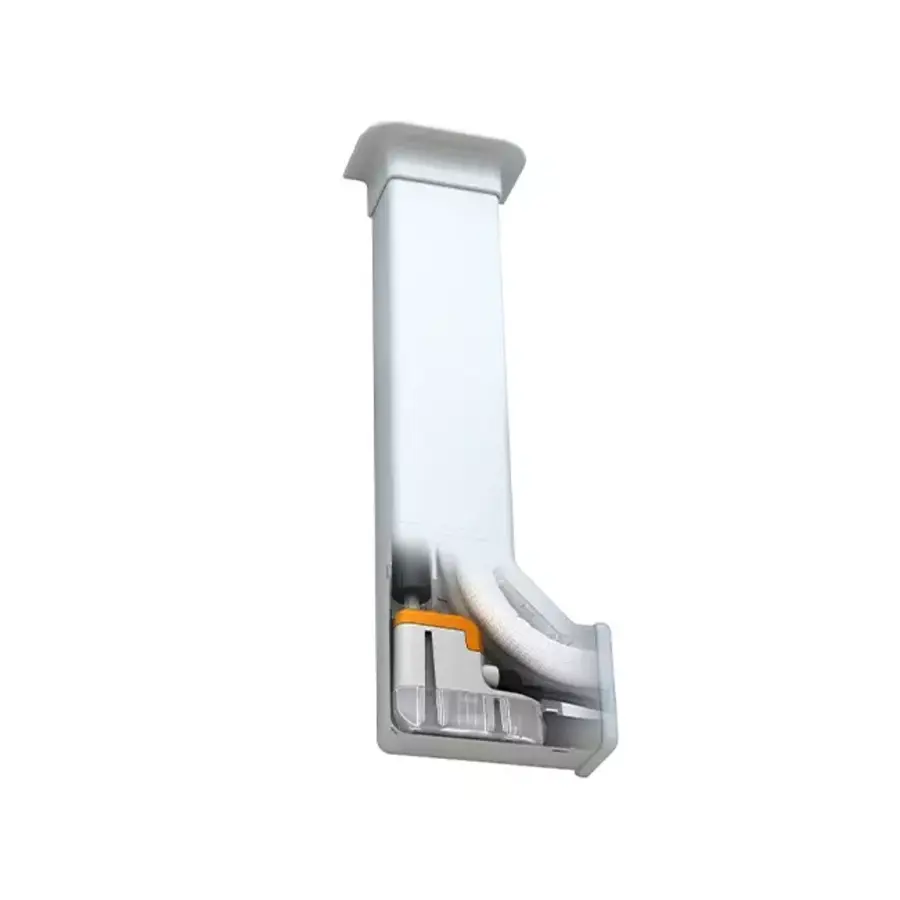

This angled condensate pump offers an all-in-one solution for condensate drainage, where the technology is completely concealed by an elegant mounting channel. At the heart of this set is a high-quality piston pump that, despite its compact size, delivers an impressive flow rate of 20 liters per hour. Thanks to patented pump technology, the unit operates extremely quietly and vibration-free, which is essential for installations in living spaces, offices, or hotel rooms. The included elbow channel is specifically designed to connect seamlessly to wall-mounted air conditioning systems, allowing pipes and cables to be concealed in a professional manner. Furthermore, the pump is equipped with a reliable alarm contact that prevents water damage by shutting down the system in the event of a blockage or malfunction. The robust construction is resistant to contamination in the condensate, significantly extending maintenance intervals and ensuring years of trouble-free operation. A durable and aesthetically pleasing choice for any modern climate control system where a visible drain is undesirable.

Specifications

• Maximum pump capacity: 20 liters per hour

• Maximum delivery head: 10 meters (vertical)

• Finish: Includes ivory white mounting channel (RAL 9001)

• Noise level: Very quiet operation, only 22 dB(A)

• Technology: Patented vibration-free piston pump

• Safety: Built-in flood alarm contact (NC 8A)

• Application: Wall-mounted air conditioning up to 20 kW

• Set contents: Pump unit, float, elbow duct, ceiling rose and mounting material
