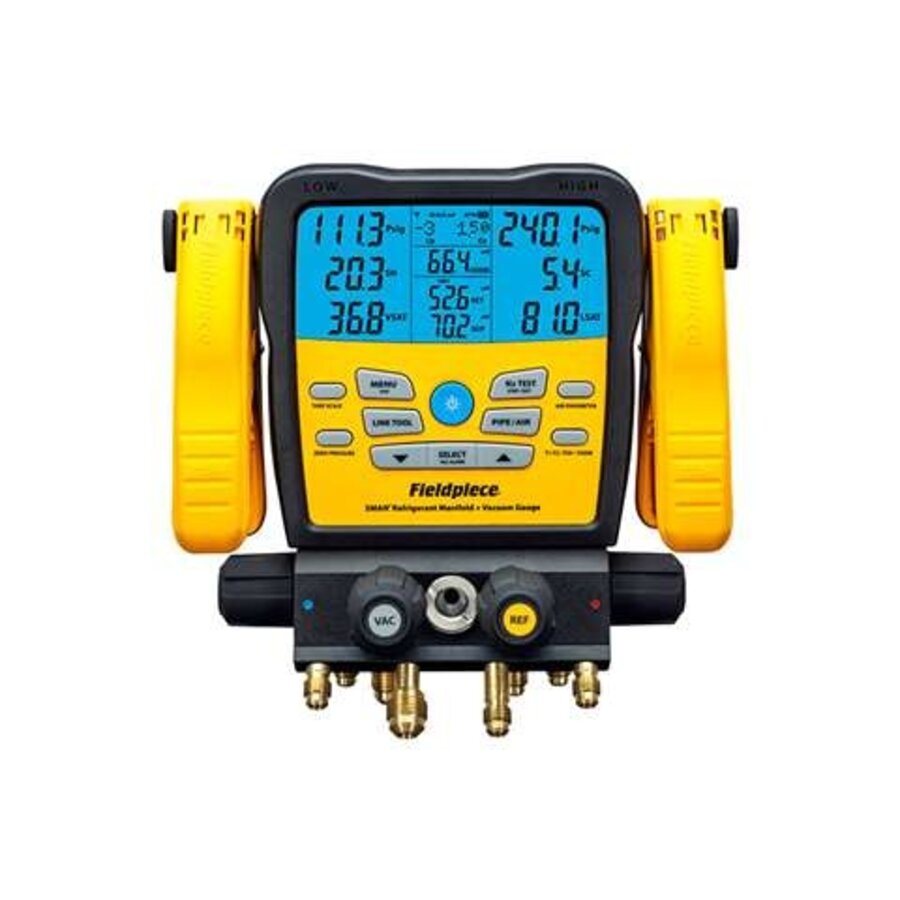

This cordless 4-way manifold has been developed for the installation, diagnosis, and maintenance of professional HVACR systems. The instrument combines pressure, temperature, and vacuum measurements in one robust design and is suitable for working on systems with A1, A2L, and A3 refrigerants.

Via the wireless Job Link connection, measurements from compatible wireless instruments can be received up to a maximum distance of 300 meters. The measurement data is immediately visible on the large illuminated display or via the accompanying app. Additionally, a third JL3RHINT psychrometer can be connected directly to the manifold.

The built-in vacuum and micrometer supports accurate monitoring of the vacuuming process. With the temperature-compensated system leak test, the pressure difference can be monitored over a set period. The data logging capability makes it easier to capture measurement results and evaluate them afterwards.

The manifold features easily accessible port fittings, a practical mounting hook, and a robust, IP55 water-resistant housing. The user interface supports twelve languages, and the illuminated display remains clearly legible even in dimly lit technical rooms.

Specifications:

• Product type: digital 4-way manifold

• Model: SMAN

• Article number: FPI-0010-000

• Number of roads: 4

• Wireless connection: Job Link

• Wireless range: up to 300 meters

• Display of wireless measurements on display: yes

• View via app: yes

• Display: large and illuminated

• Built-in micrometer: yes

• Built-in vacuum gauge: yes

• System density test: yes

• Temperature-compensated leak test: yes

• Data logging: yes

• Number of languages: 12

• Suitable for A1 refrigerants: yes

• Suitable for A2L refrigerants: yes

• Suitable for A3 refrigerants: yes

• Connection for third psychrometer: yes

• Compatible third psychrometer: JL3RHINT

• Gate fittings: easily accessible

• Mounting hook: yes

• Protection class: IP55

• Housing: robust

• Application: installation, diagnosis, and maintenance of HVACR systems
