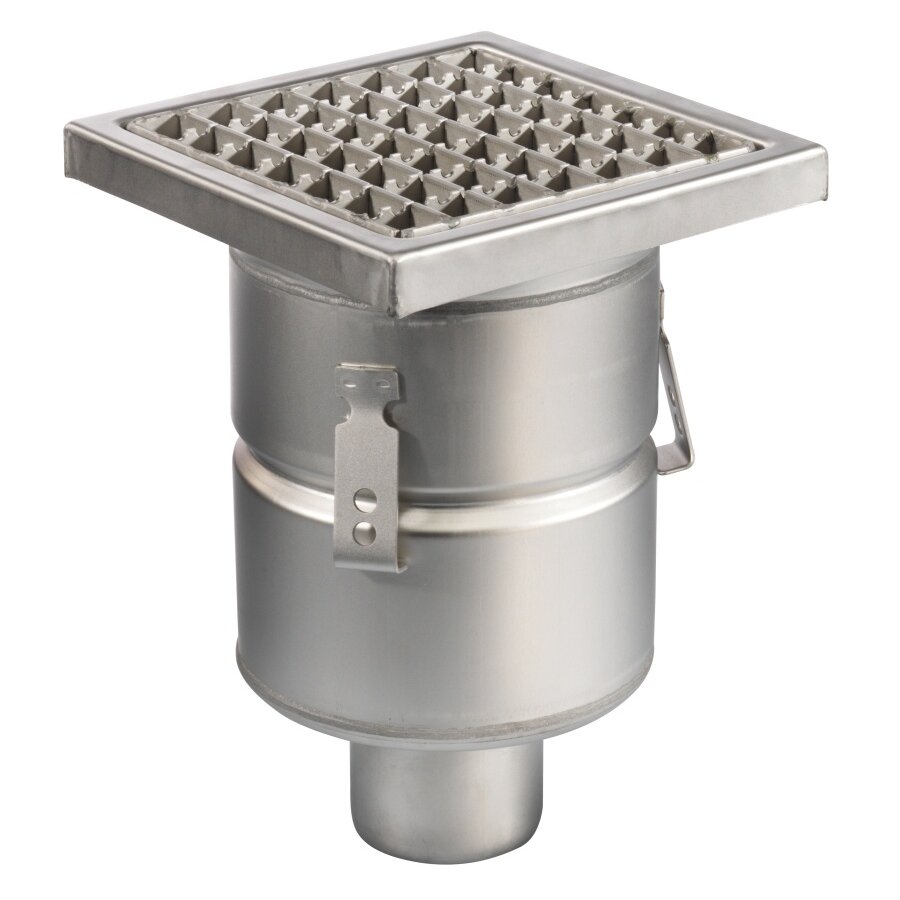

HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | vertical connection | 3.70 l/s
HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | vertical connection | 3.70 l/s




- Availability:
In stock
- Brand: HorecaTraders
- Article code: HT177001
- Garantie: 1 year
offer valid until: t/m 30-05-2025
-
Description
EAN 8717775935353 Connection Bottom connection

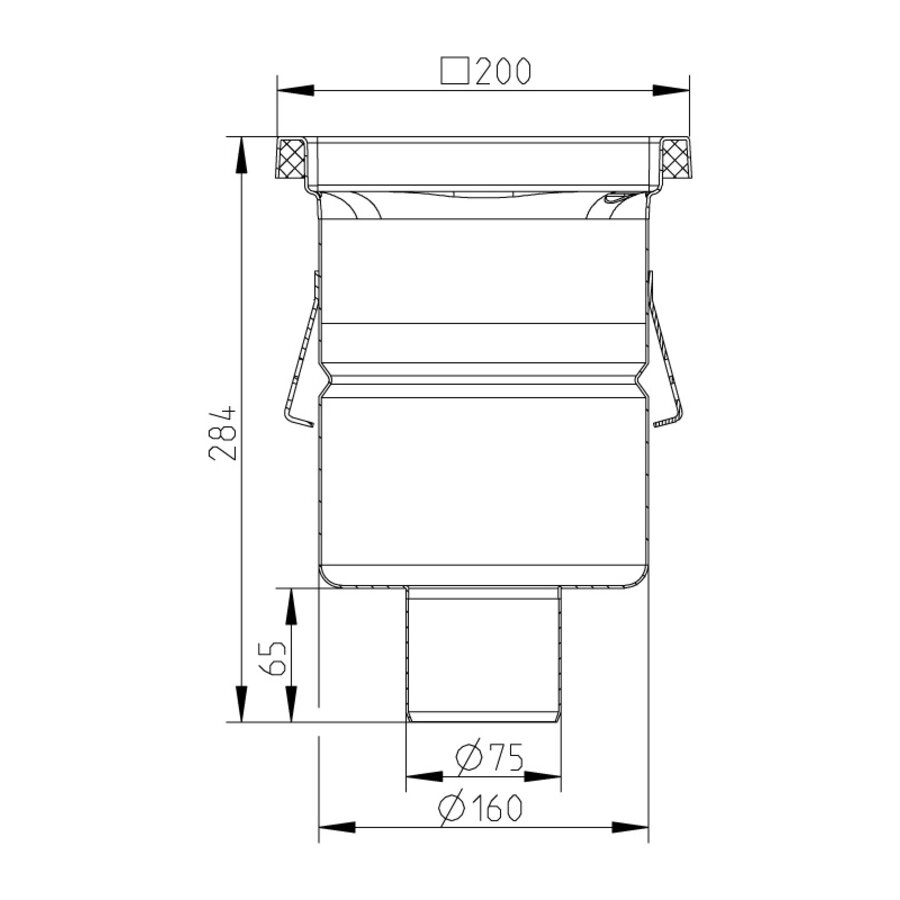

Installation depth 219 mm
Grounding point Yes
Size 200 x 200 mm
Anti-slip value grid R12
Tax Schedule 15 kN (1,500 kg)
Load class grating EN 1253 L15 (1,500 kg)
Capacity (max.) 3.70 l/s
Construction grid Maas grid
Connection diameter ø 75 mm
Bucket No
Material Stainless steel 304
Material odor trap Stainless steel AISI 316L (EN 1.4404)
Material grid Stainless steel AISI 304 (EN 1.4301)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Material dirt collection basket Stainless steel AISI 304 (EN 1.4301)
Material thickness grid 3.0mm
Surface treatment grid Pickled, passivated
Product protection Mortar lid
Scent lock 50 mm
Removable odour trap Two-piece with handle
Slot width grid 20.0 mm
Mortar cover for shell construction or prefabricated Yes
Application Hospitality, Industry, Utilities
Locked grid No
Glueable No
Adjustability Not adjustable in height
Floor drain standard EN 1253
Dirt collection basket volume 0.90 l
Shape grid Square, square holes
Dirt collection basket Yes
Water lock standard EN 1253
-
