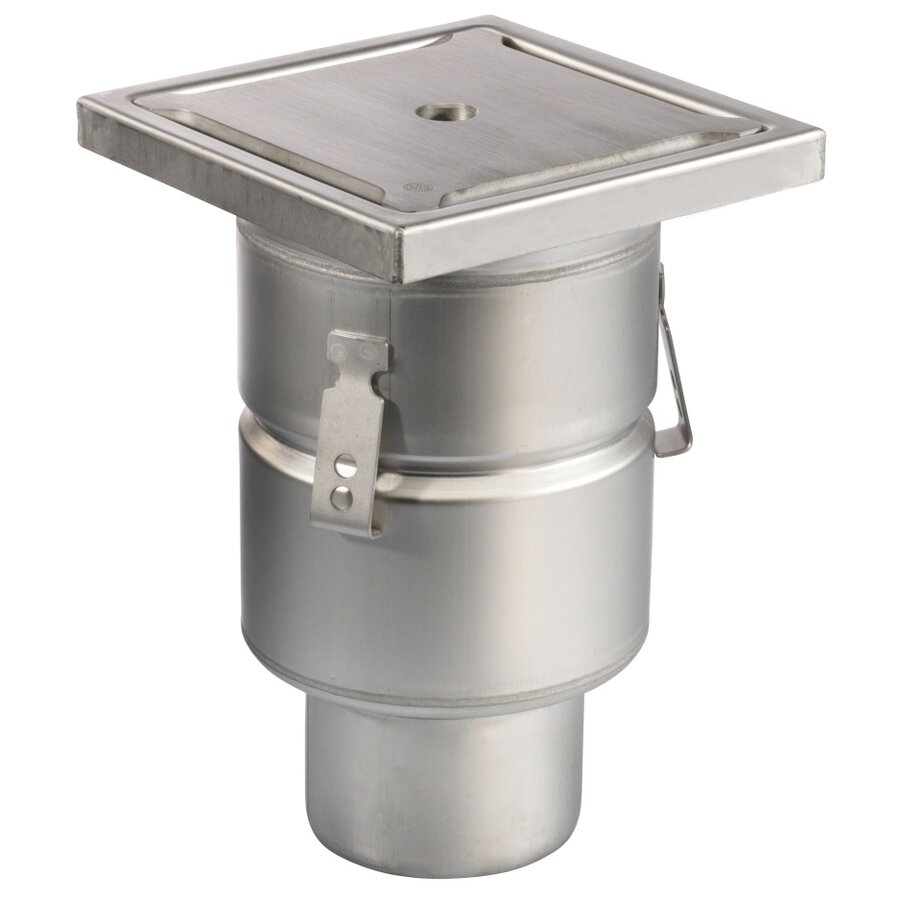

HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | vertical connection | 3.70 l/s
HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | vertical connection | 3.70 l/s




- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT177006
- Garantie: 1 year
offer valid until: t/m 30-05-2025
-
Description
EAN 8717775935407 Connection Bottom connection
Installation depth 219 mm
Grounding point Yes

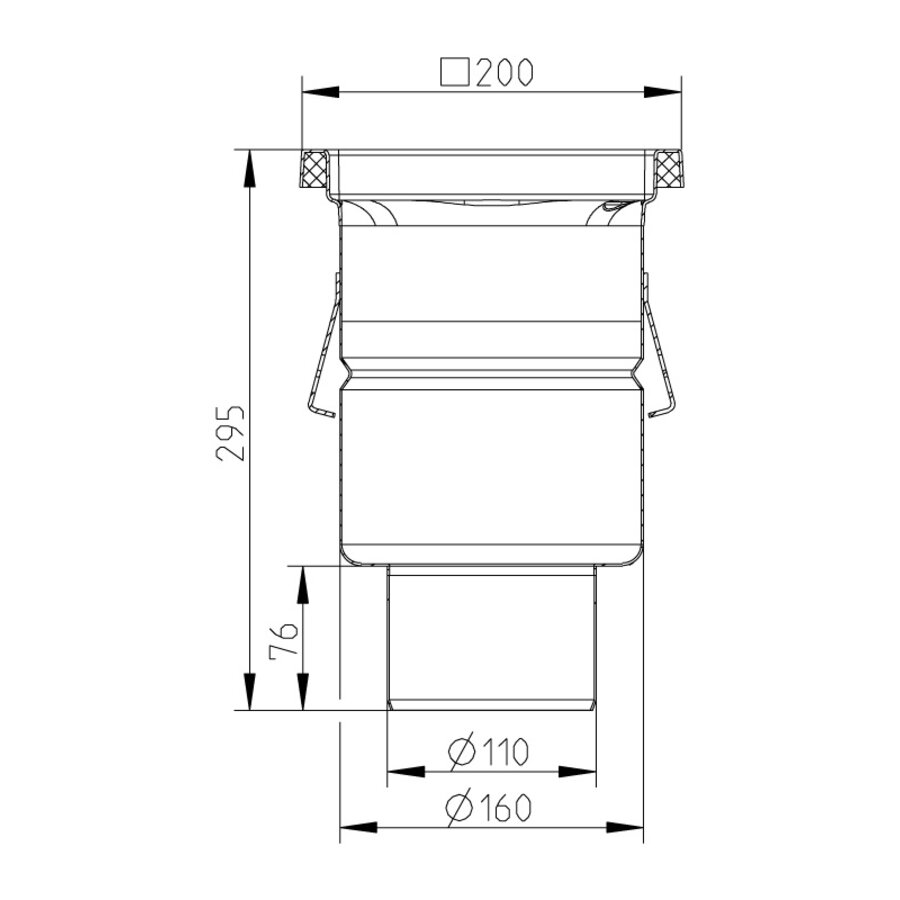

Size 200 x 200 mm
Anti-slip value grid R10
Tax Schedule 50 kN (5,000 kg)
Load class grating EN 1253 R50 (5,000 kg)
Capacity (max.) 3.70 l/s
Construction grid Plate cover
Connection diameter ø 110 mm
Bucket No
Material Stainless steel 304
Material odor trap Stainless steel AISI 316L (EN 1.4404)
Material grid Stainless steel AISI 304 (EN 1.4301)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Material dirt collection basket Stainless steel AISI 304 (EN 1.4301)
Material thickness grid 10.0 mm
Surface treatment grid Pickled, passivated, brushed
Product protection Mortar lid
Scent lock 50 mm
Removable odour trap Two-piece with handle
Slot width grid 10.0 mm
Mortar cover for shell construction or prefabricated Yes
Application Hospitality, Industry, Utilities
Locked grid No
Glueable No
Adjustability Not adjustable in height
Floor drain standard EN 1253
Dirt collection basket volume 0.90 l
Shape grid Square, slotted holes
Dirt collection basket Yes
Water lock standard EN 1253
-
Reviews (0)
EAN | 8717775935407 |
---|
Connection |
Bottom connection |
---|---|
Installation depth |
219 mm |
Grounding point |
Yes |
Size |
200 x 200 mm |
Anti-slip value grid |
R10 |
Tax Schedule |
50 kN (5,000 kg) |
Load class grating EN 1253 |
R50 (5,000 kg) |
Capacity (max.) |
3.70 l/s |
Construction grid |
Plate cover |
Connection diameter |
ø 110 mm |
Bucket |
No |
Material |
Stainless steel 304 |
Material odor trap |
Stainless steel AISI 316L (EN 1.4404) |
Material grid |
Stainless steel AISI 304 (EN 1.4301) |
Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
Material dirt collection basket |
Stainless steel AISI 304 (EN 1.4301) |
Material thickness grid |
10.0 mm |
Surface treatment grid |
Pickled, passivated, brushed |
Product protection |
Mortar lid |
Scent lock |
50 mm |
Removable odour trap |
Two-piece with handle |
Slot width grid |
10.0 mm |
Mortar cover for shell construction or prefabricated |
Yes |
Application |
Hospitality, Industry, Utilities |
Locked grid |
No |
Glueable |
No |
Adjustability |
Not adjustable in height |
Floor drain standard |
EN 1253 |
Dirt collection basket volume |
0.90 l |
Shape grid |
Square, slotted holes |
Dirt collection basket |
Yes |
Water lock standard |
EN 1253 |
