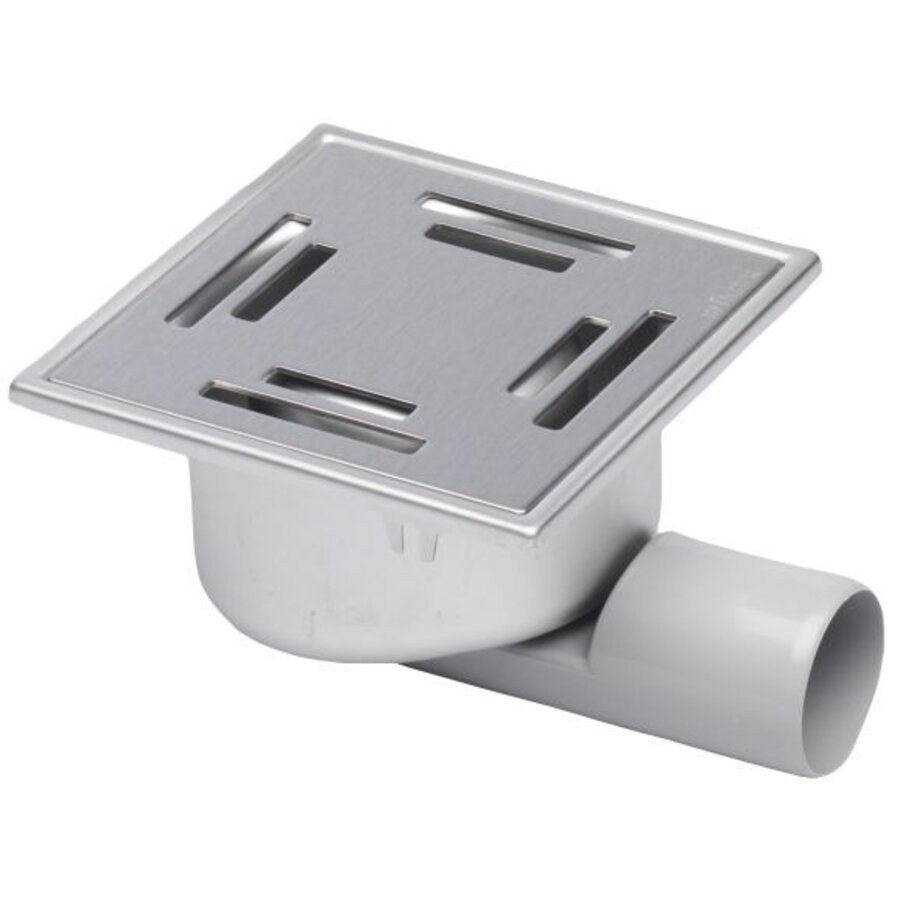

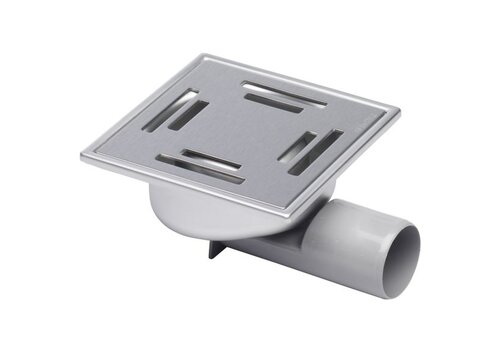

The Compact floor drain 184.152.050 is a stainless steel drainage solution for bathrooms and renovation projects, among others. With dimensions of 147 × 147 mm, a combined side and bottom connection, and an installation depth of 80 or 95 mm, this version is suitable for installations requiring a deeper installation.

Stainless steel version with polished grate

The floor drain and grate are made of stainless steel AISI 304. The grate has a ground finish, a thickness of 2 mm, and slots 8 mm wide. The floor drain is pickled, making sanding unnecessary.

Drainage and odor sealing

The floor drain has a connection diameter of 50 mm and a maximum drainage capacity of 0.50 to 0.70 liters per second. The removable odor trap has a height of 50 mm. Additionally, the floor drain is equipped with an earthing point.

Practical installation

The floor drain is glueable and suitable for use with Mosa. The grate has an anti-slip rating of R10 and load class K3 according to EN 1253, with a maximum load of 3 kN (300 kg).

The Compact floor drain 184.152.050 combines a compact design with a robust stainless steel construction and connection options for various sanitary installations.
