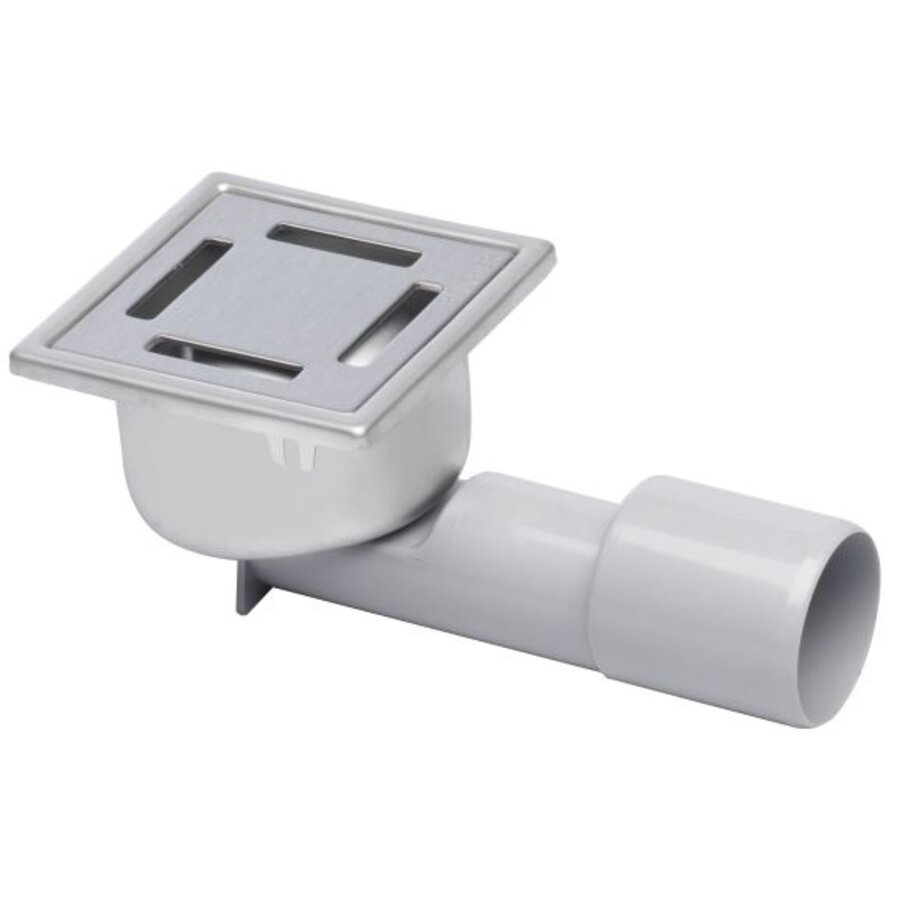

The Blücher Compact floor drain 184.100.040 is a compact stainless steel drainage solution with an updated grate design and a brushed finish. Thanks to its dimensions of 97 × 97 mm and shallow installation depth, this floor drain is suitable for various sanitary spaces, bathrooms, and renovation projects.

Flexible connection options

The floor drain features both a side and a bottom connection. The connection has a diameter of ø 40–50 mm. With a maximum drainage capacity of 0.40 to 0.50 liters per second, this model offers a practical solution for various drainage situations.

Durable stainless steel version

The floor drain and grate are manufactured from stainless steel AISI 304. The grate has a ground finish and a slot width of 6 mm. The pickled version of the floor drain eliminates the need for sanding.

Practical installation

The floor drain has an installation depth of 60 or 80 mm and is equipped with an earth connection. The removable odor trap has a height of 25 mm. Additionally, the floor drain can be glued down, offering extra possibilities during installation.

The Blücher Compact 184.100.040 combines a compact size, flexible connection options, and a low-maintenance stainless steel design for sanitary installations and renovation work.

Specifications

• Product series: Blücher Compact

• Model number: 184.100.040

• Dimensions: 97 × 97 mm

• Material: Stainless Steel 304 (AISI 304)

• Installation depth: 60 or 80 mm

• Discharge capacity: 0.40–0.50 l/s

• Connection: Side and bottom connection

• Connection diameter: Ø 40–50 mm

• Smell lock height : 25 mm

• Grate material : Stainless steel 304

• Grille finish : Polished

• Grille slot width: 6 mm

• Tax class: K3

• Grounding connection: Yes

• Glueable: Yes
