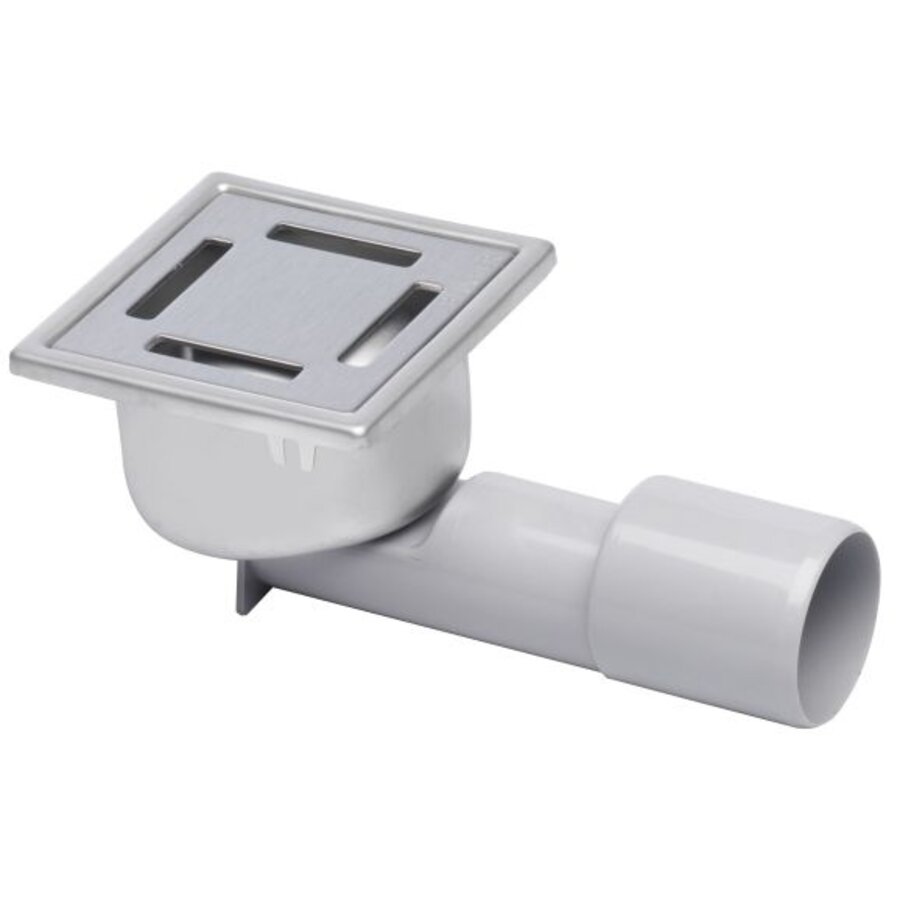

The Blücher Compact floor drain 184.100.040 is a compact floor drain for the efficient drainage of water in concrete and tiled floors. With dimensions of 9.7 x 9.7 cm and a shallow installation depth, this floor drain is particularly suitable for bathrooms, sanitary areas, and renovation projects.

The floor drain combines a top made of AISI 304 stainless steel with a plastic drain section. Thanks to the option for both a side and bottom connection, the product offers flexibility during installation.

High-quality stainless steel AISI 304

The top of the floor drain is manufactured from stainless steel AISI 304 (EN 1.4301) . This type of stainless steel has good corrosion resistance and is suitable for applications in damp environments.

The stainless steel finish ensures a polished appearance and complements modern tiled floors and sanitary installations.

The plastic drain section is manufactured from ABS , a sturdy plastic suitable for this application.

Compact size of 9.7 x 9.7 cm

Thanks to the compact square design, the floor drain takes up little space.

With dimensions of 9.7 x 9.7 cm, the floor drain can be integrated into various floor designs without the need for a large drain opening.

The floor drain is designed for installation in concrete and tiled floors .

Side and bottom connection in a single floor drain

An important advantage of this Compact floor drain is the ability to connect the drain both horizontally and vertically .

The plastic drain construction offers connection options with diameters of 4 and 5 cm , depending on the chosen connection direction.

This allows the installer to choose the most suitable drainage route based on the available space and the existing pipe structure.

Shallow installation depth

The floor drain has a compact design with an installation depth of 6 to 8 cm , depending on the connection method.

This makes the product interesting for situations where limited space is available under the floor.

The floor drain is not height-adjustable. Therefore, check the available installation space and the desired floor finish before installation.

Drainage capacity up to 0.5 liters per second

The floor drain has a maximum drainage capacity of 0.4 to 0.5 liters per second , depending on the connection configuration.

This makes the product suitable for a wide range of sanitary applications where a compact and functional floor drain is desired.

2.5 cm water seal

The floor drain is equipped with a water seal with a height of 2.5 cm .

This water seal helps prevent unpleasant sewer odors from entering the room through the drain, as long as the water seal remains sufficiently filled.

For maintenance, the water seal can be removed, making the drain more easily accessible for cleaning.

Suitable for concrete and tile floors

The Compact floor drain has been developed for installation in concrete and tiled floors.

Thanks to its compact design and flexible connection options, this floor drain is a practical choice for bathrooms, sanitary areas, and renovation work.

The combination of AISI 304 stainless steel, a plastic drain section, a 2.5 cm water seal, and a double connection option makes the Blücher Compact floor drain 184.100.040 a versatile solution for professional floor drainage installations.

Specifications

Article code: 184.100.040
EAN: 5705499002034
Brand: Blücher
Series: Compact
Product type: Floor drain / floor drain
Shape: Square
Top material: Stainless steel AISI 304 (EN 1.4301)
Discharge section material: ABS plastic
Top color: Stainless steel
Top dimensions: 9.7 x 9.7 cm
Width: 9.7 cm
Length: 9.7 cm
Total height: 8 cm
Installation depth: 6 to 8 cm, depending on the connection method
Connection options: Side and bottom connection
Connection diameter: Ø 4/5 cm
Bottom connection: Ø 4 cm
Side connection: Ø 4/5 cm
Maximum discharge capacity: 0.4 to 0.5 l/s
Water seal height: 2.5 cm
Removable water seal: Yes
Suitable for concrete floors: Yes
Suitable for tiled floors: Yes
Height adjustable: No
Load class: K3 according to EN 1253
Maximum grid load: 3 kN
Weight: 0.41 kg
Application: Bathrooms, sanitary areas, and renovation projects
Order unit: 1 piece
