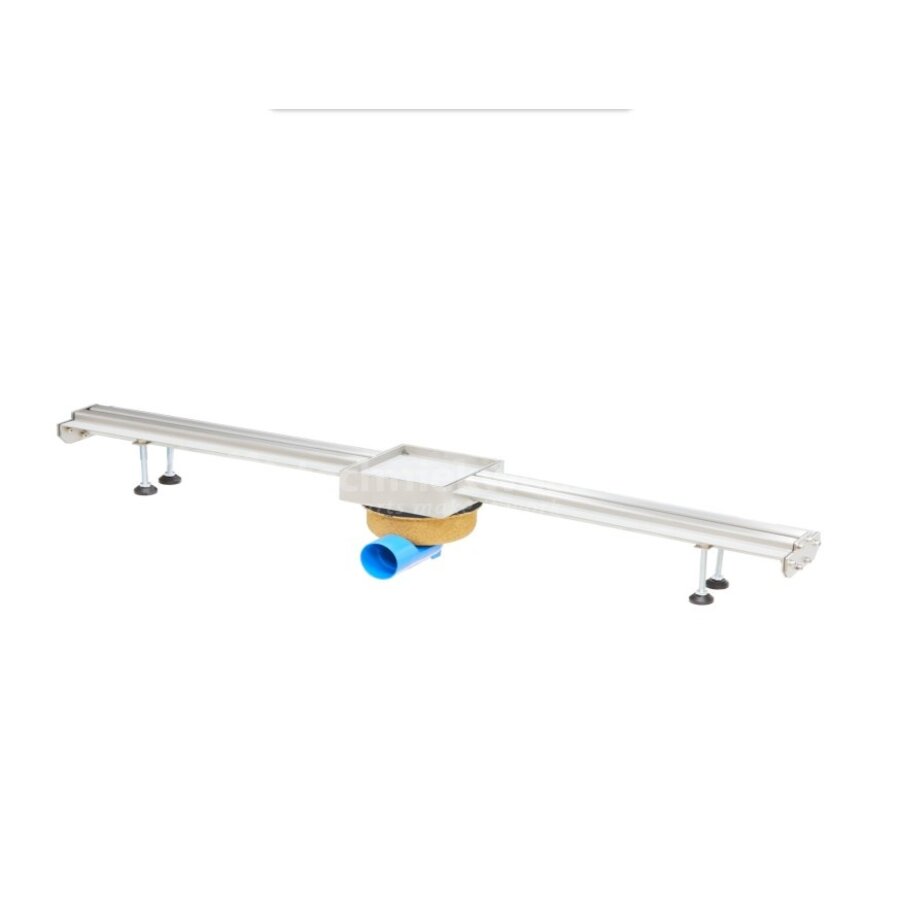

HorecaTraders Slotted channel connectable stainless steel 1000x50mm inlet slot 8mm with outlet 50mm (tile drain)
HorecaTraders Slotted channel connectable stainless steel 1000x50mm inlet slot 8mm with outlet 50mm (tile drain)


Image 1 / 2


Van den Berg PRO-LINE shower channel
- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT660.1000
- Garantie: 1 year
€640,50
€519,56
(€628,67 Incl. BTW)
offer valid until: t/m 30-07-2025
-
Description
Packaging Piece(s) Manufacturer Series PRO-LINE Form Rectangular Connection Sliding sleeve Lockable No Discharge capacity 0.50 l/s Width of grid 146 mm Soundproof No Suitable for concrete floor Yes Suitable for coated floors Yes Suitable for plastic floors Yes Suitable for wall mounting No Suitable for waterproof subfloor No Gloss level Mat Height of grid 44 mm Floor covering height 0 mm Installation depth 133 mm Color grid Stainless steel (SS) Quality class gutter Stainless steel 316 L (1.4404) Quality class grid Stainless steel 316 (1.4401) Length of grid 146 mm Loose edge No Material gutter Stainless steel (SS) Material grid Stainless steel (SS) Material thickness grid 2mm With fire-resistant cuff No With grid Yes With siphon Yes Nom. diameter connection DN 50 Surface treatment grid Brushed Surface protection grid None (untreated) Direction of exhaust Horizontal/vertical Grill for glass No Grid for tiles Yes Type of odor lock Other Removable water lock Yes External tube diameter 50 mm mm Widened sealing flange No Adjustable attachment No Adjustable height No Shape grid perforation Other Water seal height 30 mm -
Reviews (0)
Packaging | Piece(s) |
Manufacturer Series | PRO-LINE |
Form | Rectangular |
Connection | Sliding sleeve |
Lockable | No |
Discharge capacity | 0.50 l/s |
Width of grid | 146 mm |
Soundproof | No |
Suitable for concrete floor | Yes |
Suitable for coated floors | Yes |
Suitable for plastic floors | Yes |
Suitable for wall mounting | No |
Suitable for waterproof subfloor | No |
Gloss level | Mat |
Height of grid | 44 mm |
Floor covering height | 0 mm |
Installation depth | 133 mm |
Color grid | Stainless steel (SS) |
Quality class gutter | Stainless steel 316 L (1.4404) |
Quality class grid | Stainless steel 316 (1.4401) |
Length of grid | 146 mm |
Loose edge | No |
Material gutter | Stainless steel (SS) |
Material grid | Stainless steel (SS) |
Material thickness grid | 2mm |
With fire-resistant cuff | No |
With grid | Yes |
With siphon | Yes |
Nom. diameter connection | DN 50 |
Surface treatment grid | Brushed |
Surface protection grid | None (untreated) |
Direction of exhaust | Horizontal/vertical |
Grill for glass | No |
Grid for tiles | Yes |
Type of odor lock | Other |
Removable water lock | Yes |
External tube diameter | 50 mm mm |
Widened sealing flange | No |
Adjustable attachment | No |
Adjustable height | No |
Shape grid perforation | Other |
Water seal height | 30 mm |
