HorecaTraders R-Line stainless steel shower drain with wall flange 700x62mm ZU. 40mm blind stainless steel grid, water seal 25mm (installation height 65mm)
HorecaTraders R-Line stainless steel shower drain with wall flange 700x62mm ZU. 40mm blind stainless steel grid, water seal 25mm (installation height 65mm)




- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT668.700
- Garantie: 1 year
offer valid until: t/m 30-07-2025
-
Description

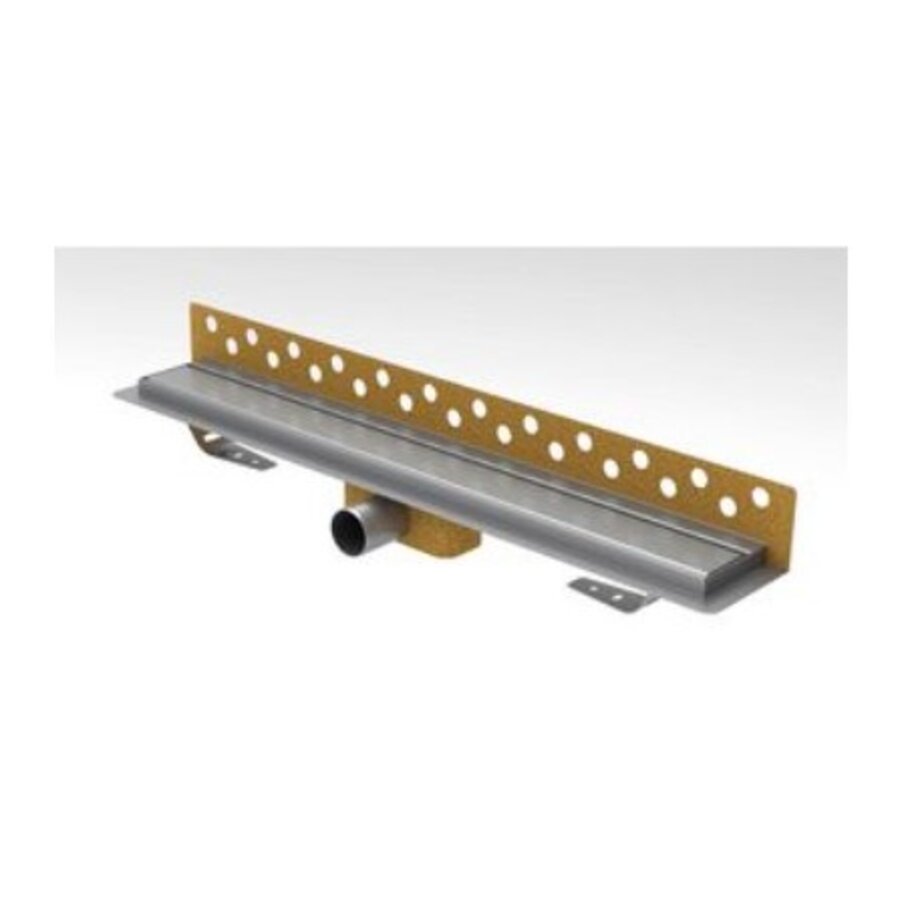

Stainless steel 304 shower drain with grid
• fitted with a blind grille as standard
• fitted with sand skin as standard
• fitted with wall flange as standard
• discharge capacity 0.5 l/sec
• removable plastic water lock 25 mm
• equipped with 40 mm side exhaust
• grounding point present
• with collapse anchors
• ideal for renovation, installation height 65 mm
• collapse flange around gutter
• easy to connect using the supplied sliding socket Ø 40 mm- Packaging unit: 1
- Product group: 31
- Item group: 3409
- GTIN number: 08718734175827
- Stock Item: No
- Connection: Other
- Lockable: No
- Discharge capacity: 0.5 l/s
- Width: 62 mm
- Grill width: 56 mm
- Soundproof: No
- Suitable for concrete floor: Yes
- Suitable for coated floors: Yes
- Suitable for plastic floors: No
- Suitable for wall mounting: Yes
- Suitable for waterproof subfloor: No
- Gloss level: Matte
- Height: 65 mm
- Grill height: 20 mm
- Floor covering height: 15 - 15 mm
- Installation depth: 65 mm
- Grill color: Stainless steel (stainless steel)
- Gutter quality class: stainless steel 304 (1.4301)
- Quality class grate: stainless steel 304 (1.4301)
- Length: 700 mm
- Grill length: 695 mm
- Loose edge: No
- Gutter material: Stainless steel (stainless steel)
- Grill material: Stainless steel (RVS)
- Grille material thickness: 1.5 mm
- Brand: Van den Berg
- With fire-resistant cuff: No
- With grid: Yes
- With siphon: Yes
- Nom. connection diameter: DN 40
- Grill surface treatment: Brushed
- Surface protection grid: Untreated
- Exhaust direction: Horizontal
- Glass grid: No
- Grid for tiles: No
- Series: Shower drains
- Type of scent lock: Other
- Type: R-Line
- Type approval according to BBR / EKS: No
- Removable water lock: Yes
- External tube diameter: 40 mm
- Widened sealing flange: No
- Adjustable attachment: No
- Adjustable height: No
- Shape: Rectangular
- Shape of grid perforation: None
- Water seal height: 25 mm
-
Reviews (0)
Stainless steel 304 shower drain with grid
• fitted with a blind grille as standard
• fitted with sand skin as standard
• fitted with wall flange as standard
• discharge capacity 0.5 l/sec
• removable plastic water lock 25 mm
• equipped with 40 mm side exhaust
• grounding point present
• with collapse anchors
• ideal for renovation, installation height 65 mm
• collapse flange around gutter
• easy to connect using the supplied sliding socket Ø 40 mm
- Packaging unit: 1
- Product group: 31
- Item group: 3409
- GTIN number: 08718734175827
- Stock Item: No
- Connection: Other
- Lockable: No
- Discharge capacity: 0.5 l/s
- Width: 62 mm
- Grill width: 56 mm
- Soundproof: No
- Suitable for concrete floor: Yes
- Suitable for coated floors: Yes
- Suitable for plastic floors: No
- Suitable for wall mounting: Yes
- Suitable for waterproof subfloor: No
- Gloss level: Matte
- Height: 65 mm
- Grill height: 20 mm
- Floor covering height: 15 - 15 mm
- Installation depth: 65 mm
- Grill color: Stainless steel (stainless steel)
- Gutter quality class: stainless steel 304 (1.4301)
- Quality class grate: stainless steel 304 (1.4301)
- Length: 700 mm
- Grill length: 695 mm
- Loose edge: No
- Gutter material: Stainless steel (stainless steel)
- Grill material: Stainless steel (RVS)
- Grille material thickness: 1.5 mm
- Brand: Van den Berg
- With fire-resistant cuff: No
- With grid: Yes
- With siphon: Yes
- Nom. connection diameter: DN 40
- Grill surface treatment: Brushed
- Surface protection grid: Untreated
- Exhaust direction: Horizontal
- Glass grid: No
- Grid for tiles: No
- Series: Shower drains
- Type of scent lock: Other
- Type: R-Line
- Type approval according to BBR / EKS: No
- Removable water lock: Yes
- External tube diameter: 40 mm
- Widened sealing flange: No
- Adjustable attachment: No
- Adjustable height: No
- Shape: Rectangular
- Shape of grid perforation: None
- Water seal height: 25 mm
