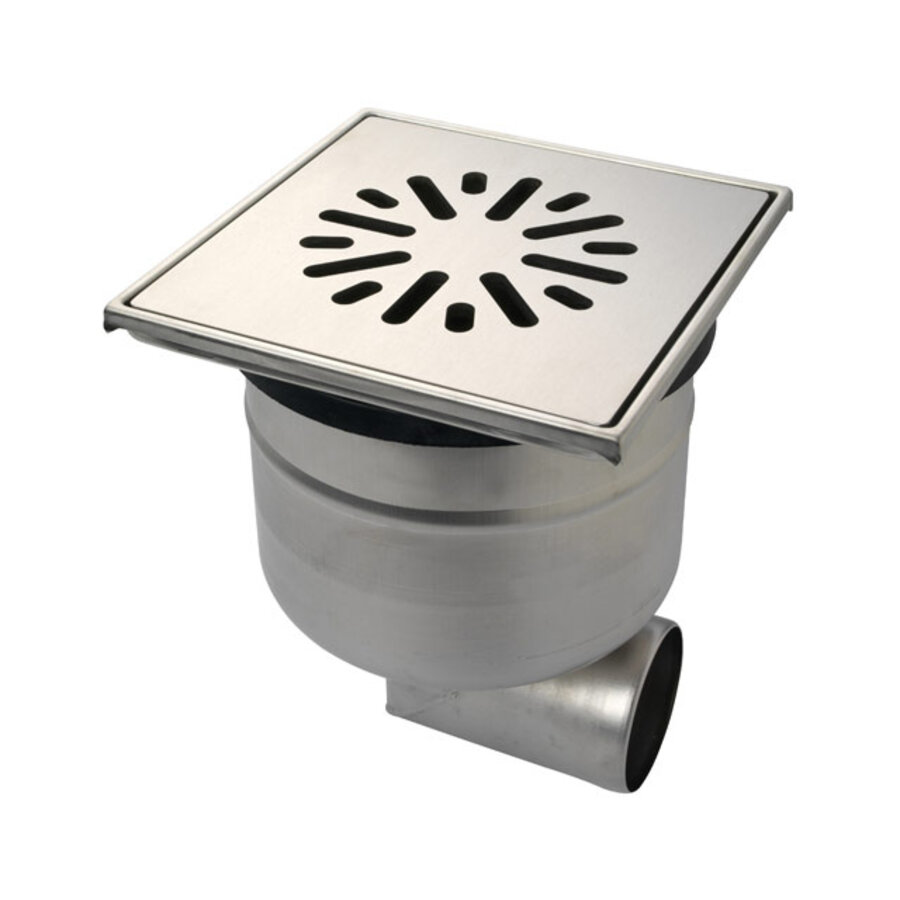

HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | horizontal connection | 1.60 l/s
HorecaTraders Floor drain | 200 x 200 mm | stainless steel 304 | horizontal connection | 1.60 l/s




- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT4620
- Garantie: 1 year
offer valid until: t/m 30-05-2025
-
Description
EAN 8717775930488 Connection Side connection
Installation depth 240 – 280 mm
Size 200 x 200 mm
Anti-slip value grid R10
Tax Schedule 30 kN (3,000 kg)
Load class grating EN 1253 L15 (1,500 kg)
Capacity (max.) 1.60 l/s
Connection diameter ø 75 mm
Diameter bucket ø 136 mm
Rotatable 360° Yes
Bucket Yes
Bucket height 103 mm
Tiltable Yes
Material Stainless steel 316
Cuff material SBR rubber
Material attachment Stainless steel AISI 316 (EN 1.4401)
Material odor trap PPC plastic
Material grid Stainless steel AISI 316 (EN 1.4401)
Floor drain material Stainless steel AISI 316 (EN 1.4401)
Material thickness grid 14.0 mm
Surface treatment grid Brushed
Placement advice Yes
Product protection Mortar lid
Scent lock 60 mm
Removable odour trap Yes
Slot width grid 10.0 mm
Application Industry, Utility
Locked grid No
Glueable No
Adjustable vertically 40 mm
Adjustability Adjustable in height
Floor drain standard EN 1253
Shape grid Square, slotted holes
Dirt collection basket No
Water lock standard EN 1253
-
