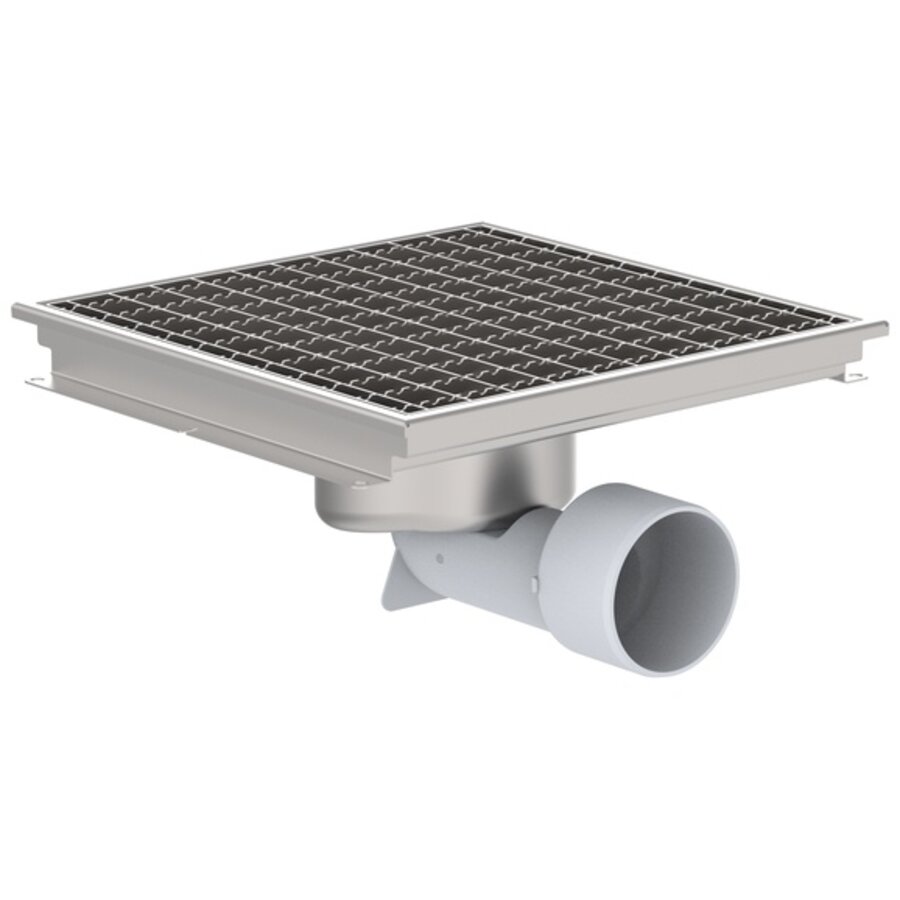

HorecaTraders Kitchen sink| Stainless steel | 397 x 397 mm 1.50 l/s - 2.00 l/s
HorecaTraders Kitchen sink| Stainless steel | 397 x 397 mm 1.50 l/s - 2.00 l/s




- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT66CFG004-05.24
- Garantie: 1 year
offer valid until: t/m 30-05-2025
-
Description
EAN 5705499140187 Connection Bottom connection
Installation depth 192 – 222 mm
Grounding point Yes

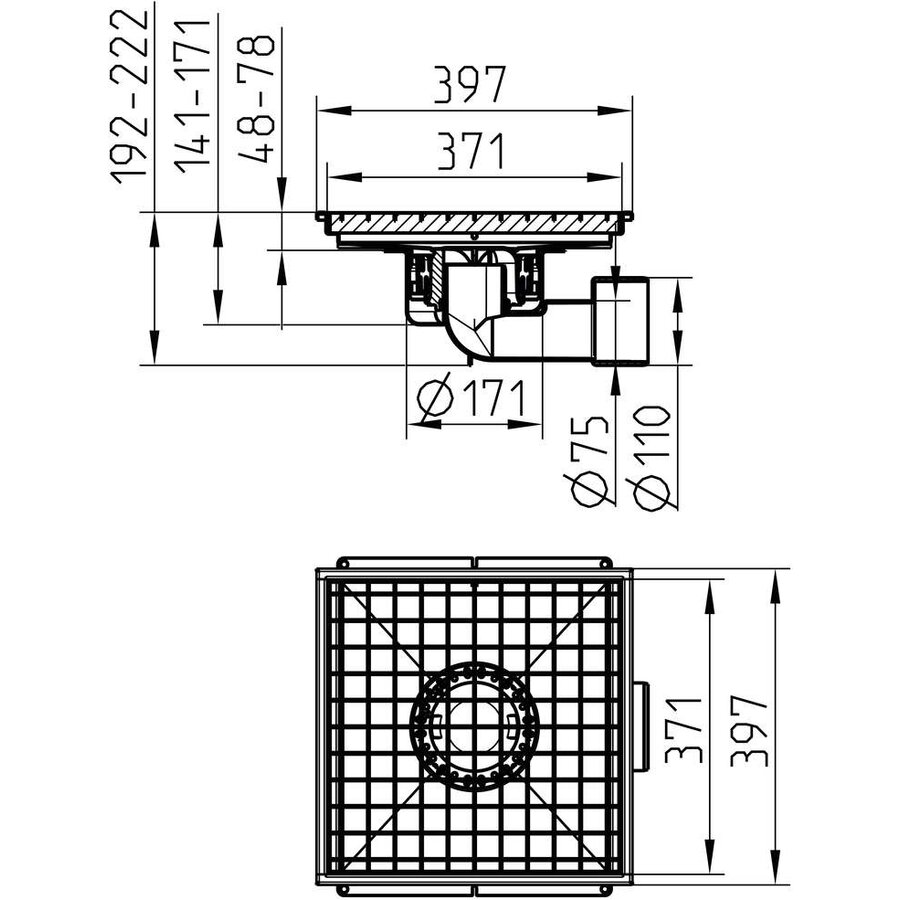

Size 397 x 397 mm
Anti-slip value grid R12
Tax Schedule 15 kN (1,500 kg)
Load class grating EN 1253 L15 (1,500 kg)
Capacity (max.) 1.50 l/s – 2.00 l/s
Construction grid Maas grid
Connection diameter ø 75 mm – ø 100 mm – ø 110 mm
Rotatable 360° Yes
Bucket No
Flange width 25 mm
Tiltable Yes
Material Stainless steel 304
Cuff material EPDM rubber
Material attachment Stainless steel AISI 304 (EN 1.4301)
Material odor trap PP plastic
Material grid Stainless steel AISI 304 (EN 1.4301)
Material/type of ring chamber EPDM rubber sleeve
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Material dirt collection basket PP plastic
Material thickness grid 2.0mm
Diaphragm flange Yes
Surface treatment grid Pickled, passivated
Placement advice Yes
Scent lock 50 mm
Removable odour trap Yes
Slot width grid 30 mm
Application Hospitality, Utilities
Locked grid No
Glueable Yes
Adjustable vertically 30 mm
Adjustability Adjustable in height
Floor drain standard EN 1253
Dirt collection basket volume 0.50 l
Shape grid Square, square holes
Dirt collection basket Yes
Water lock standard EN 1253
-
Reviews (0)
EAN | 5705499140187 |
---|
Connection |
Bottom connection |
---|---|
Installation depth |
192 – 222 mm |
Grounding point |
Yes |
Size |
397 x 397 mm |
Anti-slip value grid |
R12 |
Tax Schedule |
15 kN (1,500 kg) |
Load class grating EN 1253 |
L15 (1,500 kg) |
Capacity (max.) |
1.50 l/s – 2.00 l/s |
Construction grid |
Maas grid |
Connection diameter |
ø 75 mm – ø 100 mm – ø 110 mm |
Rotatable 360° |
Yes |
Bucket |
No |
Flange width |
25 mm |
Tiltable |
Yes |
Material |
Stainless steel 304 |
Cuff material |
EPDM rubber |
Material attachment |
Stainless steel AISI 304 (EN 1.4301) |
Material odor trap |
PP plastic |
Material grid |
Stainless steel AISI 304 (EN 1.4301) |
Material/type of ring chamber |
EPDM rubber sleeve |
Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
Material dirt collection basket |
PP plastic |
Material thickness grid |
2.0mm |
Diaphragm flange |
Yes |
Surface treatment grid |
Pickled, passivated |
Placement advice |
Yes |
Scent lock |
50 mm |
Removable odour trap |
Yes |
Slot width grid |
30 mm |
Application |
Hospitality, Utilities |
Locked grid |
No |
Glueable |
Yes |
Adjustable vertically |
30 mm |
Adjustability |
Adjustable in height |
Floor drain standard |
EN 1253 |
Dirt collection basket volume |
0.50 l |
Shape grid |
Square, square holes |
Dirt collection basket |
Yes |
Water lock standard |
EN 1253 |
