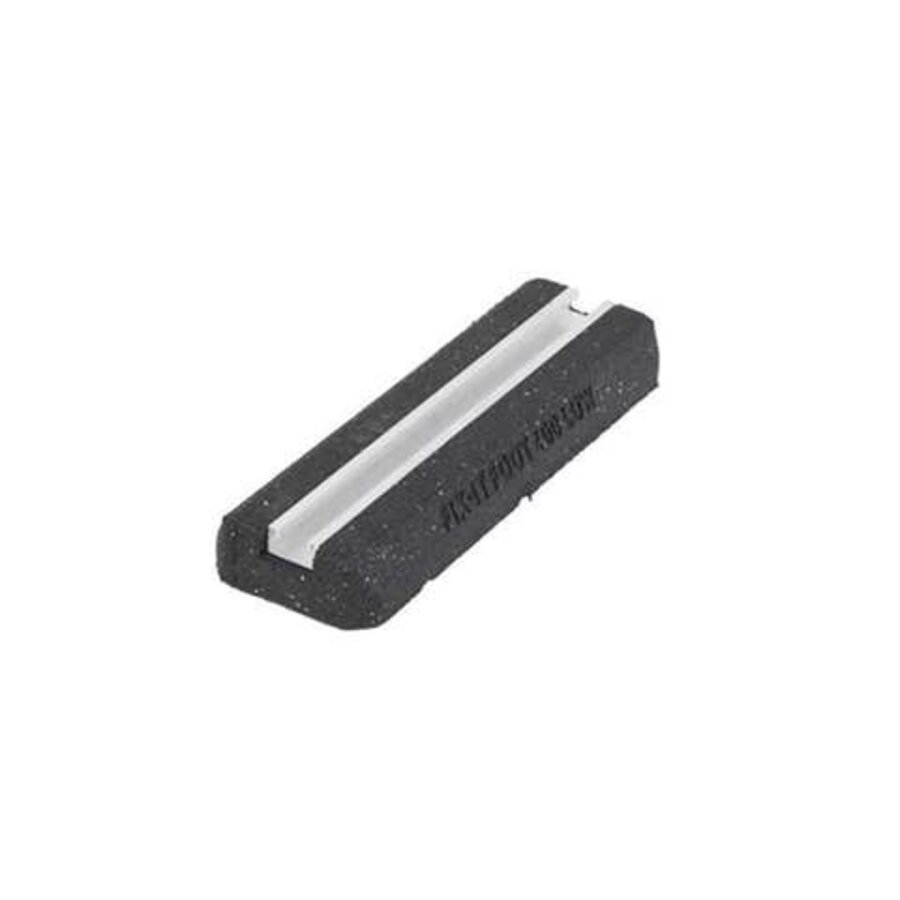

The Fix-it Foot Low is a sturdy and multifunctional mounting base for the stable placement of outdoor units, pipes, and cabling on flat roofs and various surfaces. Thanks to its low design of 400 x 130 x 50 mm, this base is ideal for applications where a limited installation height is desired. The rubber structure ensures stable support while simultaneously helping to reduce vibrations and contact noise.

A 41 x 20 mm aluminium profile is integrated into the rubber base. This provides a sturdy foundation for mounting technical installations. The material is UV-resistant and water-repellent, making the mounting base suitable for long-term use in outdoor environments. Additionally, the base features vibration and sound-absorbing properties, which is particularly practical for installations such as air conditioning and refrigeration outdoor units.

With a maximum static load capacity of 128 kg per block, the Fix-it Foot Low offers a solid foundation for various technical applications. The pedestal can be used both indoors and outdoors at temperatures ranging from -40°C to +80°C. Furthermore, thanks to its low profile, it is suitable for situations where sufficient stability is desired without significantly raising the installation.

Optional protective mats are available for installation on vulnerable PVC roofs. These can help provide extra protection to the roofing. The Fix-it Foot Low is supplied individually packaged and is suitable for professional applications in climate control, refrigeration, and the installation of technical systems.

Specifications:

• Type: Fix-it Foot Low
• Dimensions: 400 x 130 x 50 mm (L x W x H)
• Max. load capacity: 128 kg per block, static
• Material: rubber
• Embedded aluminium profile: 41 x 20 mm
• UV resistant
• Water repellent
• Vibration-absorbing
• Sound-absorbing
• Suitable for indoor and outdoor use
• Temperature range: -40°C to +80°C
• Suitable for outdoor units
• Suitable for pipes
• Suitable for cabling
• Suitable for flat roofs and various surfaces
• Optional protection mats for PVC roofs
• Individually wrapped
