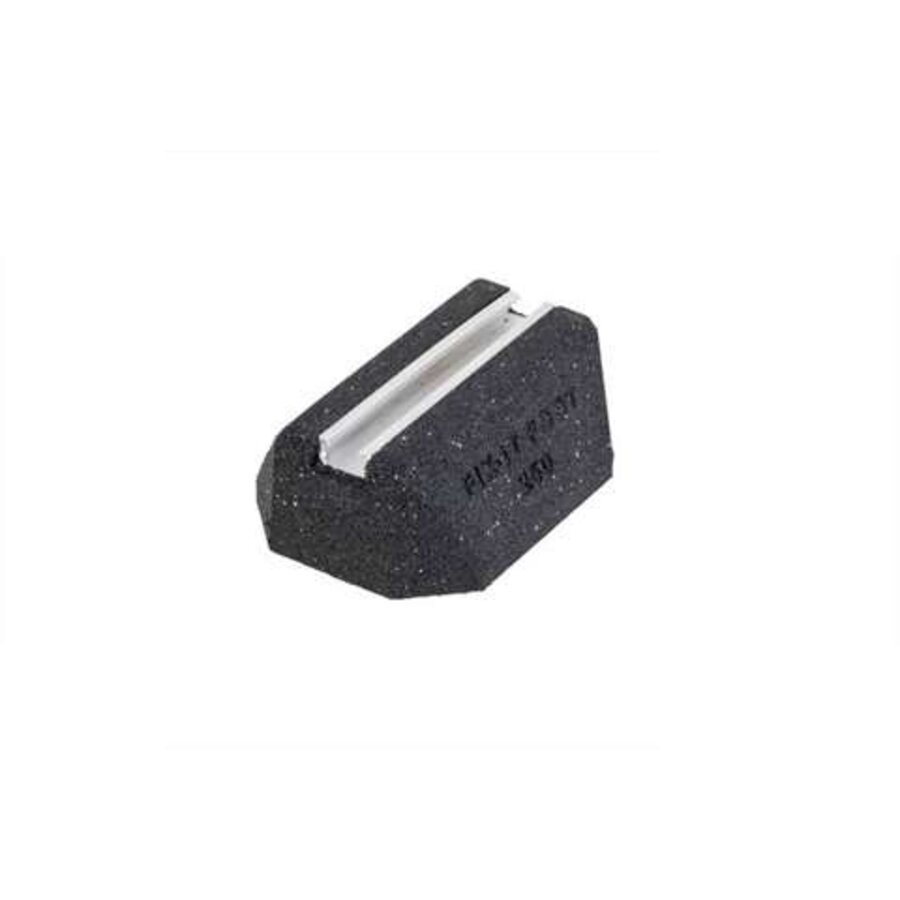

This multifunctional pedestal is a practical solution for stably placing and supporting pipes, outdoor units, and cabling on flat roofs and other suitable surfaces. The sturdy rubber construction provides a reliable base and prevents installations from being placed directly on the surface.

A 41 x 20 mm aluminium profile is incorporated into the base, creating a sturdy mounting foundation. Thanks to its vibration- and sound-absorbing properties, the base helps to limit impact noise and vibrations from technical installations. This makes it particularly suitable for applications involving air conditioning, refrigeration technology, and other technical installations.

The pedestal is UV-resistant and water-repellent and can be used both indoors and outdoors. With a temperature range of -40°C to +80°C, it is suitable for a wide range of conditions. The maximum static load capacity is 82 kg per block, making the pedestal suitable for various light to medium-heavy installations.

Optional protective mats are available for applications on PVC roofs. These can help provide additional protection to the substrate. The base is supplied individually and does not include mounting bolts. This allows the assembly to be tailored to the specific installation and fastening method.

Specifications:

• Type: Multifunctional base
• Size: 250 x 180 x 95 mm (L x W x H)
• Maximum load capacity: 82 kg per block, static
• Base material: Rubber
• Internal profile: Aluminium profile 41 x 20 mm
• UV resistant: Yes
• Water-repellent: Yes
• Vibration-absorbing: Yes
• Sound-absorbing: Yes
• Application: Pipes, outdoor units and cabling
• Suitable for: Flat roofs and other suitable surfaces
• Indoor and outdoor use: Yes
• Temperature range: -40°C to +80°C
• Protection mats: Optional, for PVC roofs
• Packaging: Per piece
• Mounting bolts: Not included
