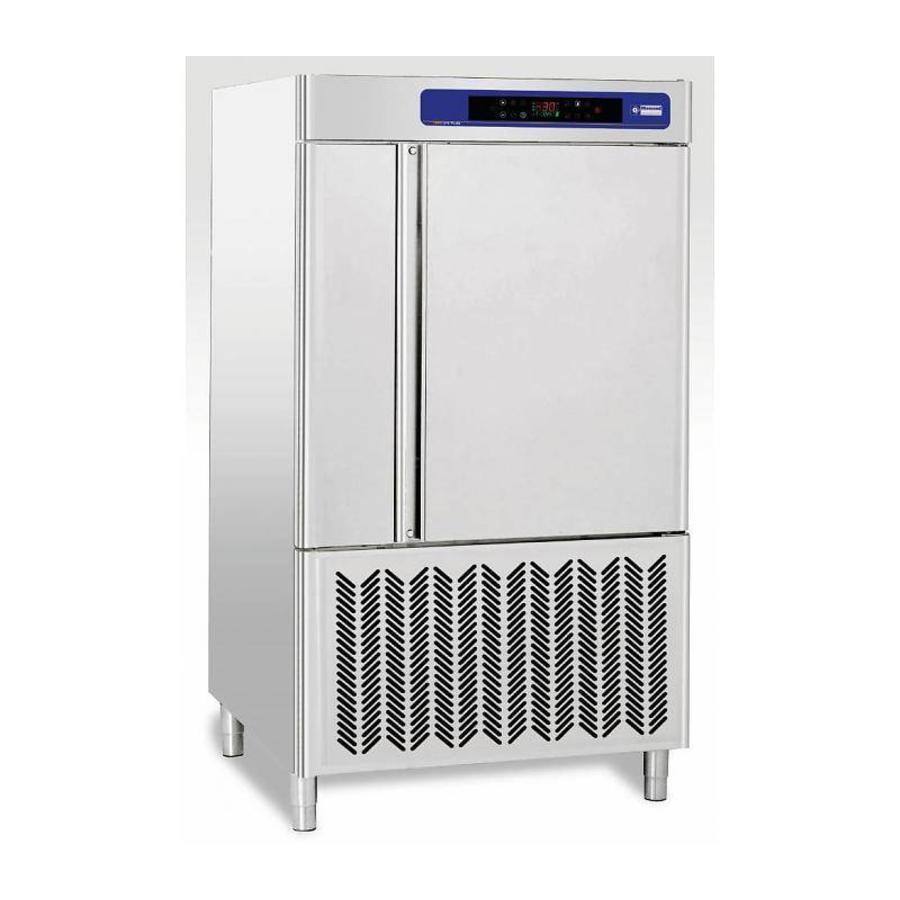

HorecaTraders Fast freezer 10x GN 2/1 OR 20x 600x400

Image 1 / 1

Diamond quick freezer is manufactured according to EC standards. Equipped with manual and automatic defrost. In addition, equipped with deep-drawn, corners and drain plug.

Availability:
In stock
Brand: HorecaTraders
Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
Article code: HTDBT102/L
Garantie: 1 year

€11.746,96 €9.036,12 (€10.933,71 Incl. BTW)

offer valid until: t/m 30-05-2024

Description
- mm (L x W x H) 1050 x 1080 x H1900
- kW 3.5
- Weight 270 kg
- Electrical connection 400/3N 50Hz
- Electrical power c neg -18° &
- Electrical power c pos +70° +70° +3°
- horsepower 3
- Content m3 2.15 ^m3
PRODUCT DATA
Capacity: 10x GN 1/1 (or) 10x EN 600X400 (grids and plates optional.

Production per cycle : 75 Kg (+70° C +3° C) or 50 Kg (+70° C -18° C).

Core temperature probe included as standard

"anti tilting" structure in stainless steel wire (removable), spacing for plates 50 & 75 mm.

Door with built-in handle "not protruding" (reversible on order).

Hinges with automatic closing (blocking at 90°).

Insulation 70 mm thickness.

Refrigerant R404A with thermostatic regulator.

4 adjustable stainless steel legs.

Electronic microprocessor digital (closed box, 100% waterproof), with HACCP functions, programmable as desired.

4 cycles to choose from "Soft Chill" or "Soft Freeze" for delicate products, "Hard-Chill" or "Hard-Freeze" for large pieces, control with timer with alarm at the end of the cycle (or) control with the core temperature probe, also with the hold function at the end of the cycle and alarm (visual or audible), 99 storable programs, choice between more than 20 function cycles, automatic cycle ... (see PLUS sheet), display on the front side.

Monoblock structure, inside and outside in food grade stainless steel (AISI 304).

Deep-drawn inner back, rounded corners (without irregularities), with drain plug (for major maintenance).

Door with ergonomic handle (not protruding), closure ensured by a "press" magnetic closure (easy to replace without tools), inner door equipped with heating resistance, avoids the formation of ice (Freeze function).

Microswitch system that stops the evaporator fan when the door is opened.

Compressor unit (ambient T° +43°), ventilated condenser, accessible from the front.

Ventilated evaporator (oversized), treated against salts and food acids, completely concealed (invisible), fan motor IP44.

Defrosts manual or automatic (start of the cycle) .

Insulation in injected polyurethane (without CFC).

Device manufactured in accordance with current EC standards .
THE +
Functions of the "A" electronic microprocessor :

1° P99 memorizable programs to save, choice between more than 20 function cycles.

2° Automatic cycle with core temperature probe control, detects the product type and automatically applies the most appropriate parameters.

3° Possibility to operate in continuous cycle, 5 ventilation regulation levels (delicate products).

4° provided for connection to a network.

5° In option : module USB port or module to download data directly to computer or to order them via the internet, preheated core temperature probe, germicidal UV lamp, possibility of 3 core temperature probes.
