Feet adjustable in height

Yes

Height adjustable from

1890 mm

Height adjustable up to

1940 mm

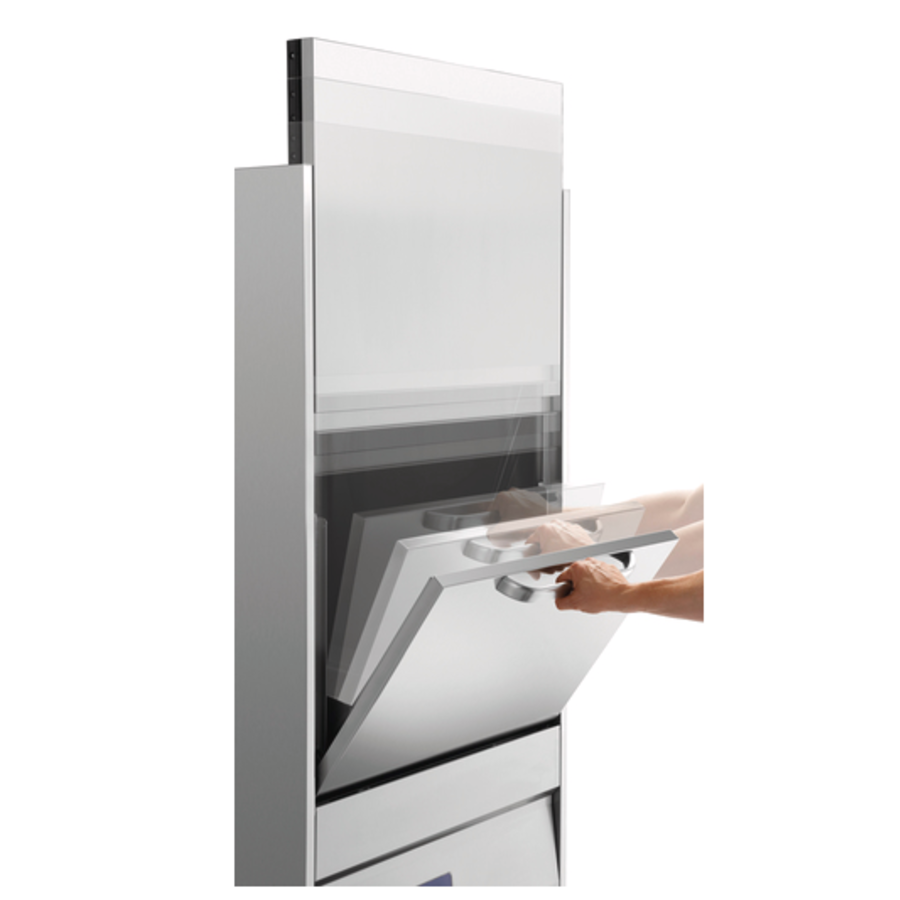

Double-walled door

Yes

Suitable for substructure

No

Height tablets max.

655 x 805mm

Height with door open

2275 – 2325mm

Connection value

8.18 kW

Voltage

400 V

Frequency

50 Hz

Device connection

3 NAC

Boiler heating

6 kW

Tank heating

3 kW

Dry-running protection

Yes

Indicator light

Warm up
ready to use
In operation

On-off switch

Yes

Drain pump

No

water softener

No

Dosing pump rinse aid

Yes

door contact switch

Yes

Safety thermostat

Yes

Detergent dosing pump

Yes

Basket dimensions

550 x 665mm

Duration

120 / 240 / 360 / 480 / 600 seconds

Capacity/hour max.

30 baskets

Self-cleaning

Yes

double-walled

Yes

Tank capacity

50 liters

Water consumption at 2 bar

4.2 liters / rinse

water pressure

2 – 4 bar

water supply

G 3/4``

Water drainage

Ø32mm

Including

1 universal basket
1 tray basket
1 cutlery cooker
1 coil grid

Properties

Electronic thermo-stop
Plus system (pressure rise pump, break tank, unpressurized boiler)
Water supply temperature: 10°C to 55°C
2 flush arms, each with 1 flush pump
Double strainer (removable waste collector and pump strainer)
Deep-drawn washbasin, with levels
Easy removal of the filters
Horizontal Self-Cleaning Pump Strainer
Self-diagnosis system
Standby function
Multi-colored START control button
Multilingual control menu

Number of wash programs

5

Material

Stainless steel

Width

730mm

Depth

850mm

Height

1890 mm

Weight

183.5 kg
