Insulated heat recovery ventilation system (HRV) facade duct Ø150mm – black aluminum

Description

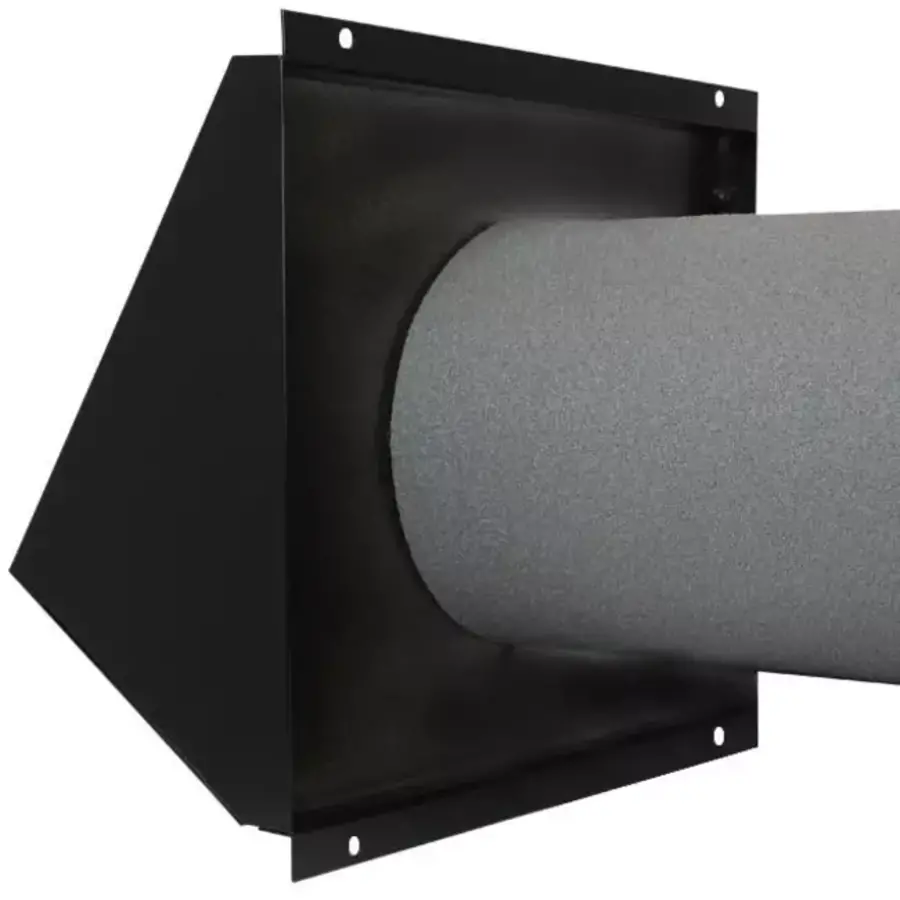

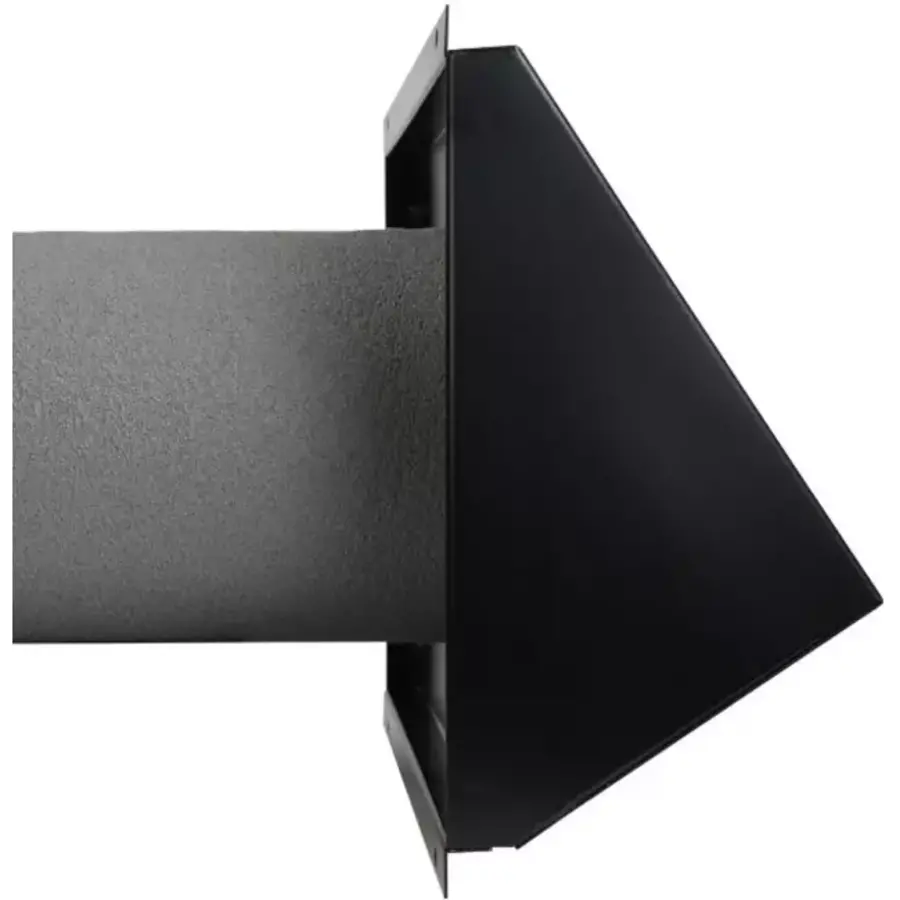

This high-quality 150mm diameter heat recovery facade duct is specifically designed for ventilation systems with heat recovery (HRV). The product is made entirely of black powder-coated aluminum (RAL9005) and features an insulated duct with 9mm Thermoduct insulation. This insulation prevents condensation and maintains optimal efficiency of the HRV system.

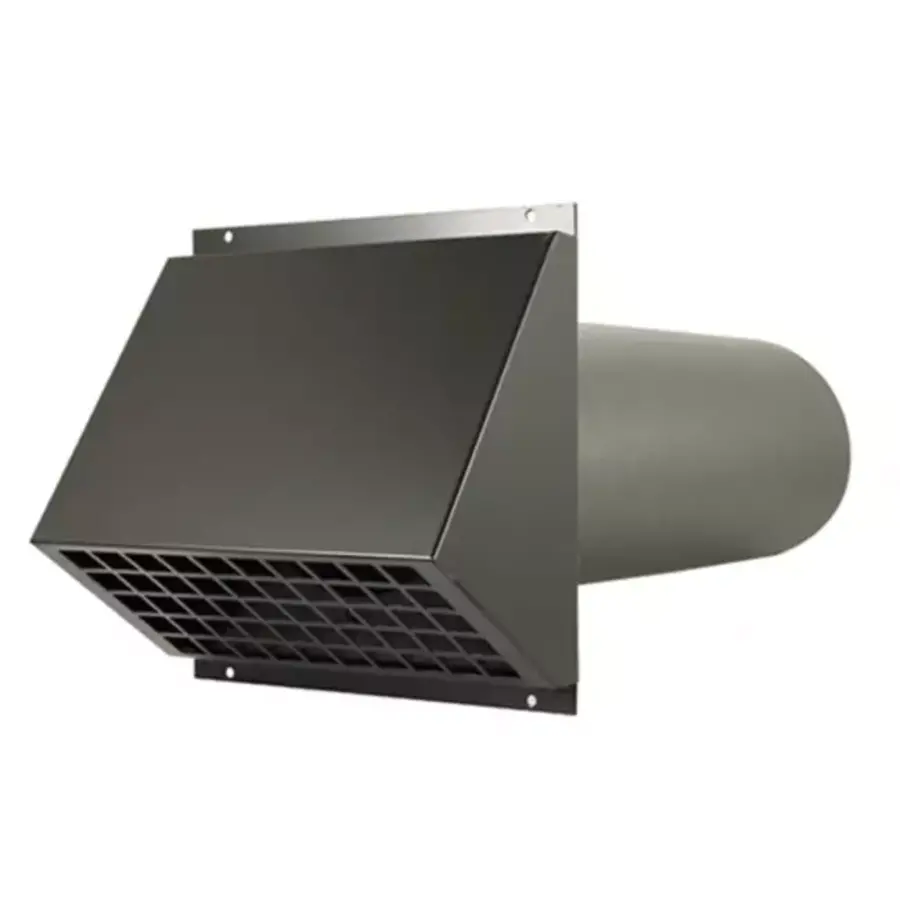

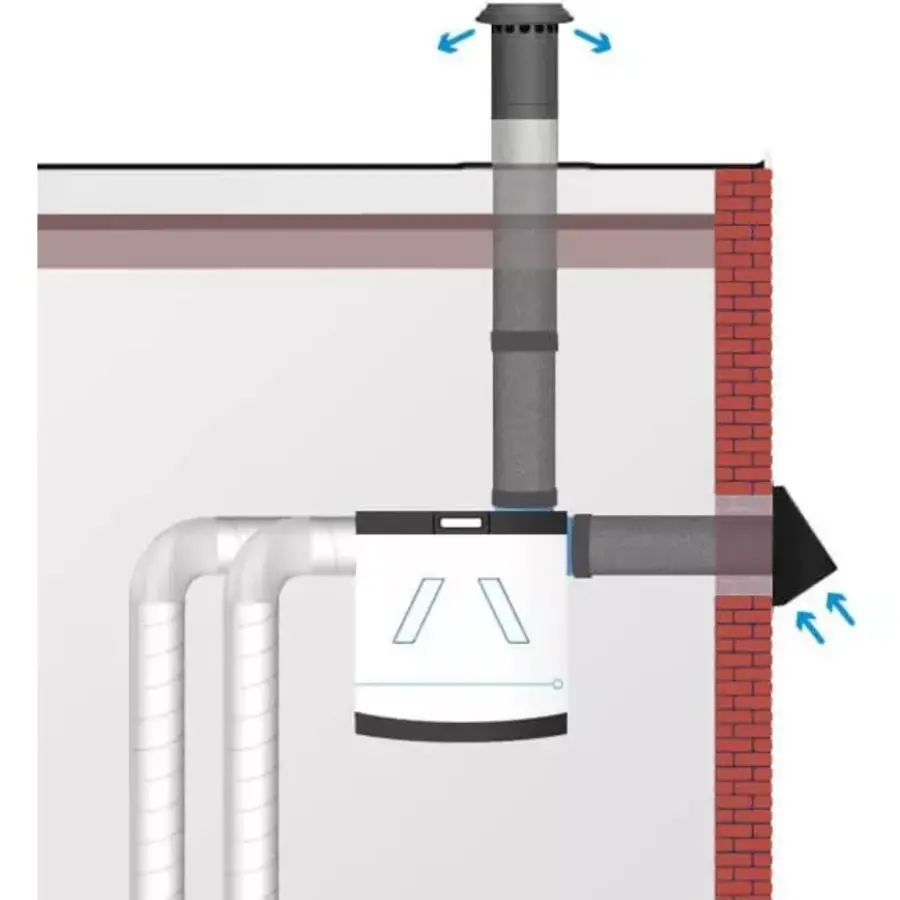

The sleek black facade grille provides a modern finish and is not only functional but also aesthetically pleasing. This facade duct is ideal for use in both residential and commercial buildings and is suitable for exhaust air through the facade.

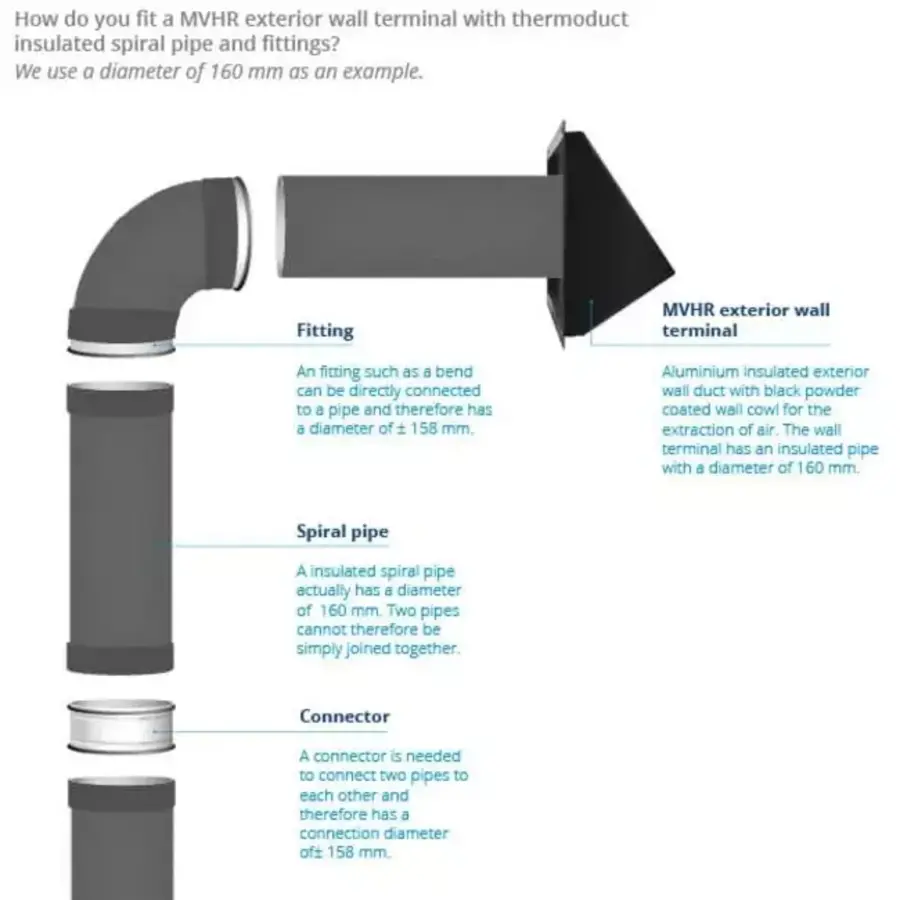

The product comes with a sturdy 500mm aluminum duct, making it easy to connect to existing ventilation ducts. Besides heat recovery systems, this product can also be used for other air handling applications where insulation and a neat facade finish are required.

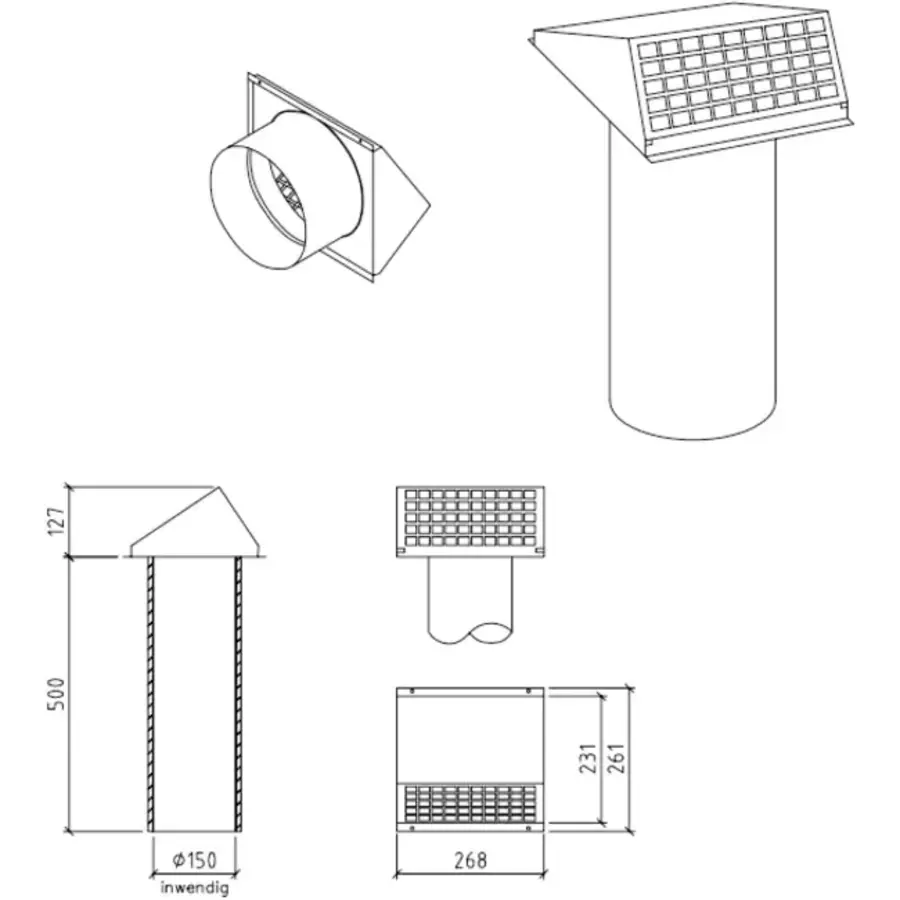

Specifications

• Type: Insulated facade duct for heat recovery

• Channel connection diameter: Ø150mm

• Channel length: 500mm

• Insulation: Thermoduct insulation 9mm

• Material: Aluminum

• Color: RAL9005 (black powder coated)

• Facade grille width: 268mm

• Facade grille height: 231mm

• Facade grille height incl. mounting strips: 261 mm

• Facade grille depth: 127mm

• Application: Air extraction via facade, suitable for heat recovery
