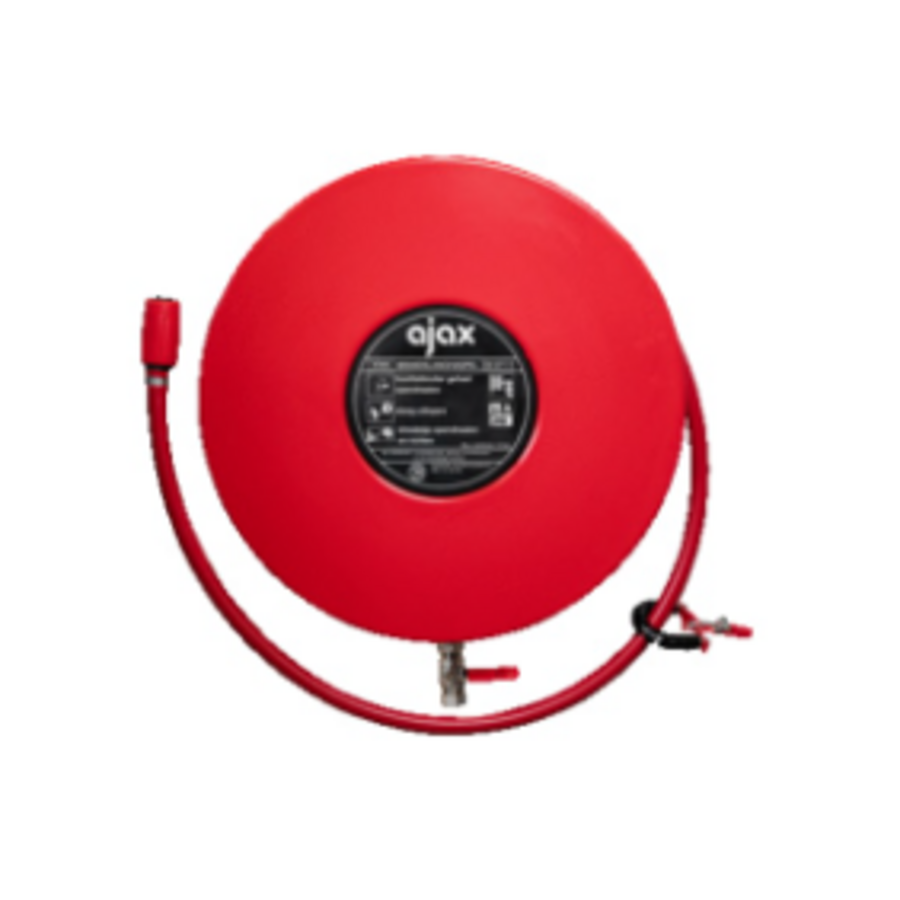

This professional fire hose reel is equipped with a 30-meter fire hose with an internal diameter of 25 mm. Thanks to the generous hose length, a large area can be reached from the installation site. The reel is suitable for installation in hospitality venues, business premises, warehouses, workshops, and industrial environments, among others.

The reel blade is made of steel and has a diameter of 600 mm. The distance between the reel blades is 165 mm. With an installation depth of 215 mm, the reel has sufficient space for the included 30-meter fire hose.

The inner and outer walls of the hose are made of polyvinyl chloride, or PVC. The fire hose has a nominal diameter of 1 inch and is connected with a compression fitting. This model comes with a hose, but is not equipped with a swivel arm, hose guide, nozzle holder, inlet valve, or entry piece.

The required mounting kit is not included in the delivery and must be ordered separately. Before ordering, check whether the connection, dimensions, and mounting method are suitable for the existing fire safety installation. Have the fire hose reel installed, inspected, and maintained by a qualified professional in accordance with applicable regulations.

Specifications:

• Product type: fire hose reel

• Version: fixed reel

• Nominal diameter: 1 inch (25)

• Hose length: 30 meters

• Internal diameter of fire hose: 25 mm

• Hose inner wall material: polyvinyl chloride (PVC)

• Hose outer wall material: polyvinyl chloride (PVC)

• Reel blade material: steel

• Reel blade diameter: 600 mm

• Distance between reel blades: 165 mm

• Installation depth: 215 mm

• Connection: compression ring

• With fire hose: yes

• With hose guide: no

• With swivel arm: no

• With nozzle holder: no

• With supply shut-off valve: no

• With input piece: no

• Mounting kit included: no

• Article number: A0616306

• Brand: Ajax
