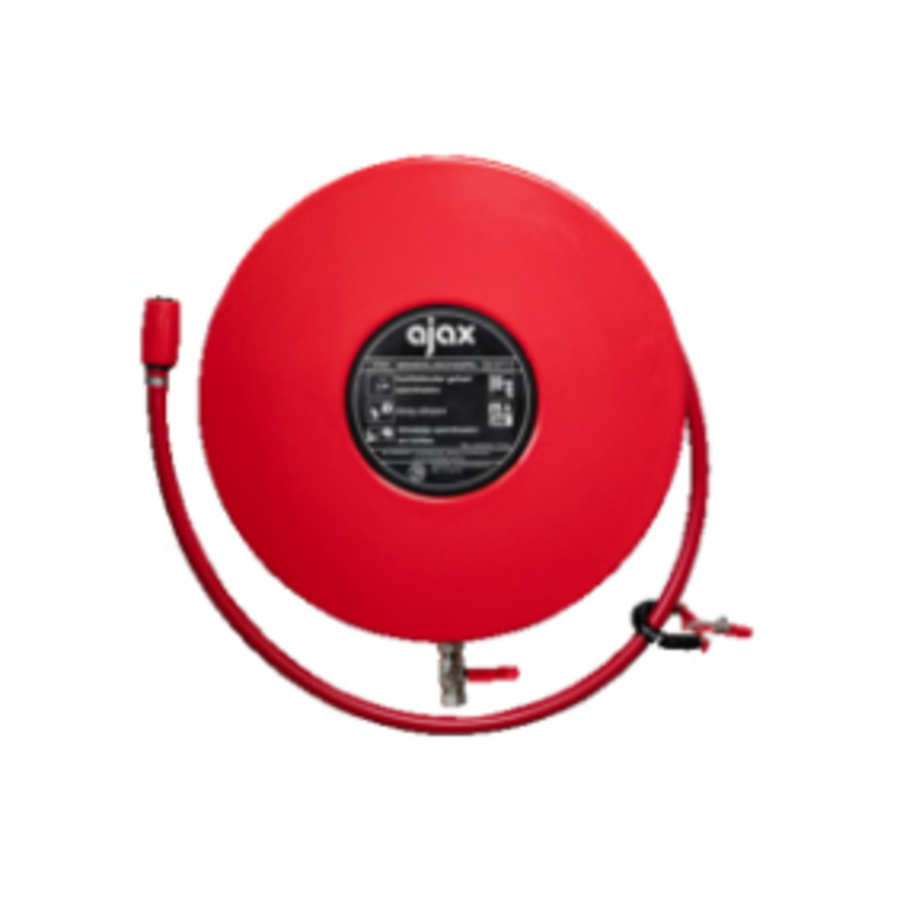

This steel fire hose reel is equipped with a 25-meter fire hose with an internal diameter of 19 mm. The generous hose length makes it possible to cover a large area. This makes the reel suitable for installation in business premises, warehouses, workshops, and professional hospitality establishments, among others.

The reel blade is made of steel and has a diameter of 600 mm. The distance between the reel blades is 130 mm. With a mounting and installation depth of 180 mm, the reel has a manageable size for mounting on or in a suitable wall structure.

The integrated hose guide supports the controlled unrolling and repositioning of the fire hose. This helps prevent the hose from becoming unnecessarily tangled during use. The reel is supplied complete with a fire hose, but does not include a swivel arm, nozzle holder, entry piece, or supply shut-off valve. These components must be selected separately if necessary.

The mounting kit is not included. Before ordering and installation, check whether the connection, mounting materials, and design are compatible with the existing fire safety installation. Have the fire hose reel installed and inspected by a qualified professional in accordance with applicable regulations.

Specifications:

• Product type: fire hose reel

• Version: fixed reel

• Nominal diameter: 3/4 inch (20)

• Hose length: 25 meters

• Internal diameter of fire hose: 19 mm

• Reel blade material: steel

• Reel blade diameter: 600 mm

• Distance between reel blades: 130 mm

• Installation depth: 180 mm

• Mounting depth: 180 mm

• With fire hose: yes

• With hose guide: yes

• With swivel arm: no

• With nozzle holder: no

• With supply shut-off valve: no

• With input piece: no

• Connection: other

• Mounting kit included: no

• Article number: A0815256

• Brand: Ajax
