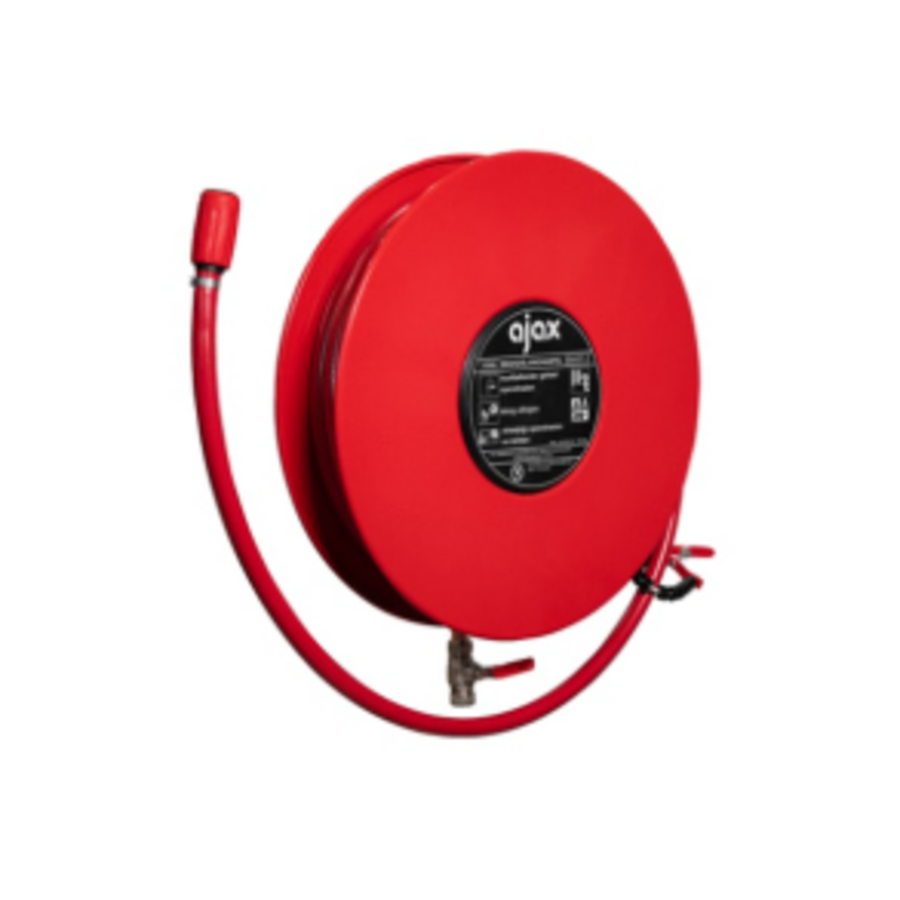

This professional fire hose reel is made of stainless steel and comes with a 30-meter fire hose. Thanks to the generous hose length, a large area can be reached from the installation site. The reel is suitable for use in hospitality venues, business premises, warehouses, workshops, and industrial environments, among others.

The reel blade has a diameter of 600 mm and is made of stainless steel. This ensures a robust and professional design. The distance between the reel blades is 125 mm. According to the product name, the reel has a construction depth of 175 mm, while the technical specifications state an installation depth of 0 mm.

The fire hose has an internal diameter of 19 mm and a nominal diameter of 3/4 inch. The built-in hose guide supports the controlled unrolling and reloading of the hose. Additionally, the reel is equipped with a nozzle holder, ensuring the nozzle has a fixed position on the reel.

This model is supplied with a fire hose, but without a swivel arm, supply valve, entry piece, and mounting kit. Before ordering, check whether the connection and mounting method are compatible with the existing fire safety installation. Have the fire hose reel installed and inspected by an expert in accordance with applicable regulations.

Specifications:

• Product type: fire hose reel

• Version: fixed reel

• Nominal diameter: 3/4 inch (20)

• Hose length: 30 meters

• Internal diameter of fire hose: 19 mm

• Reel blade material: stainless steel

• Reel blade diameter: 600 mm

• Distance between reel blades: 125 mm

• Installation depth according to product name: 175 mm

• Specified installation depth: 0 mm

• Connection: other

• With fire hose: yes

• With hose guide: yes

• With nozzle holder: yes

• With swivel arm: no

• With supply shut-off valve: no

• With input piece: no

• Mounting kit included: no

• Article number: A0545230

• Brand: Ajax
