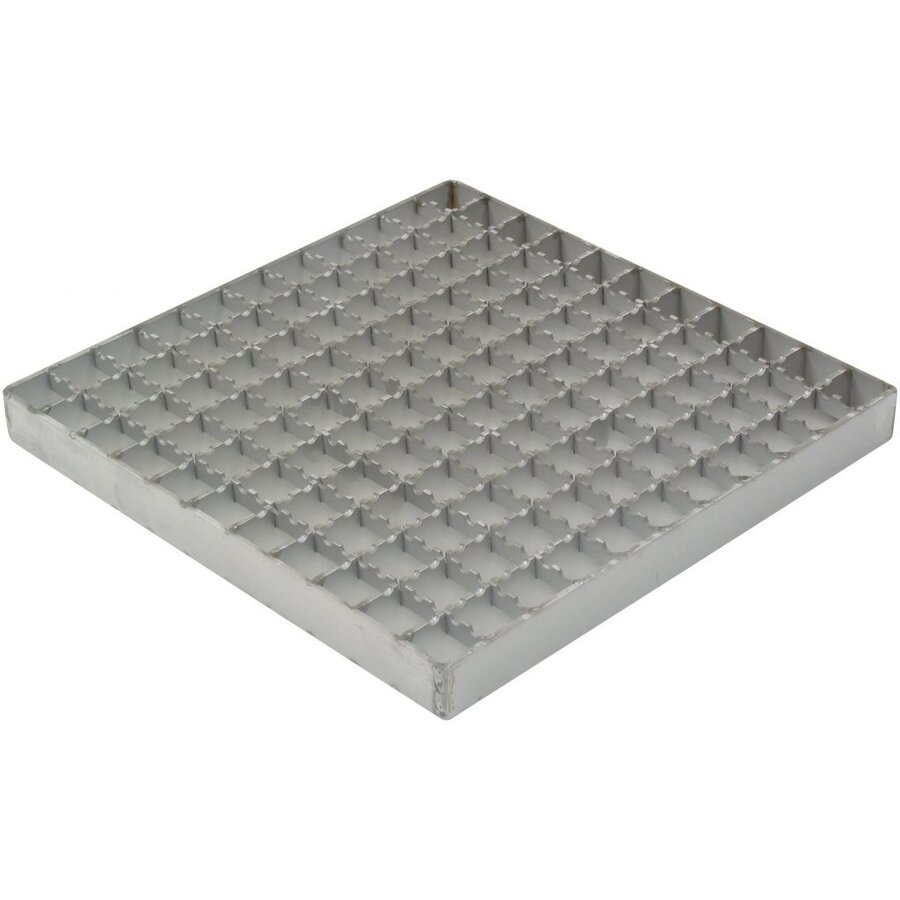

Stainless Steel Mesh Grate with Anti-Slip for Professional Drainage

This high-quality square mesh grate is manufactured from stainless steel AISI 304 (EN 1.4301) and is designed for the efficient drainage of large volumes of water. Thanks to the open mesh construction, water can be absorbed and drained quickly and easily, making the grate highly suitable for professional and heavily used spaces.

The grate measures 268 x 268 mm and features an R12 anti-slip surface . This provides good grip and contributes to a safe working environment, even in areas where water is regularly present on the floor. The sturdy construction with a material thickness of 3.0 mm has a load capacity of up to 15 kN (1,500 kg) and falls within load class L15 according to EN 1253 .

Thanks to the combination of high-quality stainless steel, a strong construction, and a pickled and passivated surface treatment, the mesh grate is suitable for applications in commercial kitchens, restaurant kitchens, butcher shops, and retail stores, among others. The grate is designed for use in combination with industrial floor drains from the Business Line range.

Specifications

• Article number: 790.268.000.22
• EAN: 5705499113655
• Part type: Grid
• Construction: Mesh grid
• Shape: Square

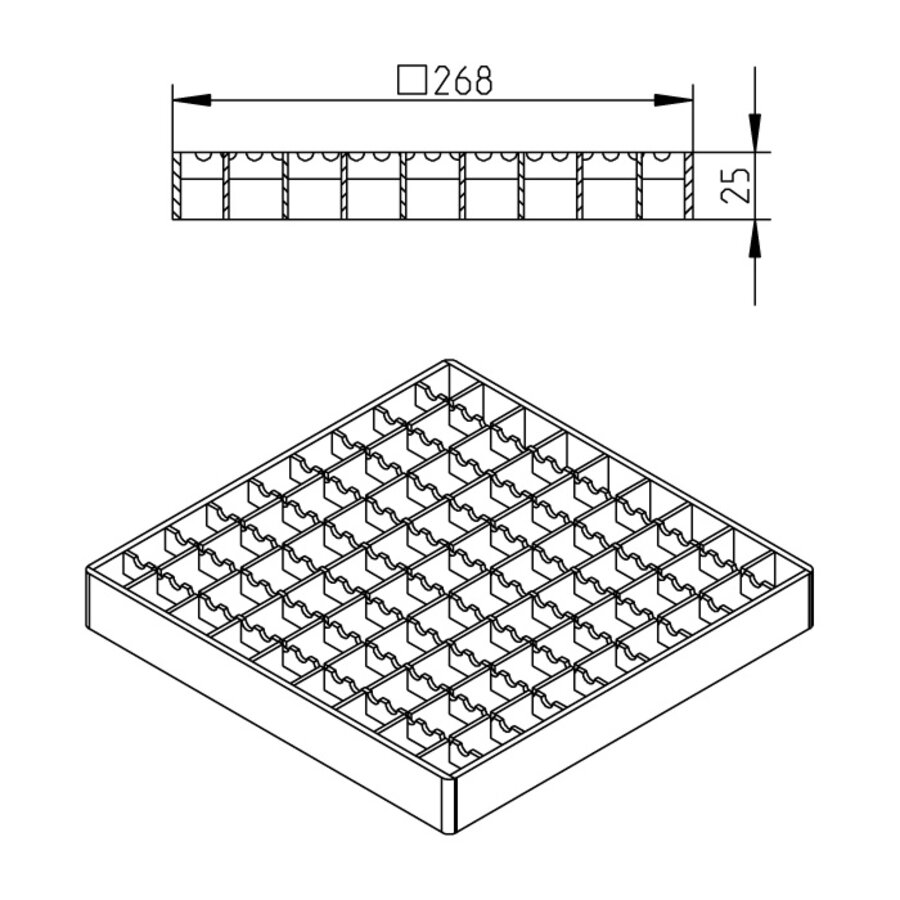

• Dimensions: 268 x 268 mm
• Height: 25 mm
• Material: Stainless Steel 304
• Material type: Stainless steel AISI 304 (EN 1.4301)
• Material thickness: 3.0 mm
• Anti-slip value: R12
• Grating load: 15 kN (1,500 kg)
• Load class: L15 according to EN 1253
• Slot width: 20.0 mm
• Surface treatment: Pickled and passivated
• Locked grid: No
• Hole shape: Square holes
• Application: Commercial kitchens, hospitality industry, butcher shops, and retail stores
• Origin: Dutch made
