Class

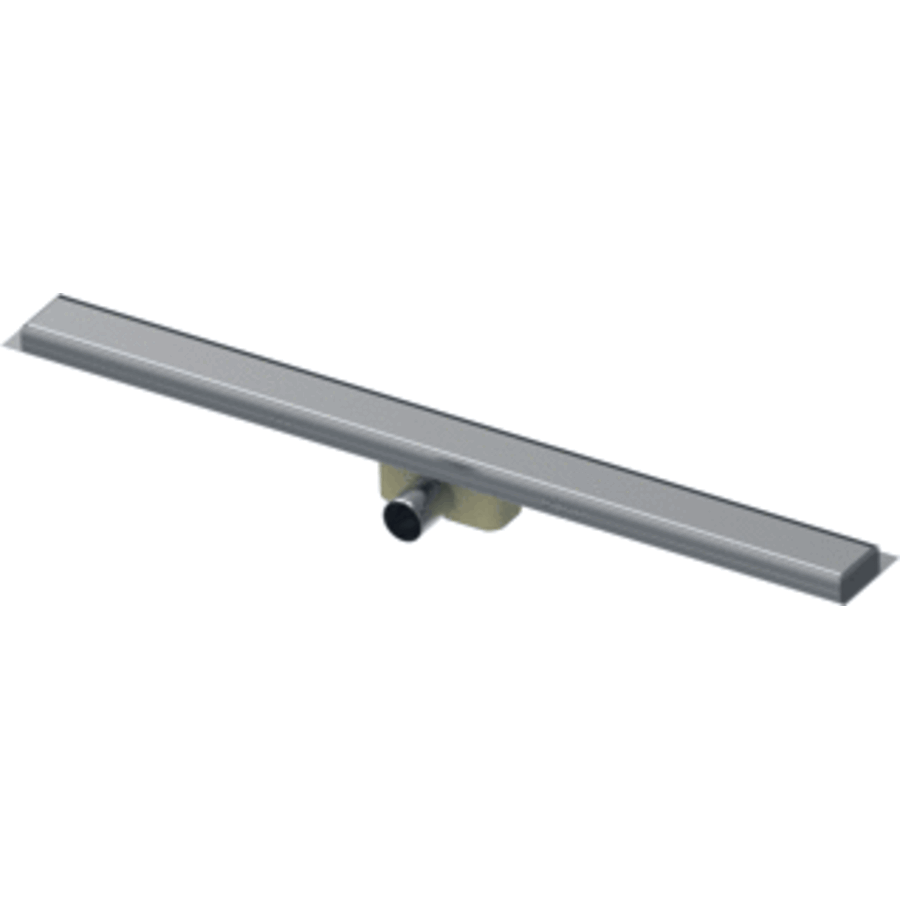

Shower drain
Exhaust direction
Horizontal
Installation depth
65 mm
Length
600 mm
External tube diameter
40 mm
Length of grid
595 mm
Widened sealing flange
Yes
Width
62 mm
Material grid
Stainless steel (SS)
Removable water lock
Yes
Discharge capacity
0.5 l/s
Connection
Sliding end
Adjustable attachment
No
Width of grid
56 mm
Gloss level
Mat
Height
65 mm
Lockable
No
Suitable for wall mounting
No
Floor covering height
15 mm
Quality class grid
Stainless steel 304 (1.4301)
With fire-resistant cuff
No
Surface treatment grid
Brushed
Grill for glass
No
Series
R-Line
Grid for tiles
No
With grid
Yes
Color grid
Stainless steel (SS)
Shape grid perforation
Other
Gutter material
Stainless steel (SS)
With siphon
Yes
Type of odor lock
Other
Form
Rectangular
Loose edge
No
Suitable for plastic floors
Yes
Suitable for coated floors
Yes
Adjustable height
No
Suitable for concrete floors
Yes
Suitable for waterproof subfloor
Yes
Water lock height
25 mm
Soundproof
No
Height of grid
20 mm
Quality class gutter
Stainless steel 304 (1.4301)
Material thickness grid
1.5 mm
Nom. connection diameter
DN 40 - DN 50
Surface protection grid
None (untreated)
