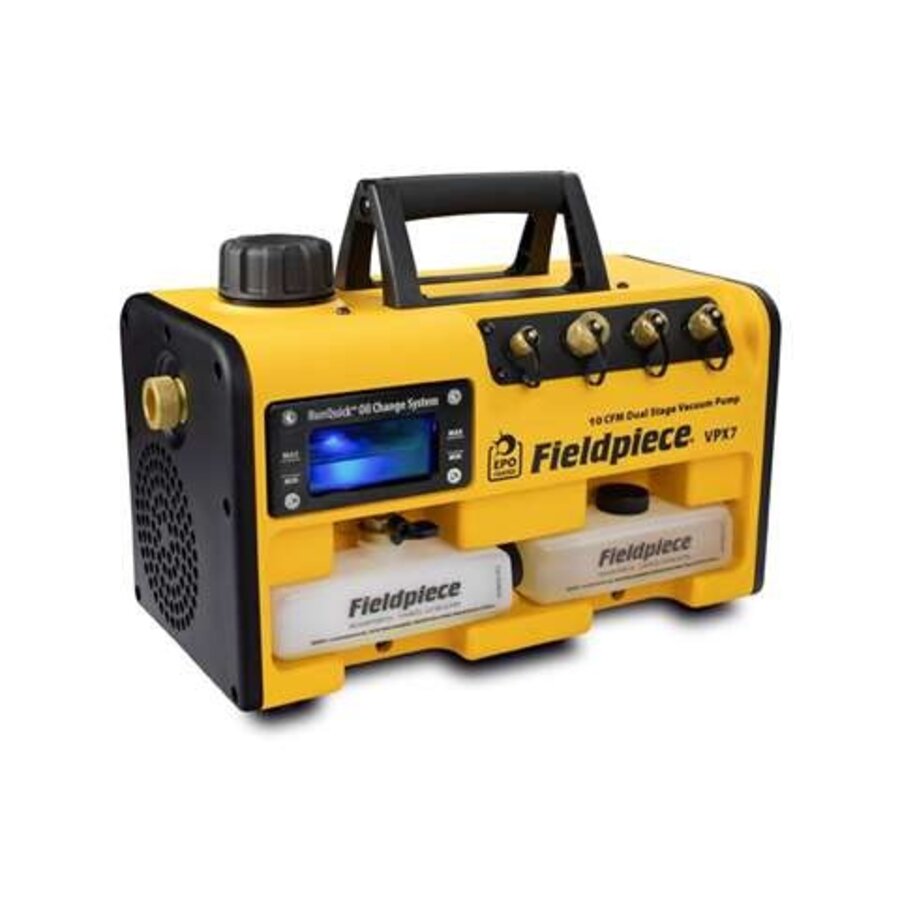

The Fieldpiece RunQuick VPX7 vacuum pump is a powerful, professional two-stage vacuum pump for evacuating air conditioning and refrigeration systems. With a pumping capacity of 10 CFM (280 liters per minute) , this model is suitable for installers and maintenance technicians who want to work efficiently on HVAC-R systems.
The pump is equipped with a two-stage rotary vane mechanism and a 3/4 HP brushless DC motor . This combination makes it possible to achieve a final vacuum of 15 microns at the inlet ports. This supports the removal of air and moisture from cooling circuits before they are filled with refrigerant.
An important advantage is the RunQuick oil change system . This allows the vacuum pump oil to be replaced in less than 20 seconds, without switching off the pump or losing vacuum. The oil is drained via a practical ball valve.
The oil reservoir has a capacity of 237 ml and is equipped with blue LED backlighting . This allows the condition of the oil to be easily checked during use.
The vacuum pump features four connection ports : one 1/4-inch connection, two 3/8-inch connections, and one 1/2-inch connection. Thanks to these different connection sizes, suitable vacuum hoses can be easily connected.
The A2L-compatible version makes the pump suitable for work on installations using approved A2L refrigerants, in accordance with applicable safety regulations.
The VPX7 features a sturdy base for stable placement and a practical provision for storing the power cord. A gas ballast valve with LED indicator enhances ease of use during vacuuming.
Despite the high pumping capacity, the device weighs only 10.9 kg . With dimensions of 20.1 x 29.6 x 40.6 cm, this vacuum pump is easy to move between different work locations.
The pump operates on 230 V at 50/60 Hz and is designed for professional use in the installation, maintenance, and repair of refrigeration systems.
Specifications
Article code: FPI-2100-000
EAN: 5414618951558
SKU: 10368060001
Manufacturer code: VPX7
Brand: Fieldpiece Instruments
Product type: Professional vacuum pump
Series: RunQuick
Model: VPX7
Pump capacity: 10 CFM
Pump capacity in liters: 280 l/min
Pump type: Rotary vane pump
Number of stairs: 2
Final vacuum: 15 microns
Motor: 3/4 HP brushless DC motor
Rotational speed: 2500 rpm
Oil capacity: 237 ml
Oil level indicator: Blue LED
Oil change system: RunQuick
Oil drain: Ball valve
Number of connection ports: 4
Connection 1: 1/4 inch
Connection 2: 3/8 inch (2 pieces)
Connection 3: 1/2 inch
A2L compatible: Yes
Gas ballast valve: Yes, with LED indicator
Supply voltage: 230 V
Frequency: 50/60 Hz
Nominal current consumption according to supplier: 6.0 A
Operating temperature: -1.1°C to +50°C
Width: 20.1 cm
Depth: 29.6 cm
Height: 40.6 cm
Dimensions: 20.1 x 29.6 x 40.6 cm
Weight: 10.9 kg
Suitable oil: Fieldpiece vacuum pump oil
Compatible oil products: OIL8X3, OIL32, OIL128
Included according to the manufacturer: 2 x 237 ml vacuum pump oil and a suitable power plug
Application: HVAC-R, air conditioning and refrigeration technology
Order unit: 1 piece
