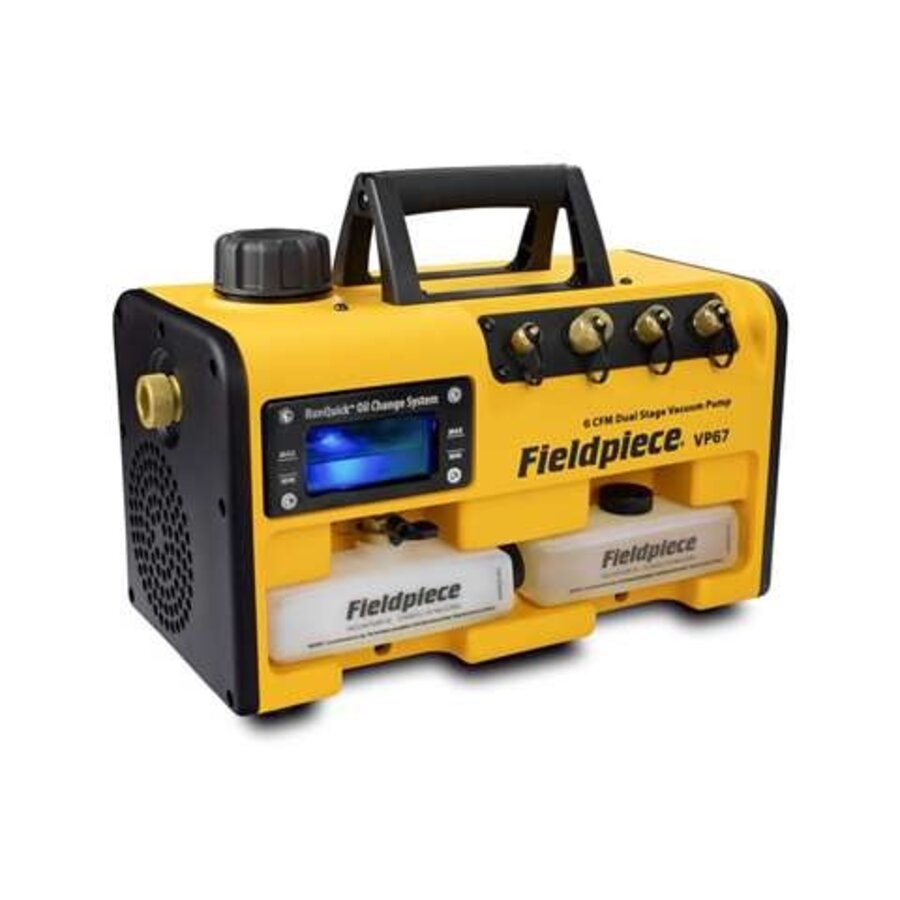

The Fieldpiece RunQuick VP67 vacuum pump is a professional two-stage vacuum pump for evacuating refrigeration and air conditioning systems. Thanks to its pumping capacity of 6 CFM (170 liters per minute), this vacuum pump is suitable for work on HVAC-R installations.

The pump is equipped with a two-stage rotary vane mechanism and a powerful 1/2 HP AC motor . This allows a final vacuum of 15 microns to be achieved at the inlet ports, which is important for removing air and moisture from a cooling system before it is filled with refrigerant.

An important feature of this vacuum pump is the RunQuick oil change system . The oil can be easily drained via a ball valve. This makes replacing the vacuum pump oil practical during installation and maintenance work.

The oil reservoir has a capacity of 237 ml and is equipped with blue LED backlighting . This makes the oil level easier to see during work in poorly lit locations.

The vacuum pump features multiple connection options, including 1/4 inch, 3/8 inch, and 1/2 inch . This allows various suitable vacuum hoses to be connected.

The pump operates on 230 V at 50/60 Hz and has a nominal current consumption of 5.0 A. With a weight of 13.2 kg and dimensions of 20.1 x 29.6 x 40.6 cm, the device is suitable for professional use at various work sites.

The RunQuick VP67 is designed for installers and maintenance technicians working on air conditioning, refrigeration, and other HVAC-R systems.

For proper operation and lubrication, the use of suitable Fieldpiece vacuum pump oil is recommended.

Specifications

Article code: FPI-2600-000
EAN: 5414618951596
SKU: 10368070001
Manufacturer code: VP67
Brand: Fieldpiece Instruments
Product type: Professional vacuum pump
Series: RunQuick
Model: VP67
Pump capacity: 6 CFM
Pump capacity in liters: 170 l/min
Pump type: Rotary vane pump
Number of stairs: 2
Final vacuum: 15 microns
Oil capacity: 237 ml
Oil level indicator: Blue LED
Oil drain: Ball valve
Connection 1: 1/4 inch
Connection 2: 3/8 inch (2 connections)
Connection 3: 1/2 inch
Motor: 1/2 HP AC
Rotational speed: 3440 rpm
Supply voltage: 230 V
Frequency: 50/60 Hz
Nominal current consumption: 5.0 A
Operating temperature: -1.1°C to +50°C
Width: 20.1 cm
Depth: 29.6 cm
Height: 40.6 cm
Dimensions: 20.1 x 29.6 x 40.6 cm
Weight: 13.2 kg
Suitable vacuum pump oil: Fieldpiece vacuum pump oil
Compatible oil products: OIL8X3, OIL32, OIL128
Application: HVAC-R, air conditioning and refrigeration technology
Order unit: 1 piece
