This 20-meter open hose reel is designed for professional cleaning work with water and detergent. The extra-long hose offers a large working range from a single fixed mounting point, making it suitable for spacious professional work environments.

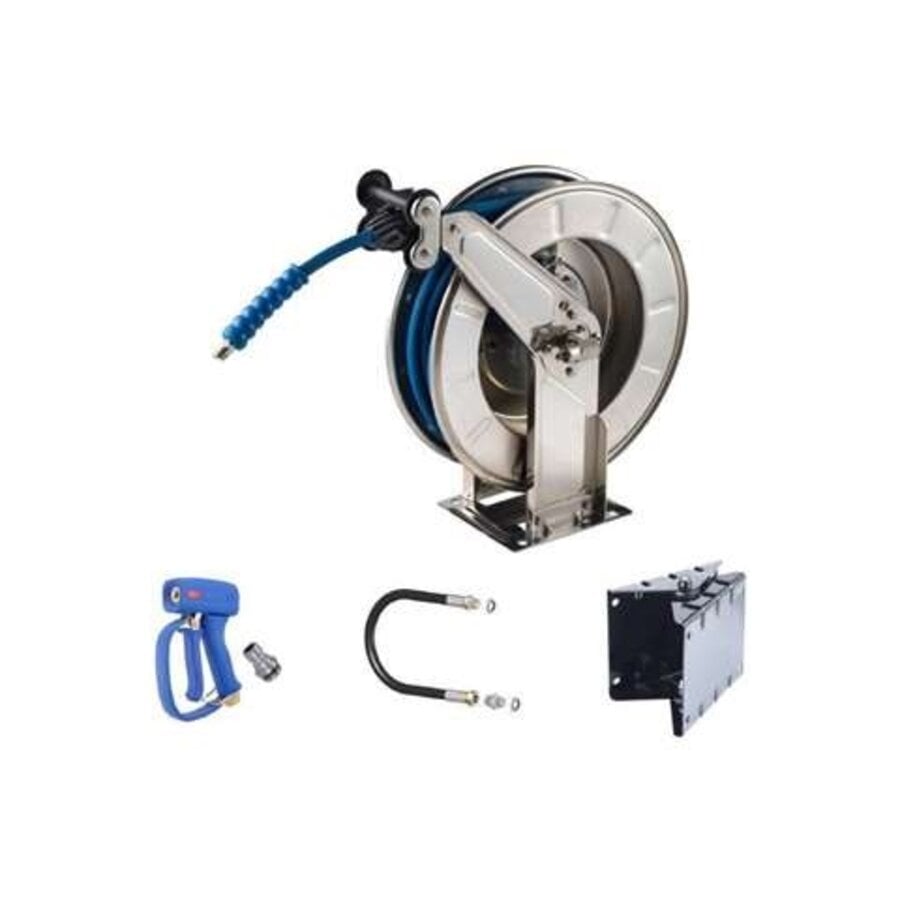

The hose reel is made of stainless steel AISI 304 and is supplied complete with a spray gun, quick-connect nipple, 0.5-meter supply hose, and swivel wall bracket. This provides you with a complete solution for installation and use.

The hose guide arms are adjustable in three different positions. This allows the guidance to be adapted to the installation situation of the reel. The hose reel can be mounted on both the wall and the ceiling.

The spring mechanism features a Stop&Go function. This allows the hose to be pulled out in a controlled manner and stored away again after use. Additionally, the swivel wall bracket offers extra freedom of movement during cleaning.

The drum has a diameter of 410 mm. The total length is 460 mm and the width is 242 mm. The design is suitable for food processing environments and is CE-approved according to 2006/42/CE. The weight is 24 kg.

Specifications

• Product type: open hose reel
• Hose length: 20 meters
• Material: Stainless steel AISI 304
• Drum diameter: 410 mm
• Spring mechanism: Stop&Go
• Hose guide arms: adjustable in 3 positions
• Mounting: wall or ceiling
• Wall bracket: swivel
• Supply hose: 0.5 meters
• Includes: spray gun
• Includes: quick-release nipple
• Includes: supply hose
• Includes: swivel wall bracket
• Total length: 460 mm
• Width: 242 mm
• Weight: 24 kg
• Application: cleaning with water and detergent
• Suitable for: food processing environments
• CE mark: 2006/42/CE
• Unit: set
• Article number: LHS-3920-000
• EAN code: 5414618899126
• SKU: 50358960000
