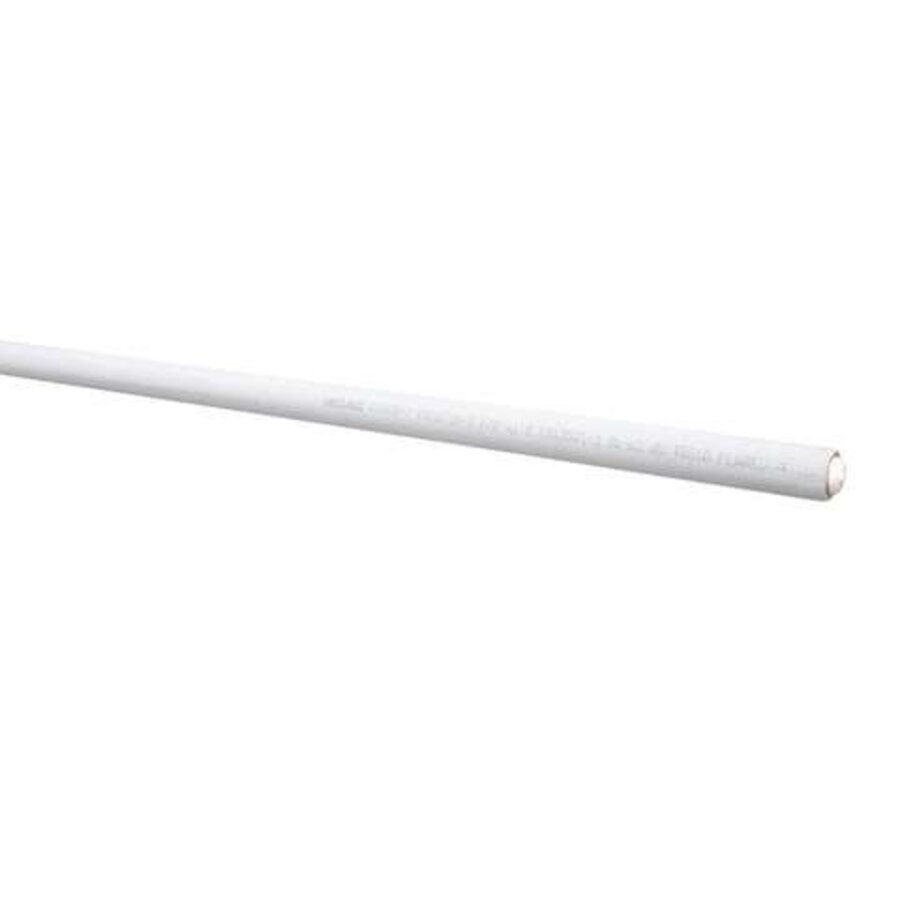

Insulated copper pipe 1 3/8" – 4 meters length
This high-quality insulated copper pipe 1 3/8" is a practical solution for professional applications in air conditioning, refrigeration, and climate control. The copper pipe has an outer diameter of 34.92 mm and is supplied in lengths of 4 meters per piece. With two pieces per box, this version is suitable for various professional installation, maintenance, and assembly tasks.
The piping is manufactured from high-quality, flexible copper and has a constant wall thickness of 1.1 mm. The flexible copper makes the piping easy to work with during installation and helps to efficiently lay the desired piping route. This makes this copper piping a practical choice for professional installers and technical services working with cooling and air conditioning systems.
The copper pipe is fitted all around with 10 mm thick PE insulation. The insulation consists of two layers of resilient, high-quality PE sheath and has a closed cell structure on both the inside and outside. This construction ensures a high insulation value and helps limit condensation around the pipe.
The insulation features a hard, white outer wall that provides extra protection during storage, transport, and installation. Despite this sturdy outer layer, the piping remains easy to work with. The insulation is designed to flex without easily forming creases, ensuring that the insulating properties are preserved as well as possible during installation.
The heat-resistant inner layer is suitable for temperatures up to 110 °C. With a maximum thermal conductivity of 0.043 W/mK, the insulation offers a high insulation value. This helps limit unwanted heat transfer and contributes to the efficient operation of professional air conditioning and refrigeration systems.
The copper cable complies with EN 13501-1 and has fire class BL-s1-d0. The white protective cap protects the end of the cable during storage, transport, and installation. The delivery consists of two pieces per box, making this packaging practical for professional projects requiring multiple cable lengths.
This 1 3/8" insulated copper pipe, 4 meters in length, is therefore a suitable choice for professional installers, technical services, and companies in the hospitality, air conditioning, and refrigeration industries. The combination of high-quality flexible copper, a wall thickness of 1.1 mm, and 10 mm PE insulation makes this pipe suitable for a wide range of professional installation projects.
Specifications:
- Type: insulated copper pipe
- Pipe size: 1 3/8"
- Length: 4 meters per piece
- Quantity: 2 pieces per box
- Outer diameter: 34.92 mm
- Wall thickness: 1.1 mm
- Insulation thickness: 10 mm
- Pipe material: high-quality, flexible copper
- Wall thickness: constant
- Insulation material: high-quality PE sheath
- Insulation structure: 2 layers
- Inner wall: closed cell structure
- Outer wall: closed cell structure
- Exterior finish: hard, white exterior wall
- Heat-resistant inner layer: up to 110 °C
- Thermal conductivity: maximum 0.043 W/mK
- Fire class: BL-s1-d0
- Standard: EN 13501-1
- Protective cap: white
- Packaging: 2 pieces per box
- Flexibility: flexible and easy to work with
- Insulation: bending without creases in the insulation
- Condensation: condensation-free
- Application: air conditioning, refrigeration technology and climate control systems
