powerful and quiet fan for optimal air movement

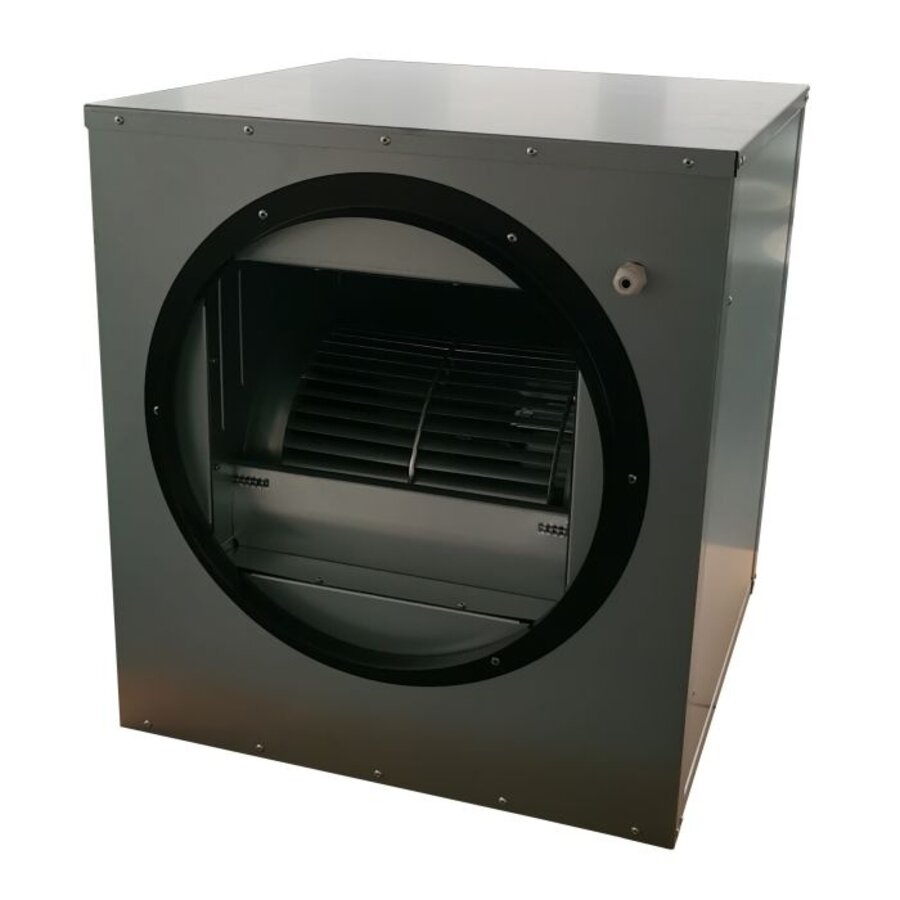

The 3500 m³/h Extractor Fan in Box offers a powerful, quiet solution for air movement in various ventilation systems. Thanks to its compact dimensions (550x600x575 mm), this fan is easy to install, even in smaller utility rooms.

With a Ø400 mm air outlet and a power output of 0.75 kW, the motor provides a stable airflow of up to 3500 m³ per hour. It operates on 230 volts and rotates at 1200 rpm, making it both powerful and energy-efficient.

This extractor fan is ideal for use in commercial kitchens, production halls, and other spaces requiring reliable ventilation. Its robust design ensures a long service life and smooth operation, even under heavy use.

Specifications

• Dimensions (WxDxH): 550 x 600 x 575 mm

• Voltage: 230 Volt

• Frequency: 50 Hz

• Current consumption: 5.8 A

• Electrical power: 0.75 kW

• Air exhaust: Ø 400 mm

• Capacity: 3500 m³/hour

• Speed: 1200 rpm
