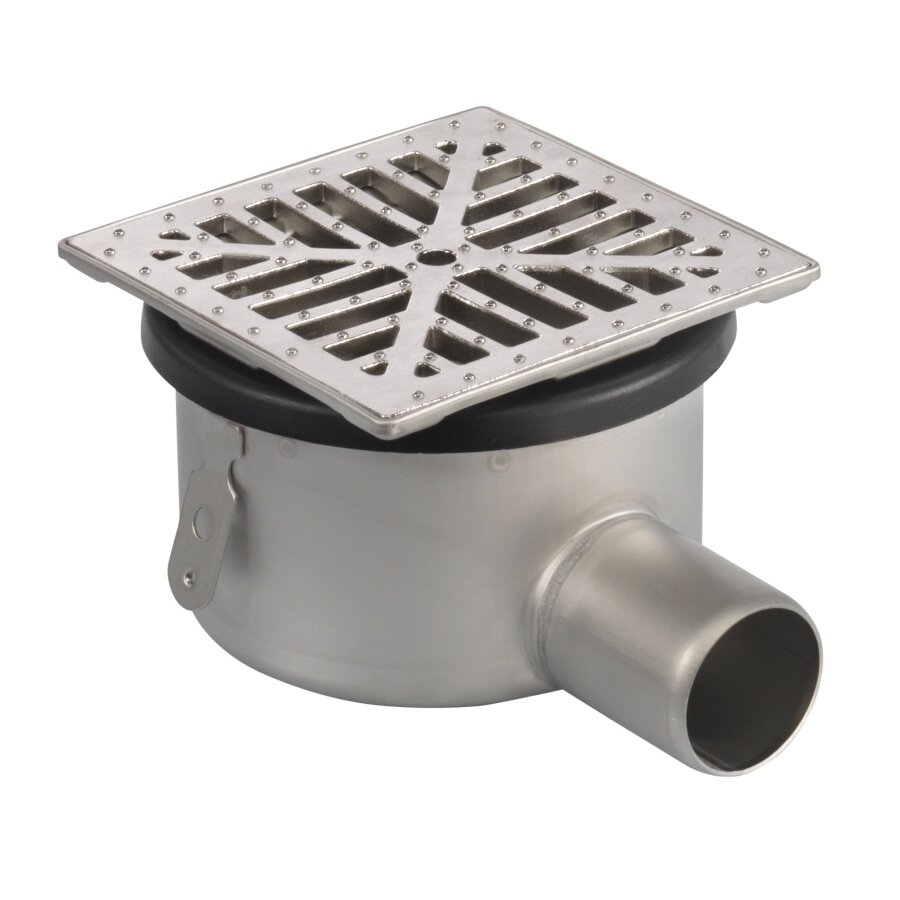

HorecaTraders Floor drain | 145 x 145 mm | stainless steel 304 | horizontal connection | 1.40 l/s
HorecaTraders Floor drain | 145 x 145 mm | stainless steel 304 | horizontal connection | 1.40 l/s


- Availability:
In stock
- Brand: HorecaTraders
- Delivery time: 1- 3 Working Days
Delivery
Delivery time is only an indication. When available delivery will be within the listed working days.
- Article code: HT176999
- Garantie: 1 year
offer valid until: t/m 30-06-2026
-
Description
EAN 8717775935339 Connection Side connection

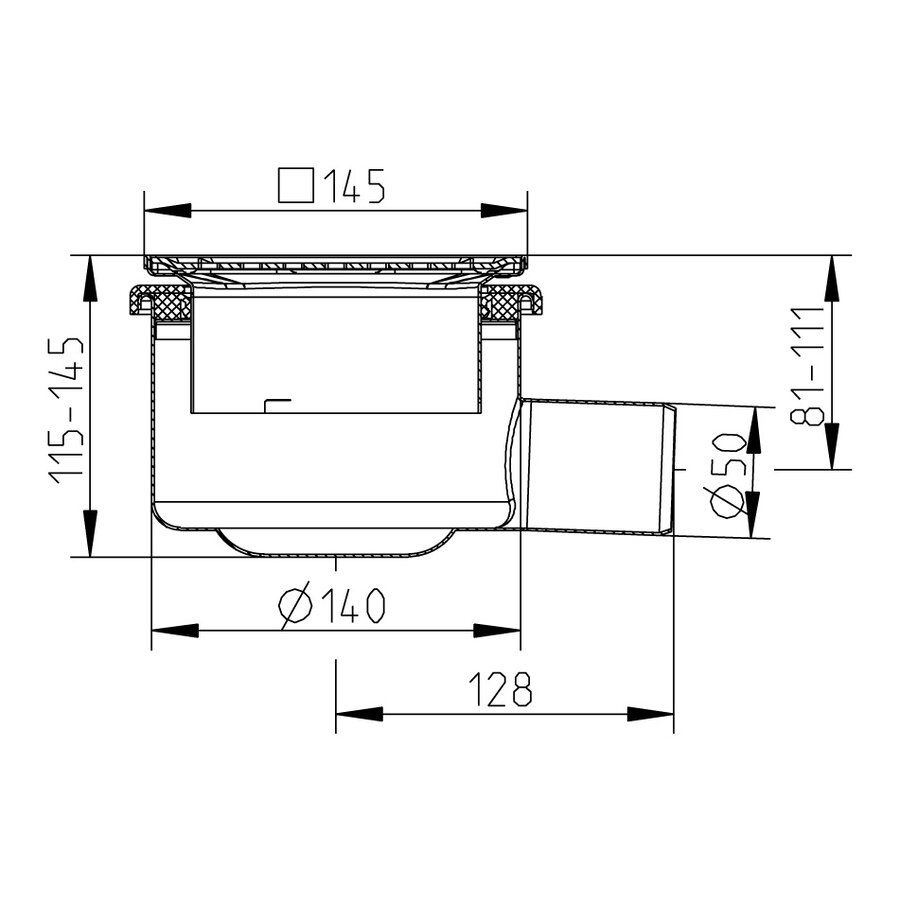

Installation depth 115 – 145 mm
Grounding point Yes
Size 145 x 145 mm
Anti-slip value grid R10
Tax Schedule 30 kN (3,000 kg)
Load class grating EN 1253 L15 (1,500 kg)
Particulars Hygienic grid
Capacity (max.) 1.40 l/s
Construction grid HygienicPro cast
Connection diameter ø 50 mm
Rotatable 360° Yes
Bucket No
Tiltable Yes
Material Stainless steel 304
Cuff material EPDM rubber
Material attachment Stainless steel AISI 304 (EN 1.4301)
Material odor trap Stainless steel AISI 304 (EN 1.4301)
Material grid Stainless steel AISI 304C (EN 1.4308)
Floor drain material Stainless steel AISI 304 (EN 1.4301)
Material dirt collection basket Stainless steel AISI 316L (EN 1.4404)
Material thickness grid 6.0 mm
Surface treatment grid No
Perforated dirt collection basket ø 5 mm
Product protection Removable foil
Scent lock 50 mm
Removable odour trap Two-piece with handle
Slot width grid 10.0 mm
Application Hospitality, Industry, Utilities
Locked grid No
Glueable No
Adjustable vertically 30 mm
Adjustability Adjustable in height
Floor drain standard EN 1253
Shape grid Square, slotted holes
Dirt collection basket Yes
Water lock standard EN 1253
-
Reviews (0)
| EAN | 8717775935339 |
|---|
| Connection |
Side connection |
|---|---|
| Installation depth |
115 – 145 mm |
| Grounding point |
Yes |
| Size |
145 x 145 mm |
| Anti-slip value grid |
R10 |
| Tax Schedule |
30 kN (3,000 kg) |
| Load class grating EN 1253 |
L15 (1,500 kg) |
| Particulars |
Hygienic grid |
| Capacity (max.) |
1.40 l/s |
| Construction grid |
HygienicPro cast |
| Connection diameter |
ø 50 mm |
| Rotatable 360° |
Yes |
| Bucket |
No |
| Tiltable |
Yes |
| Material |
Stainless steel 304 |
| Cuff material |
EPDM rubber |
| Material attachment |
Stainless steel AISI 304 (EN 1.4301) |
| Material odor trap |
Stainless steel AISI 304 (EN 1.4301) |
| Material grid |
Stainless steel AISI 304C (EN 1.4308) |
| Floor drain material |
Stainless steel AISI 304 (EN 1.4301) |
| Material dirt collection basket |
Stainless steel AISI 316L (EN 1.4404) |
| Material thickness grid |
6.0 mm |
| Surface treatment grid |
No |
| Perforated dirt collection basket |
ø 5 mm |
| Product protection |
Removable foil |
| Scent lock |
50 mm |
| Removable odour trap |
Two-piece with handle |
| Slot width grid |
10.0 mm |
| Application |
Hospitality, Industry, Utilities |
| Locked grid |
No |
| Glueable |
No |
| Adjustable vertically |
30 mm |
| Adjustability |
Adjustable in height |
| Floor drain standard |
EN 1253 |
| Shape grid |
Square, slotted holes |
| Dirt collection basket |
Yes |
| Water lock standard |
EN 1253 |
