- Production per tub: 25kg/h for pre-baking, 50kg/h for baking.
- 3 tubs of 13 litres Ø 360 mm (3x 16.16 kW).
- 3 revolving doors
- Standard accessories: 1 stainless steel lid per tub.

- Top very thick at the top (20/10th), welded.
- Lower drain tap for each tub and drain pan (or filtration) with removable spout (easy use in complete safety).
- Top tray for pre-cooked food, with a perforated bottom for drainage.
- Double-walled and insulated revolving doors.
- Heating by circular cast iron burner with very high efficiency, insulated combustion chamber.
- Chimney (1 per tub) to discharge the combustion gases.
- Gas tap type "SIT" equipped with a safety system by thermocouple and piezo ignition (no need for electrical connection!!).

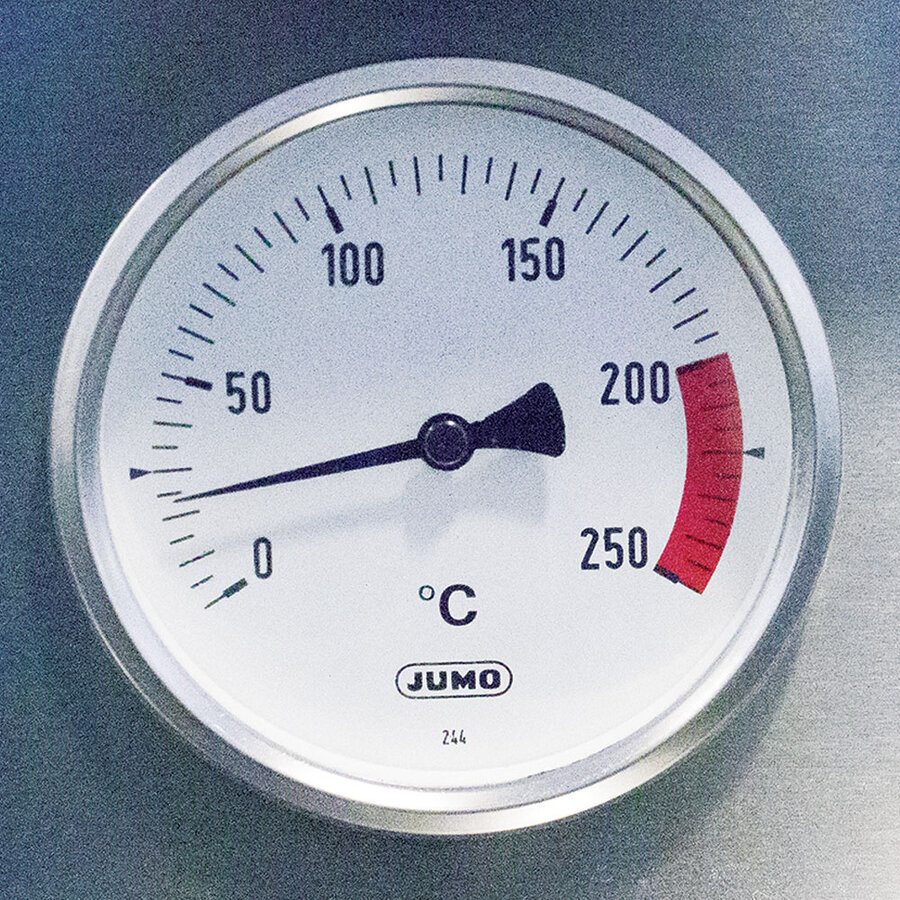

- "Digital" front temperature display for each tub.
- Construction in stainless steel AISI 304/441.
- Complies with CE standards.


PLUS :
- Nothing beats the taste of fresh fries. No more frozen products, thanks to our Diamond fryers, offer the real traditional recipe!!
- Electronic controller (digital display), better temperature management, much faster.
- Robust construction and highly innovative design.

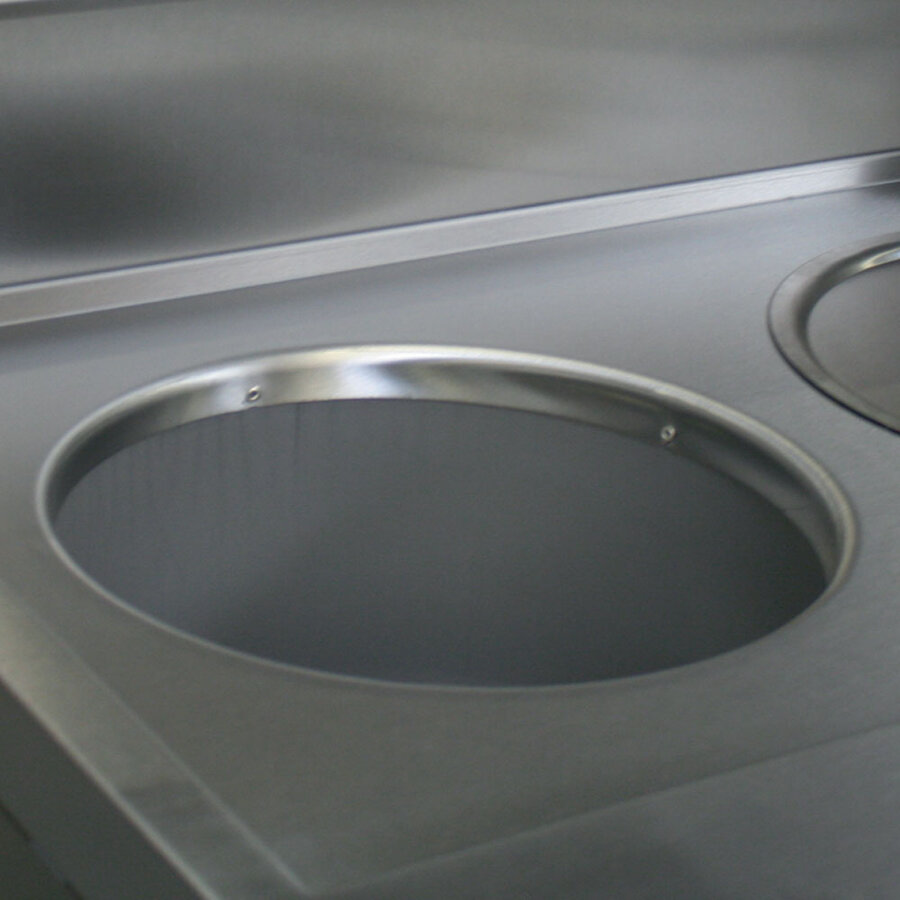

- Round tub Ø 360 mm in steel (30/10th) deep-drawn and finished, 100% sealing guaranteed and an impeccable finish!), equipped with a cold zone with bottom sieve.
- Double safety: fire safety thermostat (safety in the event of ignition when the tank is empty), as well as a standard safety thermostat.
- Top drawer reinforced (large capacity) to store food after pre-cooking.

• mm (WxDxH) : 1445x900xh930/1507
• kcal/h : 41280
• kW : 0,1
• Volt: 230/1N 50-60Hz
• kg : 230
• M³ : 1,75
