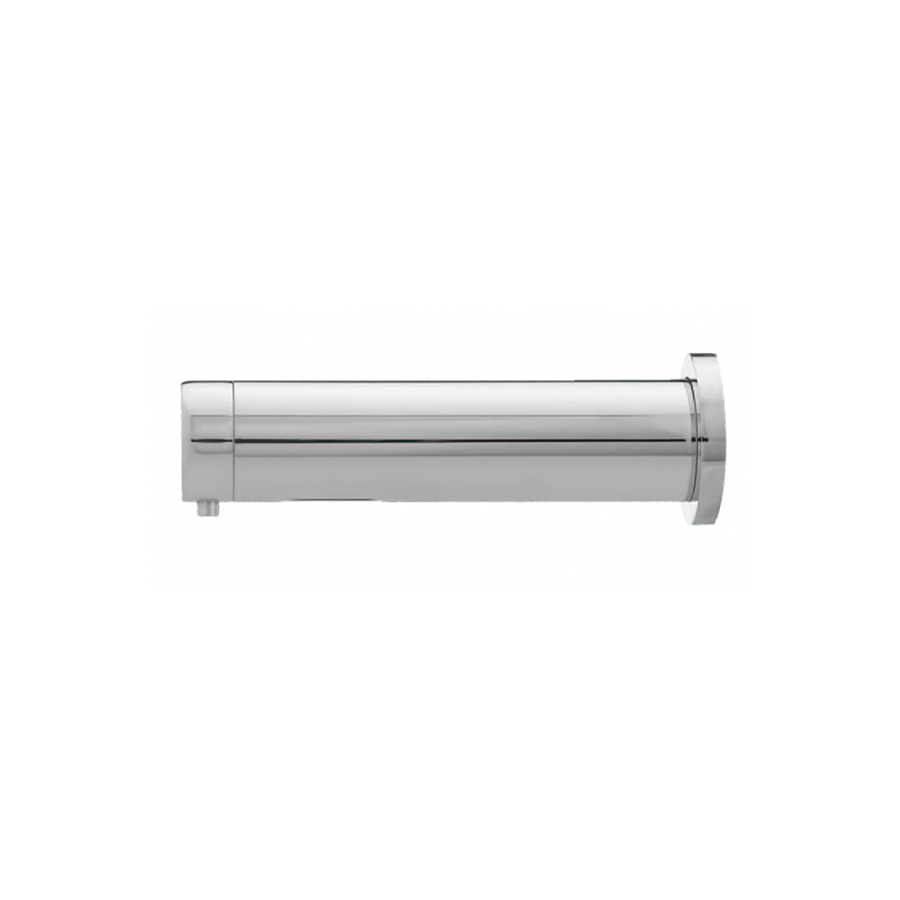

Electronic soap dispenser with sensor – Built-in application for washbasin or wall

This electronic soap dispenser is designed for hygienic and contactless dosing of liquid soap, lotion or antibacterial gel. The unit is equipped with an integrated LED sensor with an adjustable detection range of approx. 50 mm. Thanks to the dosing system, approx. 0.8 to 1.8 ml of soap is dispensed per activation.

The spout is made of solid chrome-plated brass and coupled to a refillable plastic soap container with a capacity of 1 liter. Suitable for liquids with a viscosity of 100–3500 mPa s.

This dispenser is designed for built-in application and can be integrated into:

• Washbasins (EXTREME)

• Wall installations (TUBULAR and QUADRAT)

Depending on the application, the soap dispenser is supplied with a transformer (220V/9V) or a battery holder (6 x 1.5V).

Dimensions (TUBULAR model):

• Length: 120 mm

• Spout length: 114 mm

This dispenser is ideal for modern sanitary areas where hygiene, aesthetics and reliability come together. The installation form (washbasin or wall) is determined based on the situation in which the dispenser is placed.
